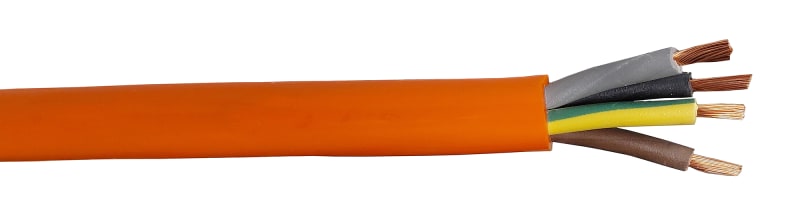

H07 BQ-F SUB4 4G6 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Resistant to micro-organisms, hydrolysis, UV radiation, ozone, oxygen, oils, grease, petrol, weather/wind and fresh/salt water.
Technical Specifications
- Manufacturer part number (MPN)
- 1021623
- EAN / GTIN
- 7070613073459
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1021623
- ETIM class
- EC003250 - Power cable < 1 kV, for moving application
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Italy
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 436 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 1000
- Nominal cross section conductor (mm²)
- 6
- Nominal voltage U0 (V)
- 600
- Nominal cross section conductor (AWG) (kcmil)
- 10
- Cable width approximate (mm)
- 15.7
- Cable height approximate (mm)
- 15.7
- Number of cores
- 4
- Weight (kg/km)
- 436
- Min. permitted bending radius, moving application with forced guidance (mm)
- 125.6
- Min. permitted bending radius, moving application/free movement (mm)
- 157
- Outer diameter approximate (mm)
- 15.7
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 125.6
- Permitted cable outer temperature during assembling/handling (°C)
- -40 to 90
- Permitted cable outer temperature after assembling without vibration (°C)
- -40 to 90
- With protective conductor
- Yes
- Low temperature resistant according to EN 60811-504+505+506
- Yes
- Halogen free according to EN IEC 60754-1
- Yes
- Halogen free according to EN IEC 60754-2
- Yes
- Oil resistant according to EN IEC 60811-404
- Yes
- Screen
- No
- Torsion resistant
- No
- Low smoke according to EN IEC 61034-2
- No
