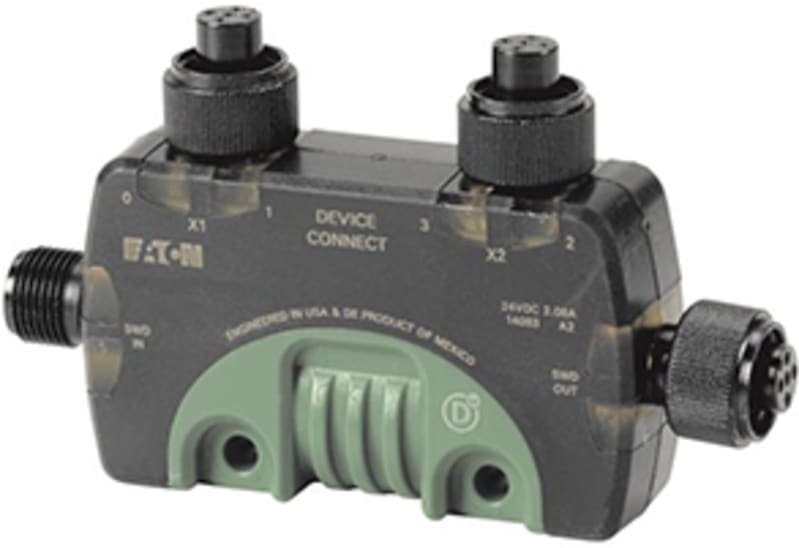

SmartWire-DT digital module 4 inputs

Eaton EU2E-SWD-4DX SmartWire-DT digital input module with four channels. M12 A-keyed connection, 2 MBit/s data rate, LED status indication for network and inputs.

Manufacturer part number (MPN)

EU2E-SWD-4DX

EAN / GTIN

4015081712120

Sales unit

pcs

Eaton catalogue number

174726

Depth

98 mm

Height

20.1 mm

Width

56.9 mm

Weight

0.085 kg

Certifications

UL; IEC/EN 61131-2; UL File No.: E170645; CSA

Constant acceleration

1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations

Constant amplitude

3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations

Drop and topple

50 mm Drop height, Drop to IEC/EN 60068-2-31

Height of fall (IEC/EN 60068-2-32) - max

0.3 m

Mounting position

As required

Shock resistance

30 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts

Air pressure

795 - 1080 hPa (operation)

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-3; Dry heat to IEC 60068-2-2

Environmental conditions

Condensation: permissible

Operating temperature - max

70 °C

Operating temperature - min

-25 °C

Relative humidity

5 - 95 % (non-condensing, IEC/EN 60068-2-30)

Connection to SmartWire-DT

Yes

Connection type

SWD-IN : M12 plug (A-keyed), 5 pole; 5-pin M12 socket (A-keyed)

Supply and I/O sensor; SWD-OUT

M12 socket (A-keyed), 5 pole

Data transfer rate

2 MBit/s, SmartWire-DT; Setting automatically

LED indicator

Status indication of SmartWire-DT network: Green LED; Status indication of input: Yellow LED

Protocol

Other bus systems

Station

SmartWire-DT slave, SmartWire-DT network

Static heat dissipation, non-current-dependent Pvs

1.7 W

Input current

4 mA (at 24 V DC, Digital inputs)

Input current at signal 1

4 mA

Power loss

1.7 W

Supply voltage at DC - max

28.8 VDC

Air discharge

8 kV, according to IEC 61131-2, level 3, ESD

Burst impulse

1 kV, Signal cable, according to IEC/EN 61131-2, Level 3; 2 kV, Supply cable, according to IEC/EN 61131-2, Level 3; 1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3

Contact discharge

4 kV, according to IEC/EN 61131-2, Level 2, ESD

Electromagnetic fields

1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008); 3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008); 10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)

Radiated RFI

10 V (IEC/EN 61131-2:2008, Level 3)

Radio interference class

Class A (EN 55011)

Surge rating

0.5 kV, Surge power cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC; 1 kV, Surge I/O cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC

Electric connection type

Screw connection

Features

Fieldbus connection over separate bus coupler possible; Short-circuit protection (sensor supply); Overload protection (sensor supply); Fieldbus connection over separate bus coupler possible

Functions

For connection of digital I/O signals

Current consumption

70 mA, Max. current consumption per M12 I/O plug, Sensor supply, SmartWire-DT network; 72 mA, SmartWire-DT network, 24 V, without sensor and without I/O supply

Degree of protection

IP69K

Mounting method

DIN rail; Screw fixing (M4); Mounting section (Clip M20); Wall mounting/direct mounting; Rail mounting possible

Overvoltage category

II

Pollution degree

3

Product category

SmartWire-DT slave

Type

Digital modules

Voltage type

DC

Input delay

< 0.2 ms

Limit value type 1

Low: < 5 V DC; High: > 15 V DC

Number of inputs (digital)

4

Number of outputs (digital)

0

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Input to input: no; Inputs for SmartWire-DT: no

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

0–28.8 V

Number of digital inputs

4

Digital inputs configurable

No

Digital outputs configurable

No

Permitted voltage at input

20.4–28.8 V

Type of voltage (input voltage)

DC

Type of digital output

None

Permitted voltage at output

20.4–28.8 V

Type of output voltage

DC

Short-circuit protection, outputs available

No

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Time delay at signal change

0–0.2 ms

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

Yes

Front built-in possible

No

Rack-assembly possible

No

Suitable for safety functions

No

HS Code

8538.90

• EAN 4015081712120
• SAP 1000799412
• Code 81439263
