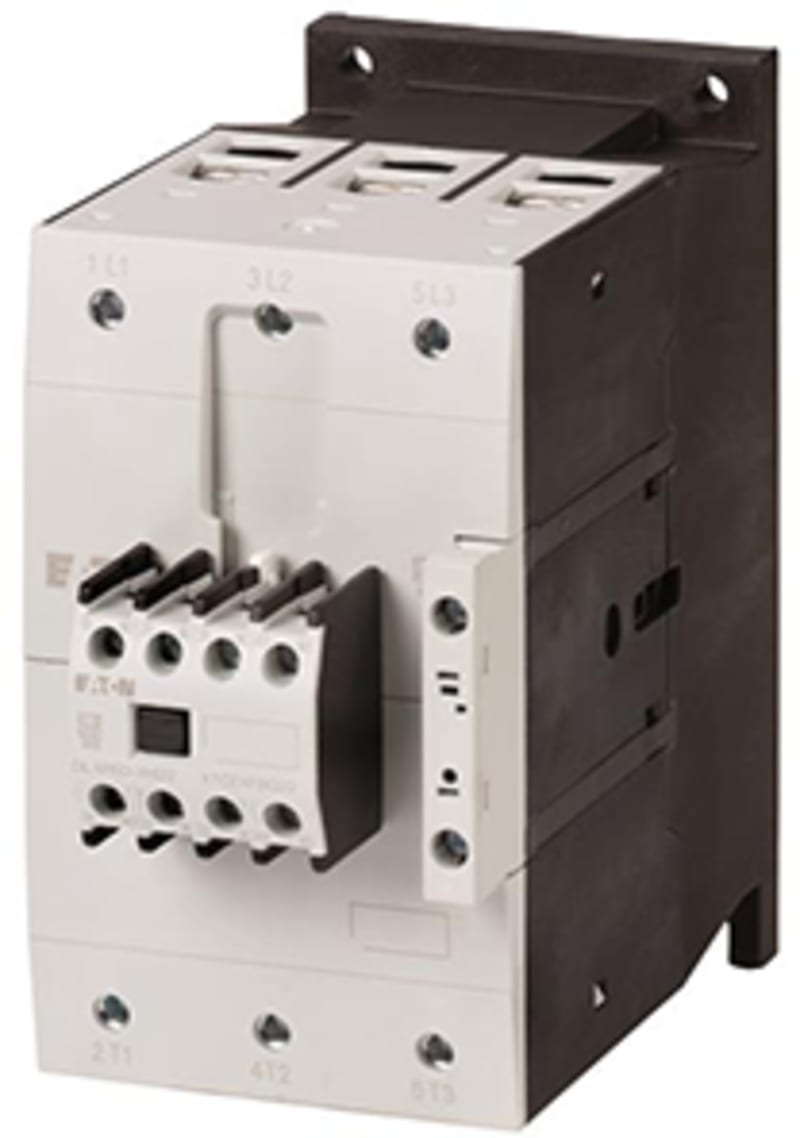

Contactor, DILM95-22(230V50HZ) (DILM95-22(230V50HZ,240V60HZ))

Eaton DILM95-22(230V50HZ,240V60HZ) Contactor, 400V 45 kW, 2 N/O, 2 NC, 230 V 50 Hz, 240 V 60 Hz,.

Manufacturer part number (MPN)

DILM95-22(230V50HZ,240V60HZ)

EAN / GTIN

4015082395278

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

239527

Depth

175 mm

Height

170 mm

Width

90 mm

Weight

2.22 kg

Certifications

UL Listed; CSA; CSA-C22.2 No. 60947-4-1-14; CSA Class No.: 2411-03

3211-04; IEC/EN 60947; UL Category Control No.

NLDX; CE; CSA File No.: 012528; UL 60947-4-1; UL File No.: E29096; UL; VDE 0660; IEC/EN 60947-4-1

Catalog Notes

Contacts according to EN 50012

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Number of main contacts (normally open contact)

3

Number of auxiliary contacts (normally closed contacts)

2

Number of auxiliary contacts (normally open contacts)

2

Number of contacts (normally closed contacts)

2

Number of contacts (normally open contacts)

2

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

250 A

Conventional thermal current Ith (3-pole, enclosed)

100 A

Conventional thermal current Ith at 55°C (3-pole, open)

115 A

Conventional thermal current Ith at 60°C (3-pole, open)

110 A

Conventional thermal current Ith of main contacts (1-pole, open)

275 A

Equipment heat dissipation, current-dependent Pvid

12.6 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

4.2 W

Rated operational current for specified heat dissipation (In)

95 A

Static heat dissipation, non-current-dependent Pvs

5.8 W

Rated breaking capacity at 220/230 V

950 A

Rated breaking capacity at 380/400 V

950 A

Rated breaking capacity at 500 V

950 A

Rated breaking capacity at 660/690 V

800 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

1330 A

Rated operational current (Ie) at AC-1, 380 V, 400 V

415 V

130 A

Rated operational current (Ie) at AC-3, 220 V, 230 V

240 V

95 A

Rated operational current (Ie) at AC-3, 380 V, 400 V

415 V

95 A

Rated operational current (Ie) at AC-3

440 V

95 A

Rated operational current (Ie) at AC-3

500 V

95 A

Rated operational current (Ie) at AC-3, 660 V

690 V

80 A

Rated operational current (Ie) at AC-4, 220 V, 230 V

240 V

50 A

Rated operational current (Ie) at AC-4

440 V

50 A

Rated operational current (Ie) at AC-4

500 V

50 A

Rated operational current (Ie) at AC-4, 660 V

690 V

37 A

Rated operational current (Ie) at DC-1

110 V

110 A

Rated operational current (Ie) at DC-1

220 V

70 A

Rated operational current (Ie) at DC-1

60 V

110 A

Rated operational power at AC-3, 240 V

50 Hz

32 kW

Rated operational power at AC-3, 380/400 V

50 Hz

45 kW

Rated operational power at AC-3, 415 V

50 Hz

57 kW

Rated operational power at AC-3, 440 V

50 Hz

60 kW

Rated operational power at AC-3, 500 V

50 Hz

70 kW

Rated operational power at AC-3, 690 V

50 Hz

75 kW

Rated operational power at AC-4, 220/230 V

50 Hz

16 kW

Rated operational power at AC-4, 240 V

50 Hz

17 kW

Rated operational power at AC-4, 415 V

50 Hz

30 kW

Rated operational power at AC-4, 440 V

Rated operational power at AC-4, 500 V

50 Hz

36 kW

Rated operational power at AC-4, 660/690 V

50 Hz

35 kW

Rated operational voltage (Ue) at AC - max

690 V

Emitted interference

According to EN 60947-1

Interference immunity

According to EN 60947-1

Fitted with

Mirror contact

Number of poles

Three-pole

Application

Contactors for Motors

Connection

Screw terminals

Degree of protection

IP00

Lifespan, mechanical

10,000,000 Operations (AC operated); 7,000,000 Operations (Coil 50/60 Hz)

Operating frequency

3600 mechanical Operations/h (AC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Residual current

1 mA (with actuation of A1 - A2 by the electronics with "0" signal)

Resistance per pole

0.6 mΩ

Suitable for

Also motors with efficiency class IE3

Utilization category

AC-3: Normal AC induction motors: starting, switch off during running

Voltage type

AC

Arcing time

15 ms

Drop-out voltage

AC operated: 0.6 - 0.3 x UC, AC operated

Duty factor

100 %

Pick-up voltage

0.8 - 1.1 V AC x Uc

Power consumption, pick-up

50 Hz

310 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz

Power consumption, pick-up

60 Hz

345 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Power consumption, sealing

HS Code

8536.90

• EAN 4015082395278
• SAP 1000288748
• Code 8297102
