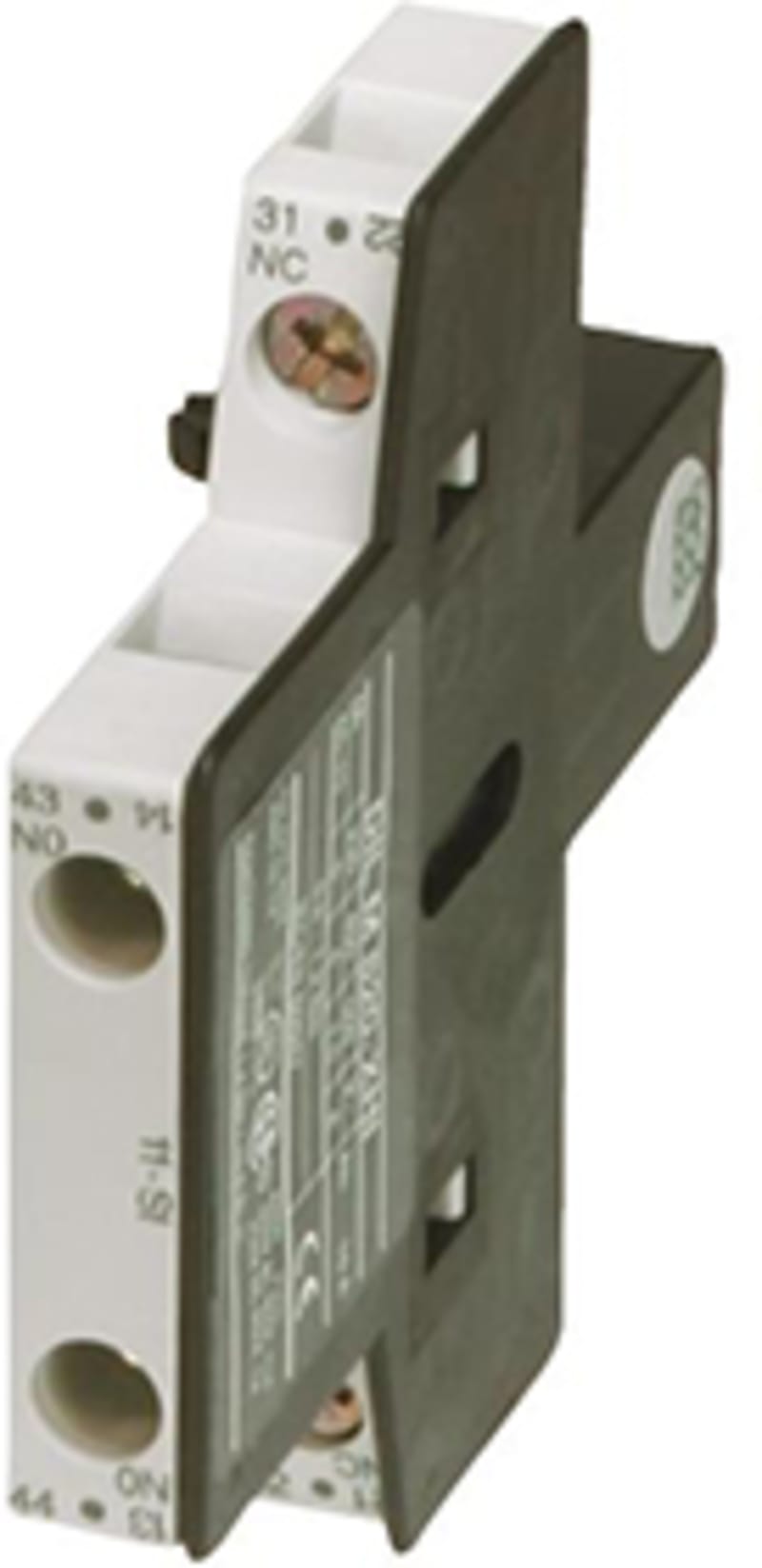

Eaton DILMT95-XHI11-SR Auxiliary Contact Module, 2-Pole 1 N/O 1 NC
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton DILMT95-XHI11-SR Auxiliary Contact Module, 2-Pole 1 N/O 1 NC is listed under Electrical Components / Contactor Accessories. Sales unit: pcs; Eaton catalogue number: 190974; Depth: 76.5 mm; Height: 15 mm; Width: 76.5 mm; Weight: 0.055 kg.
Technical Specifications
- Manufacturer part number (MPN)
- DILMT95-XHI11-SR
- EAN / GTIN
- 4015081911974
- Sales unit
- pcs
- Eaton catalogue number
- 190974
- Depth
- 76.5 mm
- Height
- 15 mm
- Width
- 76.5 mm
- Weight
- 0.055 kg
- Certifications
- IEC/EN 60947
- Ambient operating temperature - max
- 55 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Ambient storage temperature - min
- -40 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally closed contacts)
- 1
- Number of contacts (normally open contacts)
- 1
- Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
- 4 A
- Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
- 1.9 A
- Electric connection type
- Screw connection
- Functions
- For standard applications
- Number of poles
- Two-pole
- Model
- Top mounting
- Mounting method
- Side mounting
- Used with
- DILMT
- Screwdriver size
- 2, Terminal screw, Pozidriv screwdriver
- Terminal capacity (flexible with ferrule)
- 1 x (0.75 - 2.5) mm²
- Terminal capacity (solid)
- 1 x (0.75 - 2.5) mm², Screw terminals
- Tightening torque
- 1.2 Nm, Screw terminals
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4015081911974
- SAP 1200520056
- Code 82663178
Product Documentation
