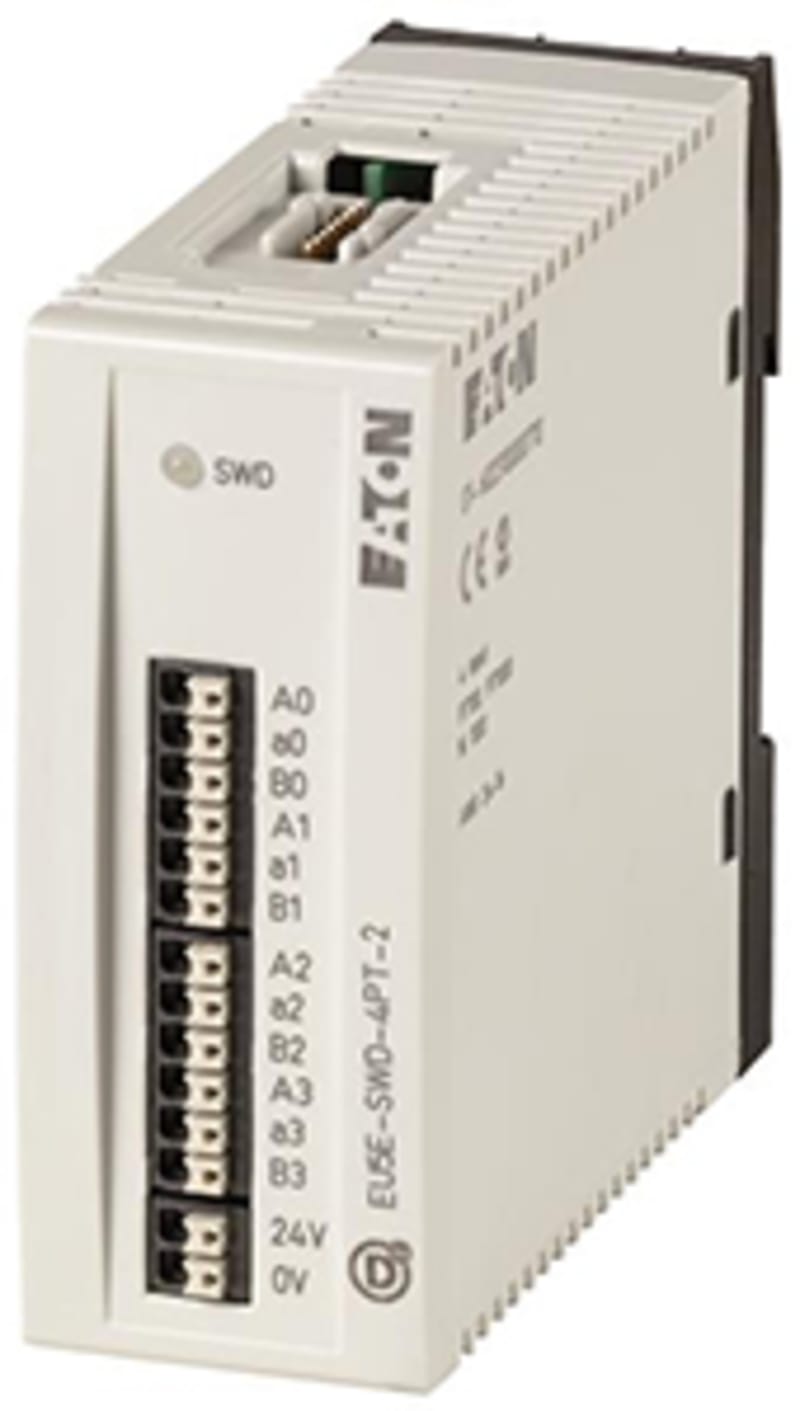

Input module temperature

Eaton 172560 EU5E-SWD-4PT-2.

Manufacturer part number (MPN)

172560

EAN / GTIN

4015081691050

Sales unit

pcs

Eaton catalogue number

172560

Depth

102 mm

Height

90 mm

Width

35 mm

Weight

0.16 kg

Certifications

CSA File No.: 2324643; CSA Class No.: 3211-07; UL File No.: E29184; IEC/EN 61131-2; UL; UL Category Control No.: NKCR; CSA

Constant acceleration

1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations

Constant amplitude

3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations

Drop and topple

50 mm Drop height, Drop to IEC/EN 60068-2-31

Height of fall (IEC/EN 60068-2-32) - max

0.3 m

Mounting position

As required

Shock resistance

15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts

Air pressure

795 - 1080 hPa (operation)

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-3; Dry heat to IEC 60068-2-2

Environmental conditions

Condensation: prevent with appropriate measures

Operating temperature - max

55 °C

Operating temperature - min

-100 °C

Relative humidity

5 - 95 % (non-condensing, IEC/EN 60068-2-30)

Connection to SmartWire-DT

Yes

Connection type

Pin contact, 8 pole; Push in terminals

Supply and I/O sensor; Connector

external device plug SWD4-8SF2-5, SmartWire-DT

Data transfer rate

Setting automatically; 250 kBit/s, SmartWire-DT

LED indicator

Status indication of SmartWire-DT network: Green LED

Protocol

Other bus systems

Station

SmartWire-DT slave, SmartWire-DT network

Static heat dissipation, non-current-dependent Pvs

0.6 W

Power loss

0.6 W

Rated operational voltage

24 V DC (-15 %/+ 20 % - power supply)

Air discharge

8 kV, according to IEC 61131-2, level 3, ESD

Burst impulse

2 kV, Signal cable, according to IEC/EN 61131-2, Level 3; 2 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3; 2 kV, Supply cable, according to IEC/EN 61131-2, Level 3

Contact discharge

4 kV, according to IEC/EN 61131-2, Level 2, ESD

Electromagnetic fields

10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008); 1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008); 3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)

Radiated RFI

10 V (IEC/EN 61131-2:2008, Level 3)

Radio interference class

Class B (EN 55011)

Surge rating

1 kV, Surge I/O cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC; 1 kV, Surge power cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC

Electric connection type

Flat plug-in connection

Features

Fieldbus connection over separate bus coupler possible; Analog outputs configurable; Input, resistance thermometer; Analog inputs configurable; Fieldbus connection over separate bus coupler possible

Fitted with

Temperature sensors PT100, PT1000 and Ni1000; Display mode for temperatures (°C, °F, raw value)

Functions

Adjustable parameter settings; For connection of analog I/O signals

Current consumption

22 mA, SmartWire-DT network

Degree of protection

IP20; NEMA 1

Mounting method

Rail mounting possible; Wall mounting/direct mounting; Top-hat rail fixing (according to IEC/EN 60715, 35 mm)

Overvoltage category

II

Pollution degree

2

Product category

SmartWire-DT slave

Repetition accuracy

0.5 % (Temperature inputs)

Residual ripple

≤ 5 % (input voltage)

Terminal capacity

0.25 - 1.5 mm² (24 - 16 AWG), flexible with ferrule, Terminal for I/O sensor; 0.2 - 1.5 mm² (AWG 24 - 16), solid, Terminal for I/O sensor

Type

Analog modules

Voltage type

DC

Conversions

250 ms, Temperature inputs

Input

Inputs, configurable (PT100, PT1000, Ni1000)

Number of inputs (analog)

4

Number of outputs (analog)

0

Resolution

0.1 °C, Temperature inputs

Total error

± 1 %, Temperature Inputs

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Inputs for SmartWire-DT: yes

Protection against polarity reversal

Yes

Power consumption

0.6 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Input, current

No

Input, voltage

No

Input, resistor

No

Input, resistance thermometer

Yes

Input, thermocouple

No

Input signal, configurable

No

Resolution of the analogue inputs

12 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Number of analogue inputs

4

Analogue inputs configurable

Yes

Analogue outputs configurable

Yes

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

HS Code

8538.90
