Eaton FRCMM-125/4/05-A (171177)

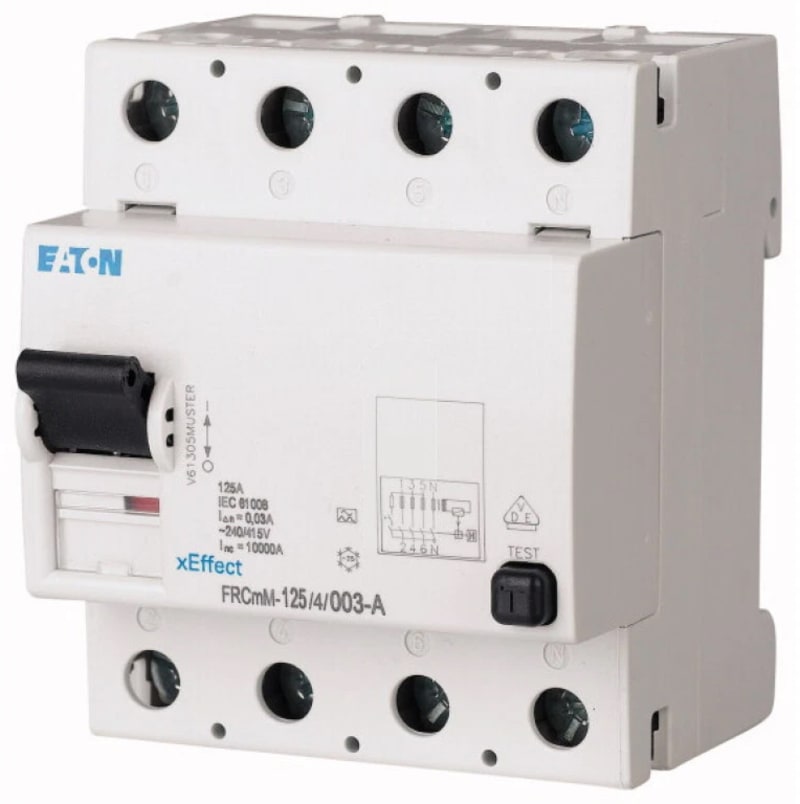

Eaton 171177 Residual current circuit breaker (RCCB), 125A, 4p, 500mA, type A.

Manufacturer part number (MPN)

171177

EAN / GTIN

4015081676590

HS code

8536.90

Sales unit

pcs

Package quantity

30 pcs

Eaton catalogue number

171177

Depth

76 mm

Height

80 mm

Width

70 mm

Weight

0.41 kg

Compliances

RoHS conform

Certifications

IEC/EN 61008

Features

Residual current circuit breaker; Additional equipment possible

Fitted with

Interlocking device

Special features

Current test marks as per inscription Maximum operating temperature is 60 °C: Starting at 40 °C, the max. permissible continuous current decreases by 2.2% for every 1 °C

Used with

Residual current circuit breakers; Type A; FRCmM-125

Amperage Rating

125 A

Application

Switchgear for industrial and advanced commercial applications xEffect - Switchgear for industrial and advanced commercial applications

Fault current rating

500 mA

Impulse withstand current

250 A (8/20 μs) surge-proof; Partly surge-proof 250 A

Number of poles

Four-pole

Rated short-circuit strength

10 kA with back-up fuse

Sensitivity type

Pulse-current sensitive

Tripping time

Non-delayed

Type

FRCmM-125 Residual current circuit breakers Type A

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

22.5 W

Heat dissipation capacity

0 W

Heat dissipation per pole, current-dependent

0 W

Rated operational current for specified heat dissipation (In)

125 A

Static heat dissipation, non-current-dependent

0 W

Admissible back-up fuse overload - max

80 A gG/gL

Frequency rating

50 Hz

Leakage current type

A

Lifespan, electrical

4000 operations

Pollution degree

2

Rated fault current - max

0.5 A

Rated fault current - min

0.5 A

Rated impulse withstand voltage (Uimp)

4 kV

Rated insulation voltage (Ui)

440 V

Rated operational voltage (Ue) - max

415 V

Rated residual making and breaking capacity

1250 A

Rated short-time withstand current (Icw)

10 kA

Short-circuit rating

125 A (max. admissible back-up fuse)

Surge current capacity

0.25 kA

Test circuit range

184 V AC - 440 V AC

Voltage rating (IEC/EN 60947-2)

240 V AC / 415 V AC

Built-in depth

70.5 mm

Built-in width (number of units)

70 mm (4 SU)

Busbar material thickness

0.8 mm - 2 mm

Climatic proofing

25-55 °C / 90-95% relative humidity according to IEC 60068-2

Connectable conductor cross section (multi-wired) - max

16 mm²

Connectable conductor cross section (multi-wired) - min

1.5 mm²

Connectable conductor cross section (solid-core) - max

50 mm²

Connectable conductor cross section (solid-core) - min

1.5 mm²

Contact position indicator color

Red / green

Degree of protection

IP20, IP40 with suitable enclosure; IP20

Frame

45 mm

Lifespan, mechanical

10000 operations

Mounting Method

DIN rail; Quick attachment for DIN-rail EN 50022

Mounting position

As required

Permitted storage and transport temperature - max

60 °C

Permitted storage and transport temperature - min

-25 °C

Status indication

Toggle-center postition

Terminal capacity (solid wire)

1.5 mm² - 16 mm² (2x); 1.5 mm² - 50 mm²

Terminal capacity (stranded cable)

1.5 mm² - 16 mm² (2x); 1.5 mm² - 5 mm²

Terminal protection

Finger and hand touch safe, DGUV VS3, EN 50274

Terminals (top and bottom)

Twin-purpose terminals

Width in number of modular spacings

4

HS Code

8536.90

• EAN 4015081676590
• SAP 1200282417
• Code 82252773
