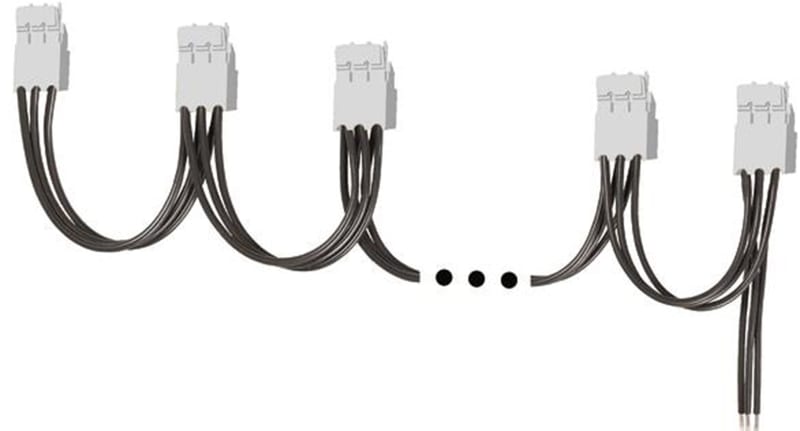

Eaton EMS2-XBR-Z-4 Three-Phase Connector with Plug 4-Way
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton EMS2-XBR-Z-4 is a three-phase current connector with plug for use with EMS2-D, EMS2-D-SWD and EMS-R electronic motor starters. The connecting cable links up to four devices to a common three-phase supply. Rated operational current is 25 A with screw-terminal connection and a 2.5 mm squared conductor cross-section. Ambient operating range is -25 to 70 degrees Celsius. Certified to UL 60947-4-1 and CSA C22.2 No. 60947-4-1-14.
Technical Specifications
- Manufacturer part number (MPN)
- EMS2-XBR-Z-4
- EAN / GTIN
- 4015080896159
- Sales unit
- pcs
- Eaton catalogue number
- 197174
- Depth
- 114.5 mm
- Height
- 114.5 mm
- Width
- 22.5 mm
- Weight
- 0.205 kg
- Certifications
- UL 60947-4-1; CSA-C22.2 No. 60947-4-1-14; CE marking; UL Category Control No.: NLDX
- NLDX7; UL File No.
- E338590; UL Listed; Certified by UL for use in Canada; UL report applies to both US and Canada
- Catalog Notes
- Conductor cross-section: 2.5 mm²
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Rated operational current for specified heat dissipation (In)
- 25 A
- Number of poles
- Three-pole
- Accessory/spare part type
- Connecting cable
- Connection type
- Screw terminals
- Product category
- Accessories Electronic motor starter
- Type
- Three-phase current connector with plug
- Used with
- 4 devices can be connected
- Type of accessory/spare part
- Connecting cable
- Accessory
- Yes
- Spare part
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015080896159
- SAP 1200527033
- Code 82936420
