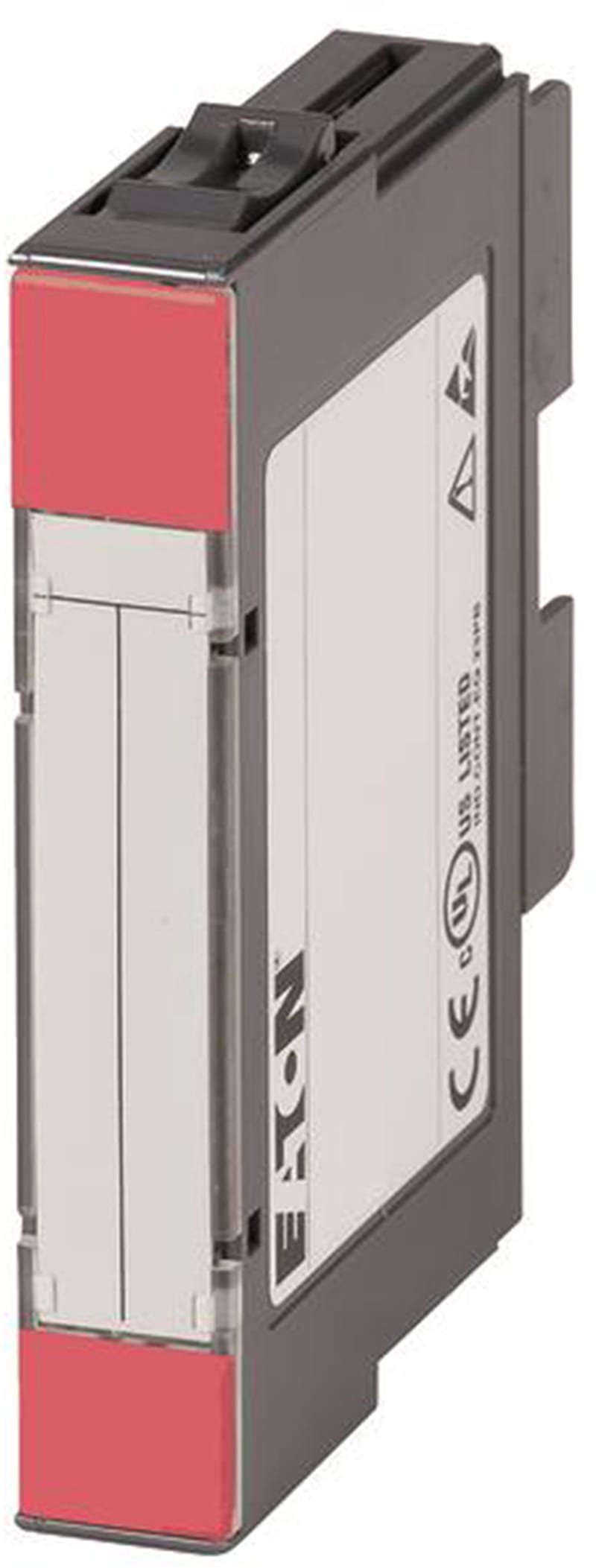

IO module XI/ON 120/230V 2DO

Eaton XN-2DO-120/230VAC-0.5A XN-2DO-120/230VAC-0.5A.

Manufacturer part number (MPN)

XN-2DO-120/230VAC-0.5A

EAN / GTIN

7640130120198

Sales unit

pcs

Eaton catalogue number

140150

Depth

55.4 mm

Height

74.1 mm

Width

12.6 mm

Weight

0.035 kg

Certifications

UL 508; IEC/EN 61000-6-4; Certified by UL for use in Canada; cULus; UL Recognized; CE; IEC/EN 61131-2; IEC/EN 61000-6-2; UL File No.: E205091; UL report applies to both US and Canada; CSA Class No.: 2252-01

2252-81; CSA-C22.2 No. 142; UL Category Control No.

NRAQ, NRAQ7; IEC/EN 6113-2

Catalog Notes

8 (1 period at 60 Hz)

Drop and topple

According to IEC 60068-2-31, free fall according to IEC 60068-2-32

Shock resistance

Mechanical, According to IEC/EN 60068-2-27; Continuous according to IEC/EN 60068-2-29

Vibration resistance

According to IEC/EN 60068-2-6

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

0 °C

Ambient storage temperature - min

-25 °C

Environmental conditions

Harmful gasses - H2S: 1 ppm (relative humidity < 75%, no condensation); Harmful gasses - SO2: 10 ppm (relative humidity < 75%, no condensation)

Relative humidity

5 - 95 % (indoor, Level RH-2, non-condensing for storage at 45°C)

Interfaces

Terminating resistor: 240 - 6,000 Ω (at 120 V AC); Terminating resistor: 460 - 11,500 Ω (at 230 V AC)

Protocol

Other bus systems

Static heat dissipation, non-current-dependent Pvs

1 W

Power loss

1 W

Rated operational voltage

120/230 V AC at 45-64 Hz (supply terminal)

Supply voltage at AC

50 Hz - max

253 VAC

Supply voltage at AC

50 Hz - min

102 VAC

Air discharge

According to EN 61100-4-2

Burst impulse

According to IEC/EN 61000-4-4

Contact discharge

According to EN 61100-4-2

Electromagnetic fields

According to IEC EN 61100-4-2

Emitted interference

30 - 230 MHz (radiated, high frequency, according to EN 55016-2-3); 230 - 1000 MHz (radiated, high frequency, according to EN 55016-2-3)

Radiated RFI

IEC/EN 61100-4-6

Surge rating

According to IEC/EN 61000-4-5 Level 4

Voltage dips

According to EN 61131-2 (Voltage fluctuations/voltage dips)

Electric connection type

Screw-/spring clamp connection

Features

Fieldbus connection over separate bus coupler possible

Fitted with

Connectable sensors for inductive loads; Connectable sensors for lamp loads; Connectable sensors for resistive loads

Current consumption

35 mA, from module bus, Analog input modules

Degree of protection

IP20

Mounting method

Rail mounting possible

Product category

XN Slice module

Suitable for

Base modules with C-connection: 2-wire/3-wire; Base modules with C-connection: 4-wire

Type

XI/ON I/O module

Used with

XN-S3T-SBC; XN-S3S-SBC; XN-S4S-SBCS; XN-S4T-SBCS

Voltage type

AC

Number of channels

2

Delay time

T/2 +1 ms, Digital outputs, Delay on signal change and resistive load, from Low to High signal; 300, Digital outputs, Delay on signal change and resistive load, from High to Low signal

Input voltage

> U low level - 2 V (Digital inputs, high level)

Number of inputs (digital)

0

Number of outputs (digital)

2

Output

2 Digital Outputs (120/230 V AC, 0.5 A)

Output current

1 A, Module total current, Digital outputs; 0.5 A; 0.02 - 0.5 A (high level, permissible range); < 1.5 mA (low level)

Output voltage

> U low level - 2 V (zero-point switching triac)

Utilization factor

100 %; 100 % (observe derating)

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Through optocoupler: yes

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage AC 50 Hz

102–253 V

Supply voltage AC 60 Hz

102–253 V

Number of digital outputs

2

Digital inputs configurable

No

Digital outputs configurable

No

Type of voltage (input voltage)

AC

Type of digital output

Triac

Permitted voltage at output

0–251 V

Type of output voltage

AC

Short-circuit protection, outputs available

No

Number of HW-interfaces other

1

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

Yes

Supporting protocol for CAN

Yes

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

Yes

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Type of electric connection

Plug-in connection

Time delay at signal change

0–11 ms

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

No

Suitable for safety functions

No

HS Code

8538.90
