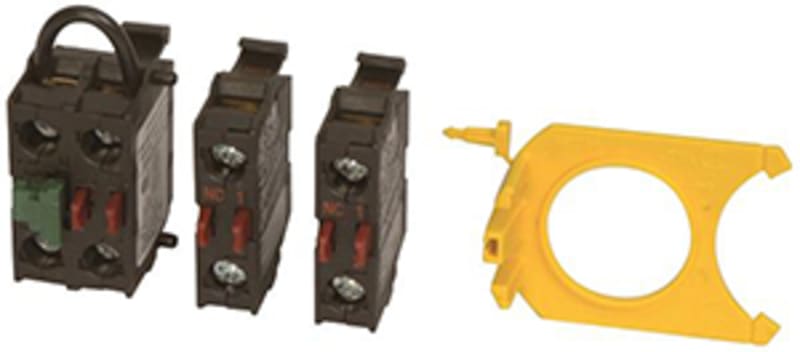

Contact element, RMQ (M22-KC03SMC10)

Eaton Contact element, RMQ (M22-KC03SMC10) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 173028; Depth: 40.2 mm; Height: 34 mm; Width: 47 mm; Weight: 0.044 kg.

Manufacturer part number (MPN)

M22-KC03SMC10

EAN / GTIN

4015081696192

Sales unit

pcs

Eaton catalogue number

173028

Depth

40.2 mm

Height

34 mm

Width

47 mm

Weight

0.044 kg

Certifications

UL; UL File No.: E340491; CSA; CSA-C22.2 No. 14-05; IEC 60947-5-1; CE; IEC/EN 60947-5; CSA Class No.: 3211-03; CSA File No.: 012528_C_000; CSA-C22.2 No. 94-91; UL 508; UL Category Control No.: NISD

Catalog Notes

Contacts with safety function, by positive opening to IEC/EN 60947-5-1

Actuating force - max

15 N

Knob travel

5.7 mm

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No

Force for positive opening - min

45 N

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

3

Number of contacts (normally open contacts)

1

Heat dissipation per pole, current-dependent Pvid

0.11 W

Rated operational current for specified heat dissipation (In)

6 A

Rated insulation voltage (Ui)

500 V

Rated operational current (Ie) at AC-15, 115 V

6 A

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

6 A

Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V

4 A

Rated operational current (Ie) at AC-15, 500 V

2 A

Rated operational current (Ie) at DC-13, 110 V

0.6 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.3 A

Rated operational current (Ie) at DC-13, 24 V

3 A

Rated operational current (Ie) at DC-13, 42 V

1.7 A

Rated operational current (Ie) at DC-13, 500 V

0.1 A

Rated operational current (Ie) at DC-13, 60 V

1.2 A

Electric connection type

Screw connection

Degree of protection

IP20

Model

Top mounting

Operating torque

0.8 Nm

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp)

6000 V AC

Connection type

Base fixing

Mounting method

Base

Rated conditional short-circuit current (Iq)

1 kA

Short-circuit protection

PKZM0-10/FAZ-B6/1, Contacts, Max. short-circuit protective device, Fuseless

Short-circuit protection rating

Max. 10 A gG/gL, Fuse, Contacts

Terminal capacity (flexible with ferrule)

0.5 - 1.5 mm²

Terminal capacity (solid)

0.75 - 2.5 mm²

Terminal capacity (stranded)

0.5 - 2.5 mm²

Country of origin

Germany

HS Code

8536.50
