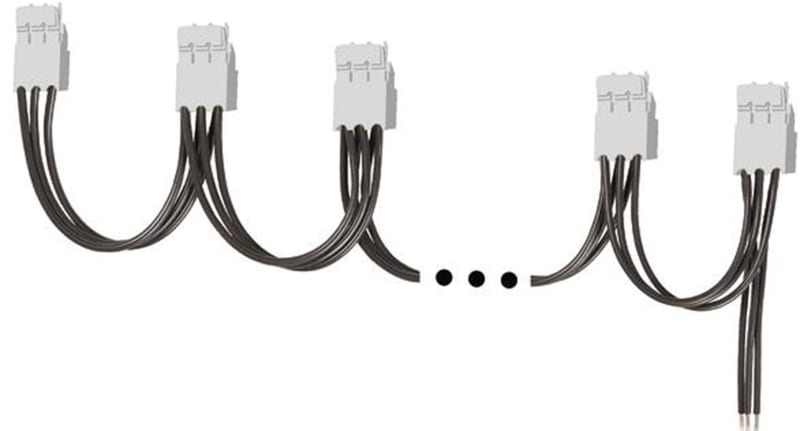

Eaton EMS2-XBR-T-5 3-Phase Current Connector with Plug
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton EMS2-XBR-T-5 is a 3-phase current connector with plug for use with the EMS2 motor-starter platform, linking up to 5 devices via push-in terminals. Rated operational current 25 A at 2.5 mm2 conductor cross-section; three-pole configuration. Certified to UL 60947-4-1, CSA C22.2 No. 60947-4-1-14, and CE marking.
Technical Specifications
- Manufacturer part number (MPN)
- EMS2-XBR-T-5
- EAN / GTIN
- 4015080896203
- Sales unit
- pcs
- Eaton catalogue number
- 197179
- Depth
- 114.5 mm
- Height
- 114.5 mm
- Width
- 22.5 mm
- Weight
- 0.225 kg
- Certifications
- UL 60947-4-1; CSA-C22.2 No. 60947-4-1-14; CE marking; UL Category Control No.: NLDX
- NLDX7; UL File No.
- E338590; UL Listed; Certified by UL for use in Canada; UL report applies to both US and Canada
- Catalog Notes
- Conductor cross-section: 2.5 mm²
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Rated operational current for specified heat dissipation (In)
- 25 A
- Number of poles
- Three-pole
- Accessory/spare part type
- Connecting cable
- Connection type
- Push in terminals
- Product category
- Accessories Electronic motor starter
- Type
- Three-phase current connector with plug
- Used with
- 5 devices can be connected
- Type of accessory/spare part
- Connecting cable
- Accessory
- Yes
- Spare part
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015080896203
- SAP 1200527020
- Code 82936438
Product Documentation
