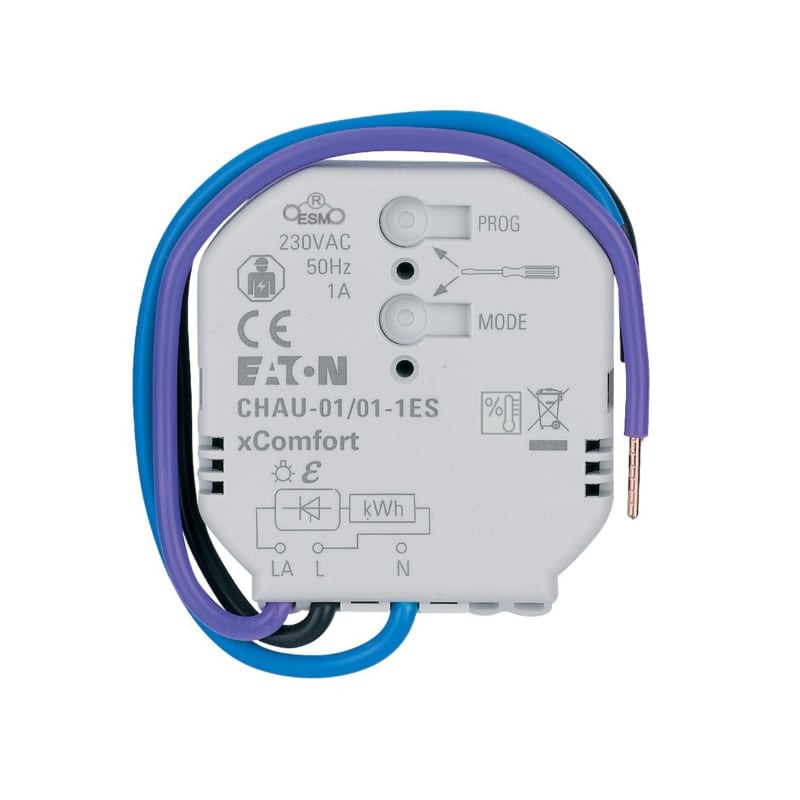

Eaton xComfort Heating Actuator 1 A Silent Flush-Mount EMS
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton CHAU-01/01-1ES is a flush-mount xComfort heating actuator with a single 1 A silent output for driving thermal-drive valves in radiator or underfloor heating loops. Operating on bidirectional radio frequency, it is addressed by the xComfort system for room-by-room temperature control, mounting in an installation box of at least 40 mm depth. The 65 x 65 x 18 mm module suits new build and retrofit residential heating projects.
Technical Specifications
- Manufacturer part number (MPN)
- CHAU-01/01-1ES
- EAN / GTIN
- 9010238054004
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Eaton catalogue number
- 194374
- Depth
- 65 mm
- Height
- 18 mm
- Width
- 65 mm
- Weight
- 0.039 kg
- Compliances
- RoHS conform
- Features
- Radio frequent bidirectional
- Bus system operating type
- Other; Radio frequent
- Actuation function
- Heating, valves
- Bus system product type
- Actuator
- Built-in installation box depth - min
- 40 mm
- Number of inputs (binary)
- 0
- Rated uninterrupted current (Iu) - max
- 1 A
- Fitted with
- Bus connection
- Switching voltage - max
- 253 V
- Switching voltage - min
- 196 V
- Width in number of modular spacings
- 3
- Power supply
- Mains
- Number of outputs
- 1
- Degree of protection
- IP20
- Output current - max
- 1 A
- Functions
- Correcting variable consistent
- Mounting method
- Flush mounting; Surface mounted (plaster)
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- Yes
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- Yes
- With bus connection
- Yes
- Bus module detachable
- No
- Correcting variable consistent
- Yes
- Correcting variable switching
- No
- Valve protection function
- No
- Manual switch
- No
- Max. switching current (resistive load)
- 1 A
- Max. output current
- 1 A
- Switching voltage
- 196–253 V
- Min. depth of built-in installation box
- 40 mm
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 9010238054004
- SAP 1200126818
- Code 81988117
