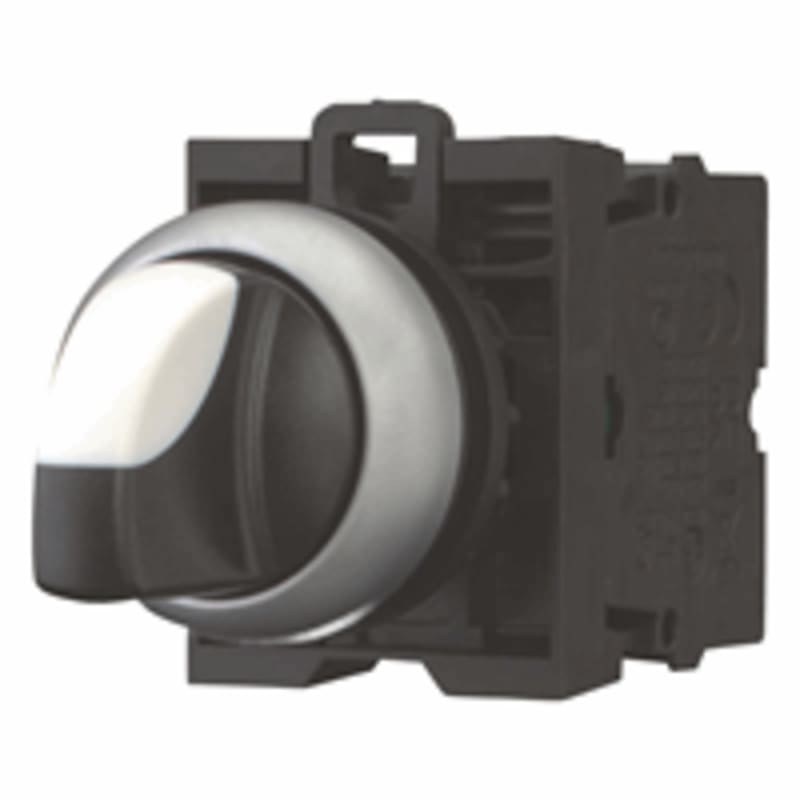

Eaton M22 Complete Rotary Switch 2S 1-0-2 Latched
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-WRK3/K20 complete rotary switch with two contacts in 1-0-2 latched positions. Part of the RMQ-Titan series with 22.5 mm mounting and IP66 / NEMA 12 protection, featuring a black actuator on a titanium bezel and screw connection. Rated for 100,000 mechanical operations.
Technical Specifications
- Manufacturer part number (MPN)
- M22-WRK3/K20
- EAN / GTIN
- 4015082165208
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216520
- Depth
- 130 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.037 kg
- Certifications
- UL; UL File No.: E29184; CSA File No.: 012528; IEC/EN 60947; CSA; CSA-C22.2 No. 14-05; CE; CSA Class No.: 3211-03; CSA-C22.2 No. 94-91; IEC/EN 60947-5; UL 508; UL Category Control No.: NKCR; VDE 0660; DNV; GL; LR
- Actuator color
- Black
- Actuator function
- Maintained; Switching function latching
- Actuator type
- Toggle
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- With thumb-grip; Classical
- Electric connection type
- Screw connection
- Fitted with
- Front ring
- Functions
- Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
- Number of switch positions
- 3
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- No
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Rated operational current for specified heat dissipation (In)
- 6 A
- Degree of protection
- IP66; NEMA 12
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 2000 Operations/h
- Operating torque
- 0.3 Nm
- Product Category
- RMQ-Titan
- Size
- Front diameter: 29.7 mm
- Switching angle
- 60 °
- Type
- Selector switch actuator
- Hole diameter
- 22 mm
- Colour button
- Black
- Suitable for lighting
- No
- Spring-return
- No
- Colour front ring
- Chrome
- Type of electric connection
- Screw connection
- With light source
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Type of control element
- Wing knob
- Switching function latching
- Yes
- Number of contacts as normally open contact
- 2
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082165208
- SAP 1000035172
- Code 8262881
Product Documentation
More from Eaton
Eaton

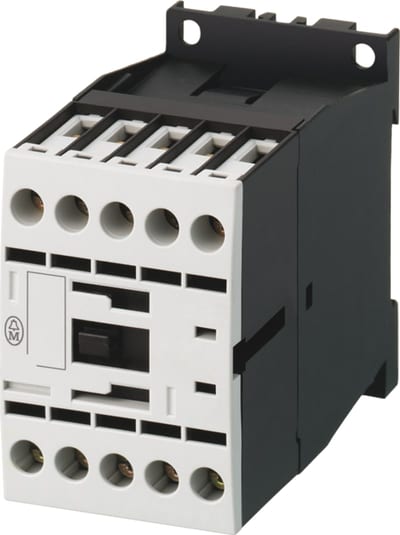

Contactor 7A AC-3 230V/240V AC (DILM7-10(230V50HZ,240V60HZ))
Eaton

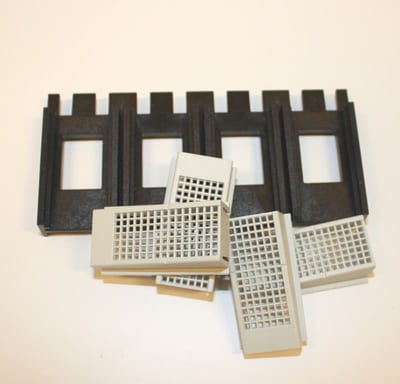

IP2X FOR Box Terminal 4 POLE. (NZM1-4-XIPK)
Eaton
Bridge Energy Control - with energy meter
EP-502626
Eaton

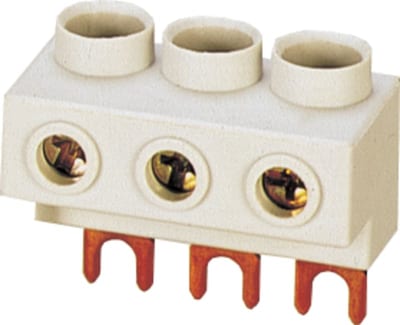

TILKOBL.TERMINAL CU with Sleeve
BK25/3-PKZ0
Eaton
KEY Switch 0-1 Fixed STILL.
M22-WRS
Eaton
Eaton FAZ-B25/3 Miniature Circuit Breaker — 3P, Type B, 25 A, 15 kA
Eaton
Eaton FAZ-B25/2 Miniature Circuit Breaker — 2P, Type B, 25 A, 15 kA
Eaton

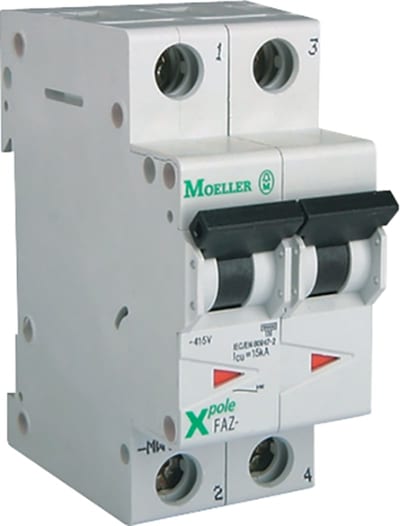

Eaton FAZ-C13/2 Miniature Circuit Breaker — 2P, Type C, 13 A, 15 kA
