Eaton
KEY Switch 0-1 Fixed STILL.
Part numberM22-WRSEAN / GTIN4015082168872HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

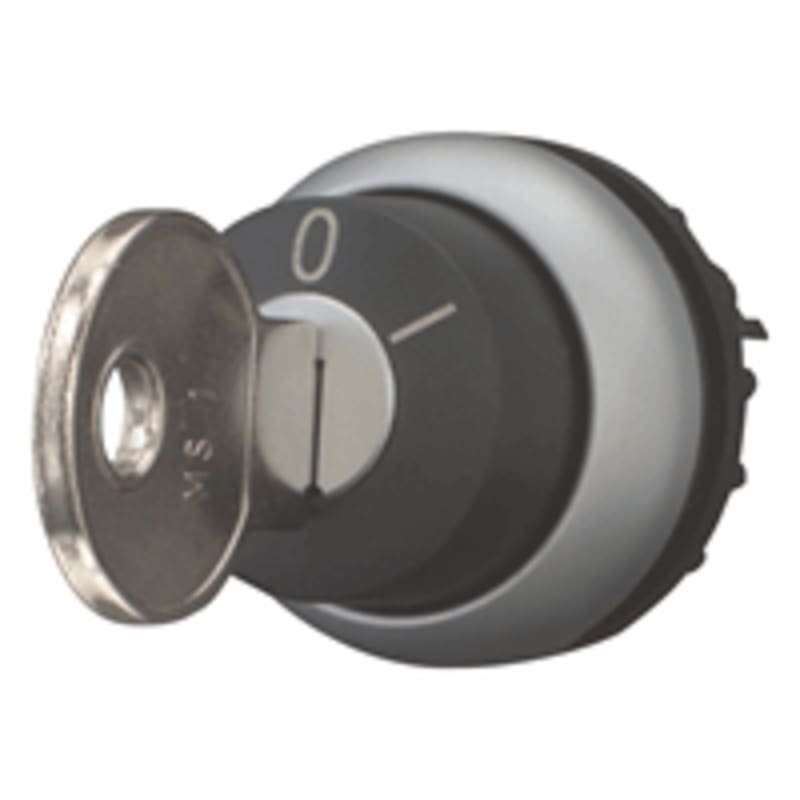

Eaton M22-WRS Key switch 0-1 Fixed Still.
Technical Specifications
- Manufacturer part number (MPN)
- M22-WRS
- EAN / GTIN
- 4015082168872
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216887
- Depth
- 70 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.031 kg
- Compliances
- CE Marked
- Certifications
- EN 60947-5; CSA Std. C22.2 No. 94-91; CSA Std. C22.2 No. 14-05; UL 508; IEC 60947-5; VDE; CSA-C22.2 No. 94-91; UL Category Control No.: NKCR; CSA-C22.2 No. 14-05; IEC/EN 60947; CE; CSA File No.: 012528; CSA Class No.: 3211-03; IEC/EN 60947-5; CSA; UL; VDE 0660; UL File No.: E29184; DNV; GL; LR
- Actuator color
- Black
- Actuator function
- Maintained; Switching function latching; Key withdrawable in position 0; Key withdrawable in position 1
- Actuator type
- Key
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Key operated; Classical
- Fitted with
- Front ring
- Functions
- Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
- Indicator color
- Other
- Lens type
- Round
- Number of switch positions
- 2
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- Yes; With SWD-RMQ connections
- Accessories
- 1 key included with supplied equipment.
- Degree of protection
- NEMA 4X, 13
- Degree of protection (front side)
- IP66
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 100 Operations/h
- Operating torque
- 0.5 Nm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Size
- Front diameter: 29.7 mm
- Switching angle
- 60 °
- Type
- Key-operated button
- Hole diameter
- 22.5 mm
- Suitable for lighting
- No
- Spring-return
- No
- Degree of protection (IP), front side
- IP66
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Type of control element
- Key
- Colour control element
- Black
- Switching function latching
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082168872
- SAP 1000002568
- Code 821574
Product Documentation
Document preview: KEY Switch 0-1 Faste STILL. (M22-WRS) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton FAZ-B25/3 Miniature Circuit Breaker — 3P, Type B, 25 A, 15 kA
Eaton
Eaton FAZ-B25/2 Miniature Circuit Breaker — 2P, Type B, 25 A, 15 kA
Eaton
Eaton FAZ-C13/2 Miniature Circuit Breaker — 2P, Type C, 13 A, 15 kA
Eaton
Sealsmembran Round IP67
M22-T-D
Eaton

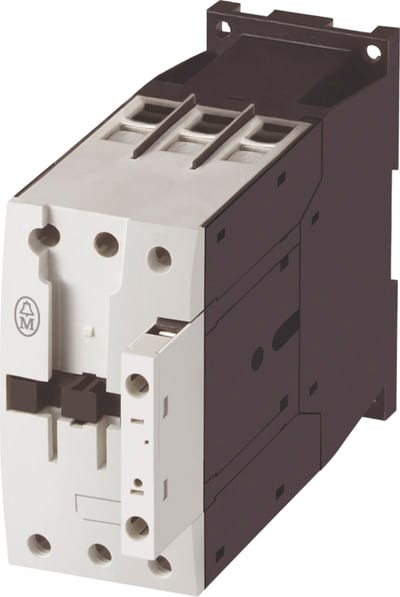

Contactor 40A 230V50HZ 240V60 (DILM40(230V50HZ,240V60HZ))
Eaton

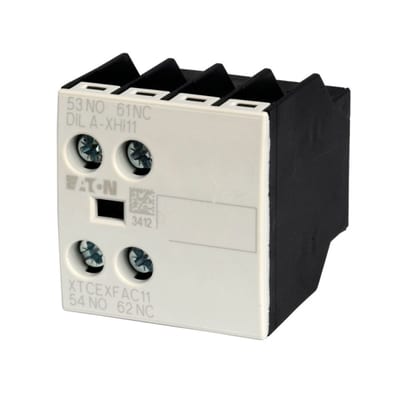

Contact Block FOR DILA 1S+1TO
DILA-XHI11
Eaton

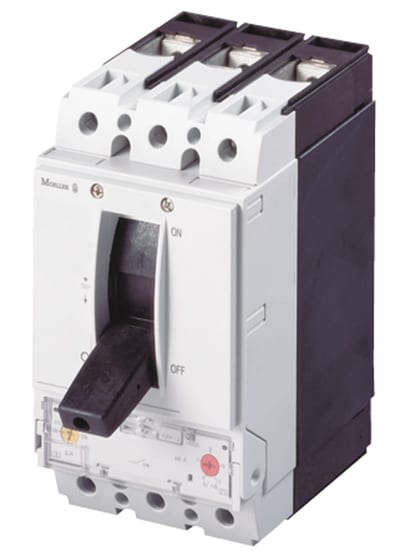

Eaton NZMH2-VE160-S1 Molded-Case Circuit Breaker 3-Pole 160A 150KA
Eaton

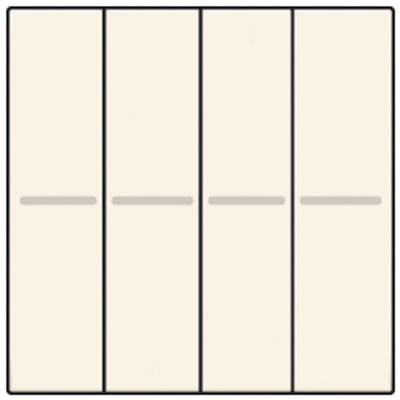

Eaton Glossy Rocker White 4-Gang 55x55 mm
