Main Earth Rail 20X5 Cu xE Basic
Pricing
Request a quote
We reply within 24 hours
Overview

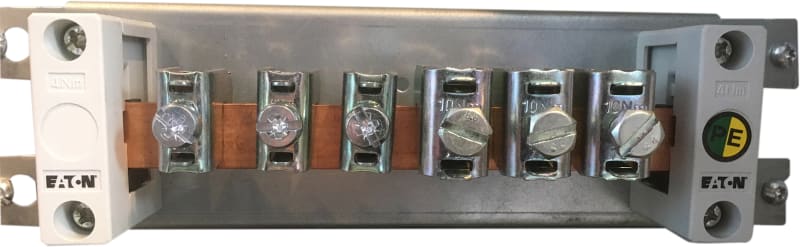

Eaton Main Earth Rail 20X5 Cu xE Basic (part number BPZ-GND-600) is listed in the cBallast industrial catalogue. Sales unit: pcs; Eaton catalogue number: 187868; Depth: 80 mm; Height: 80 mm; Width: 488 mm; Weight: 2 kg.
Technical Specifications
- Manufacturer part number (MPN)
- BPZ-GND-600
- EAN / GTIN
- 4015081855537
- Sales unit
- pcs
- Eaton catalogue number
- 187868
- Depth
- 80 mm
- Height
- 80 mm
- Width
- 488 mm
- Weight
- 2 kg
- Compliances
- RoHS conform
- Features
- Insulated mounting
- Functions
- Additional equipment
- Amperage rating
- 274 A
- Number of poles
- Single-pole
- Type
- Additional equipment
- Clearance from back plate
- 29 mm
- Connection size, connection facility
- Other
- Housing material
- Sheet steel; Copper
- Material
- Copper
- Mounting method
- Other; Surface mounting; Floor standing distribution board; Horizontal
- Mounting position
- Horizontal
- Number of connections
- 6
- Rail length
- 408 mm
- Suitable for width
- 600 mm
- Surface finishing
- Galvanized
- Surface of the contact rail
- Untreated
- Thickness
- 5 mm
- Rated current
- 274 A
- Insulated mounting
- Yes
- Busbar thickness
- 5 mm
- Rail width
- 20 mm
- Horizontal mounting
- Yes
- Vertical mounting
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081855537
- SAP 1200602023
- Code 82980731
