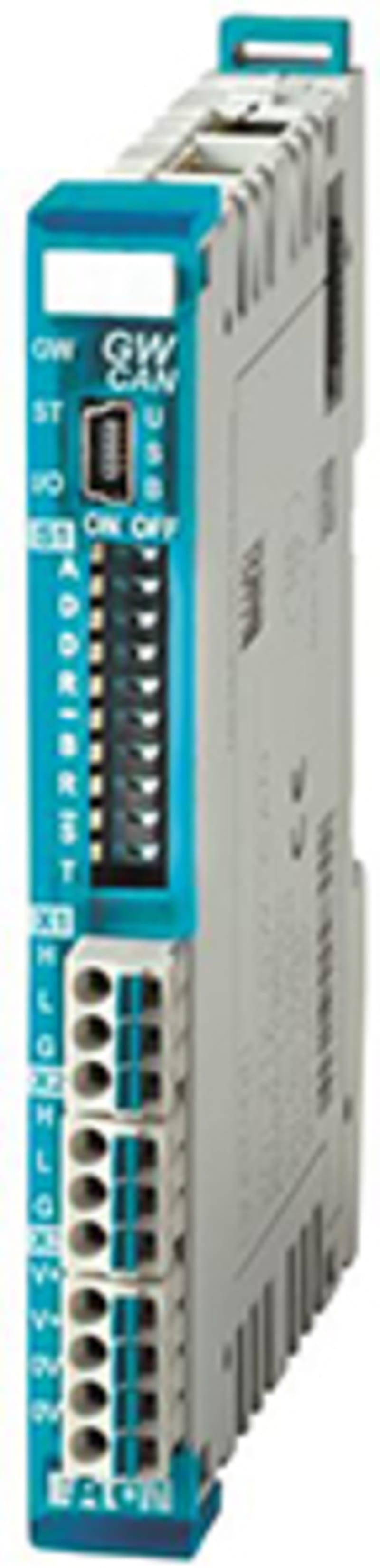

Gateway to bus system CANopen

Eaton 178782 Gateway for bus system CANopen.

Manufacturer part number (MPN)

178782

EAN / GTIN

7640130098442

Sales unit

pcs

Eaton catalogue number

178782

Depth

104.2 mm

Height

16.8 mm

Width

80.3 mm

Weight

0.061 kg

Certifications

CE; DNV GL; IEC/EN 61000-6-2; cULus; IEC/EN 61131-2; UL File No.: E135462; IEC/EN 61000-6-4; UL508; Rated data for terminations according to IEC/EN 60947-7-1

Drop and topple

According to IEC 60068-2-31, free fall according to IEC 60068-2-32

Shock resistance

Mechanical, According to IEC/EN 60068-2-27

Vibration resistance

According to IEC/EN 60068-2-6

Ambient operating temperature - max

85 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Relative humidity

5 - 95 % (non-condensing)

Addressing

Address set via DIP switch

Bus termination

Via DIP switch, Networking

Connection type

Push-In spring-cage terminals, Field bus; Push-In spring-cage terminals, Connection design in TOP direction

Data transfer rate

Setting through DIP switch or automatically; 1000 kBit/s, Networking; 10 kBit/s, Networking; 125 kBit/s, Networking; 20 kBit/s, Networking; 500 kBit/s, Networking; 50 kBit/s, Networking; 250 kBit/s, Networking; 800 kBit/s, Networking

Field voltage

24 V DC (UL)

Interfaces

CANopen®, Field bus connection; Mini-USB Type B (Service interface)

Protocol

CAN; CANopen®; Other bus systems

Static heat dissipation, non-current-dependent Pvs

2.4 W

Supply voltage

4.7 - 5.3 V DC

Supply voltage at DC - max

30 V

Supply voltage at DC - min

18 V

Air discharge

According to EN 61131-2

Burst impulse

According to IEC/EN 61131-2

Contact discharge

According to EN 61131-2

Electromagnetic fields

According to EN 61131-2

Emitted interference

30 - 230 MHz (radiated, high frequency, according to EN 61131-2); 230 - 1000 MHz (radiated, high frequency, according to EN 61131-2)

Radiated RFI

IEC/EN 61131-2

Surge rating

According to IEC/EN 61131-2

Voltage dips

According to EN 61131-2 (Voltage fluctuations/voltage dips)

Features

Fieldbus connection over separate bus coupler possible; Fieldbus connection over separate bus coupler possible

Fitted with

Potential separation

Admissible range

18 - 30 V DC, Networking; 19.2 - 30 V DC, Networking

Configuration

Maximum station configuration: 32 modules (XN-322) in slice design

Degree of protection

IP20

Mounting method

Rail mounting possible

Residual ripple

According to EN 61131-2

Type

CANopen XN-312 gateway for XN300 Digital gateway for CANopen field bus in the form of an XN300 I/O system slice module XN300 CANopen gateway for running XN300 slice modules on a CANopen field bus XN300 gateway

Used with

XN-322-…; XN300

Voltage type

DC

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Yes

Gauge pin

A1 (according to IEC/EN 60947-1)

Stripping length (main cable)

10 mm

Terminal capacity

0.2 - 1.5 mm², flexible without ferrule, H07V-K; 0.25 - 1.5 mm², with ferrules without plastic collar according to DIN 46228-1 (ferrules crimped gas-tight); 0.2 - 1.5 mm², solid, H07V-U; 0.25 - 1.5 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)

Number of HW-interfaces other

1

Number of HW-interfaces USB

1

Number of HW-interfaces CAN

1

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

18–30 V

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

Yes

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for SERCOS

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard eGPRS

No

Radio standard GSM

No

Radio standard LTE

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

With potential separation

Yes

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

No

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Country of origin

Austria

HS Code

8537.10
