Eaton

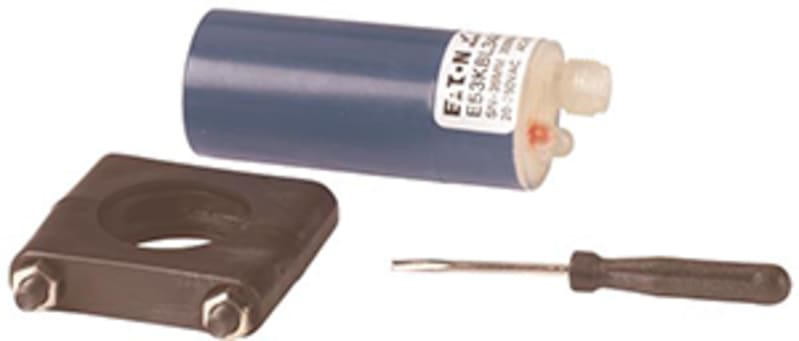

Area switch E53KBL34T111ED
Part numberE53KBL34T111EDEAN / GTIN4015081316755HS code8536.50
Sensors & Instrumentation
Capacitive Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton E53KBL34T111ED Area switch, capacitive, Sn=35mm, 1 N/C, 3L, PNP, M34, M12.
Technical Specifications
- Manufacturer part number (MPN)
- E53KBL34T111ED
- EAN / GTIN
- 4015081316755
- Sales unit
- pcs
- Eaton catalogue number
- 134823
- Depth
- 152.4 mm
- Height
- 38.1 mm
- Width
- 76.2 mm
- Weight
- 0.27 kg
- Certifications
- IEC/EN 60947-5-2; CE
- Type
- Capacitive sensor
- Electric connection type
- Plug-in connection
- Enclosure material finishing
- Other
- Fitted with
- Status indication
- Actuation type
- Other
- Enclosure material
- Plastic
- Enclosure type
- Cylinder plain
- Category (EN 954-1)
- B
- Explosion safety category for dust
- None
- Explosion safety category for gas
- None
- Voltage type
- DC
- Mounting method
- Non-flush mounting
- Material
- Insulated material
- Connection type
- Plug-in connection M12 x 1; 3-wire
- Installation type
- Not flat
- Degree of protection
- IP65; NEMA 4; NEMA 13; NEMA 12
- Interface type
- None
- LED indicator
- Status indication of Switching state: Red LED
- Switch function type
- Breaker contact
- Load current
- Max. 300 mA (Ie)
- Rated control supply voltage (Us) at DC - max
- 30 V
- Rated control supply voltage (Us) at DC - min
- 10 V
- Rated switching distance (Sn)
- 35 mm
- Repeatability
- 10 %
- Sensor length
- 80 mm
- Supply voltage - max
- 30 V
- Supply voltage - min
- 10 V
- Switching hysteresis of Sn
- 20 %
- Voltage rating - max
- 250 V
- Product category
- E53 Capacitive Series
- Residual ripple
- 10 % (Uₑ)
- Shock resistance
- 30 g, Mechanical, Shock duration 11 ms
- Switching frequency
- 250 Hz
- Switching output type
- PNP
- Temperature drift of sn
- 10 %
- Safety performance level (EN ISO 13849-1)
- None
- SIL (IEC 61508)
- None
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Diameter sensor
- 34 mm
- Number of contact energized outputs with signalling function
- 0
- Number of contacts (normally closed contacts)
- 1
- Number of outputs (protected contact energized)
- 0
- Number of outputs (protected semiconductor)
- 0
- Number of outputs (semiconductor with signaling function)
- 1
- Length of sensor
- 80 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 35 mm
- Suitable for safety functions
- No
- Type of switch function
- Breaker contact (NC)
- Type of switching output
- PNP
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder plain
- Cascadable
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Supply voltage
- 10–30 V
- Rated control supply voltage DC
- 10–30 V
- With monitoring function downstream switching devices
- No
- With status indication
- Yes
- Housing material
- Plastic
- Compression-resistant
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015081316755
- SAP 1200606846
- Code 82994646
Product Documentation
Document preview: Area switch, — Specification Data Sheet (OEM)
