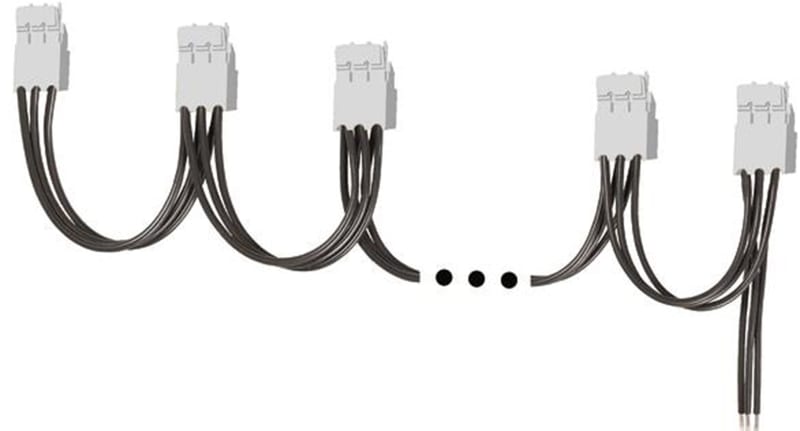

Eaton EMS2-XBR-T-3 Three-Phase Bridging Connector for EMS2 Motor Starter
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton EMS2-XBR-T-3 is a three-phase connecting cable with plug that bridges up to three EMS2 electronic motor starters on the supply side. Push-in terminals accept up to 2.5 mm² conductors and the unit is rated 25 A over an operating range of -25 to 70 °C. Dimensions 22.5x114.5x114.5 mm.
Technical Specifications
- Manufacturer part number (MPN)
- EMS2-XBR-T-3
- EAN / GTIN
- 4015080896180
- Sales unit
- pcs
- Eaton catalogue number
- 197177
- Depth
- 114.5 mm
- Height
- 114.5 mm
- Width
- 22.5 mm
- Weight
- 0.183 kg
- Certifications
- UL 60947-4-1; CSA-C22.2 No. 60947-4-1-14; CE marking; UL Category Control No.: NLDX
- NLDX7; UL File No.
- E338590; UL Listed; Certified by UL for use in Canada; UL report applies to both US and Canada
- Catalog Notes
- Conductor cross-section: 2.5 mm²
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Rated operational current for specified heat dissipation (In)
- 25 A
- Number of poles
- Three-pole
- Accessory/spare part type
- Connecting cable
- Connection type
- Push in terminals
- Product category
- Accessories Electronic motor starter
- Type
- Three-phase current connector with plug
- Used with
- 3 devices can be connected
- Type of accessory/spare part
- Connecting cable
- Accessory
- Yes
- Spare part
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015080896180
- SAP 1200527030
- Code 82936425
Product Documentation
More from Eaton
Eaton
Area switch E53KBL34T111ED
Eaton
Eaton Mushroom Actuator, Maintained, Yellow
M22-DRP-Y
Eaton
Over/Under adapter XNH00
XNH00-XHAA-T/B
Eaton
Eaton FAZ-B20/1N Miniature Circuit Breaker — 1P+N, Type B, 20 A, 15 kA
Eaton
Motor protection circuit breaker, trip block (PKE-XTUA-32)
Eaton
Washer 8mm (220J1583)
Eaton
Door cut-out 144X144 xE M H600 B800
XSDMC0608-1-144
Eaton
Konsol FOR DIN-RAIL (220E4356)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy EMS2-XBR-T-3?
- EMS2-XBR-T-3 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is EMS2-XBR-T-3.
- What is the HS code for EMS2-XBR-T-3?
- The customs tariff (HS) code for EMS2-XBR-T-3 is 8536.50.
- Who manufactures EMS2-XBR-T-3?
- EMS2-XBR-T-3 is a Eaton product in the Drives & Controllers range.
- Is a datasheet available for EMS2-XBR-T-3?
- Yes — the EMS2-XBR-T-3 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for EMS2-XBR-T-3?
- The minimum order quantity is 1.
- Is EMS2-XBR-T-3 available?
- Yes — EMS2-XBR-T-3 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
