Eaton

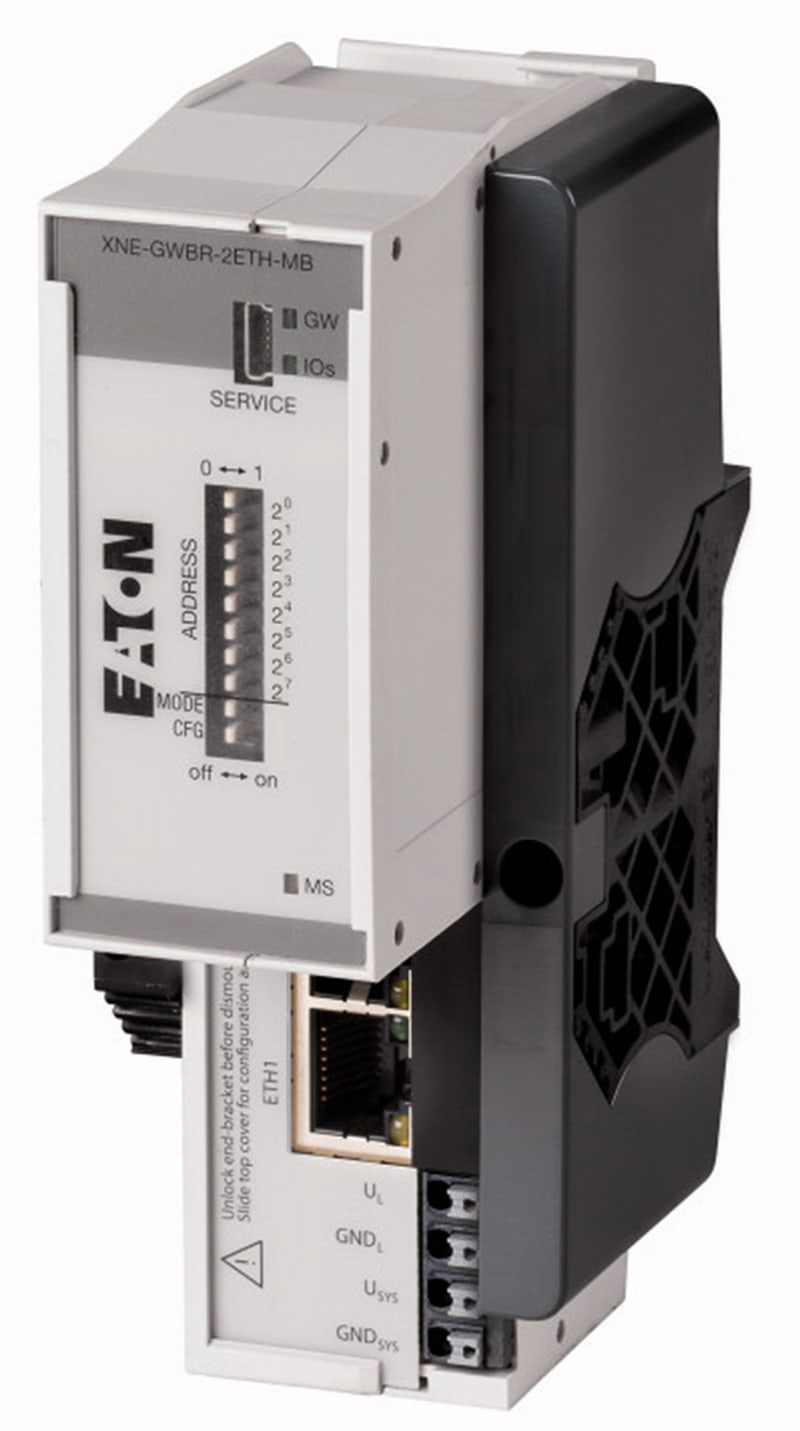

Eco Gateway Modbus-TCP
Part numberXNE-GWBR-2ETH-MBEAN / GTIN7640130095298HS code8538.90
Control & Automation
Fieldbus I/O
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Eco Gateway Modbus-TCP (part number XNE-GWBR-2ETH-MB) is listed under Control & Automation / Fieldbus I/O. Sales unit: pcs; Eaton catalogue number: 152279; Depth: 129 mm; Height: 75 mm; Width: 33.5 mm; Weight: 0.136 kg.
Technical Specifications
- Manufacturer part number (MPN)
- XNE-GWBR-2ETH-MB
- EAN / GTIN
- 7640130095298
- Sales unit
- pcs
- Eaton catalogue number
- 152279
- Depth
- 129 mm
- Height
- 75 mm
- Width
- 33.5 mm
- Weight
- 0.136 kg
- Certifications
- cULus; CE
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- 0 °C
- Addressing
- Address set via DIP switch, BootP, DHCP or PGM
- Connection type
- 2 x RJ45 (Ethernet Switch), Field bus; Push-In spring-cage terminals, Connection design in TOP direction
- Data transfer rate
- 10/100 MBit/s
- Interfaces
- Ethernet (Modbus-TCP protocol), Field bus connection
- Protocol
- MODBUS; Other bus systems
- Static heat dissipation, non-current-dependent Pvs
- 8 W
- Supply voltage at DC - max
- 30 V
- Supply voltage at DC - min
- 18 V
- Features
- Fieldbus connection over separate bus coupler possible; Fieldbus connection over separate bus coupler possible
- Fitted with
- Potential separation
- Accessories
- 1 x end plate XN-ABPL and 2 x end bracket XN-WEW-32/2-SW included with supplied equipment.
- Degree of protection
- IP20
- Mounting method
- Rail mounting possible
- Type
- XI/ON ECO gateways
- Voltage type
- DC
- Explosion safety category for dust
- None
- Explosion safety category for gas
- None
- Certified for UL hazardous location division 1
- No
- Certified for UL hazardous location division 2
- No
- Certified for UL hazardous location group A (acetylene)
- No
- Certified for UL hazardous location group B (hydrogen)
- No
- Certified for UL hazardous location group C (ethylene)
- No
- Certified for UL hazardous location group D (propane)
- No
- Certified for UL hazardous location group E (metal dusts)
- No
- Certified for UL hazardous location class I
- No
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Supporting protocol for EtherCAT
- No
- Supply voltage DC
- 18–30 V
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard eGPRS
- No
- Radio standard GSM
- No
- Radio standard LTE
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- System accessory
- Yes
- With potential separation
- Yes
- Fieldbus connection over separate bus coupler possible
- Yes
- Suitable for rail mounting
- Yes
- Wall mounting/direct mounting
- No
- Front built-in possible
- No
- Rack-assembly possible
- No
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7640130095298
- SAP 1200303871
- Code 82277529
Product Documentation
Document preview: Eco Gateway Modbus-TCP (XNE-GWBR-2ETH-MB) — Specification Data Sheet (OEM)
