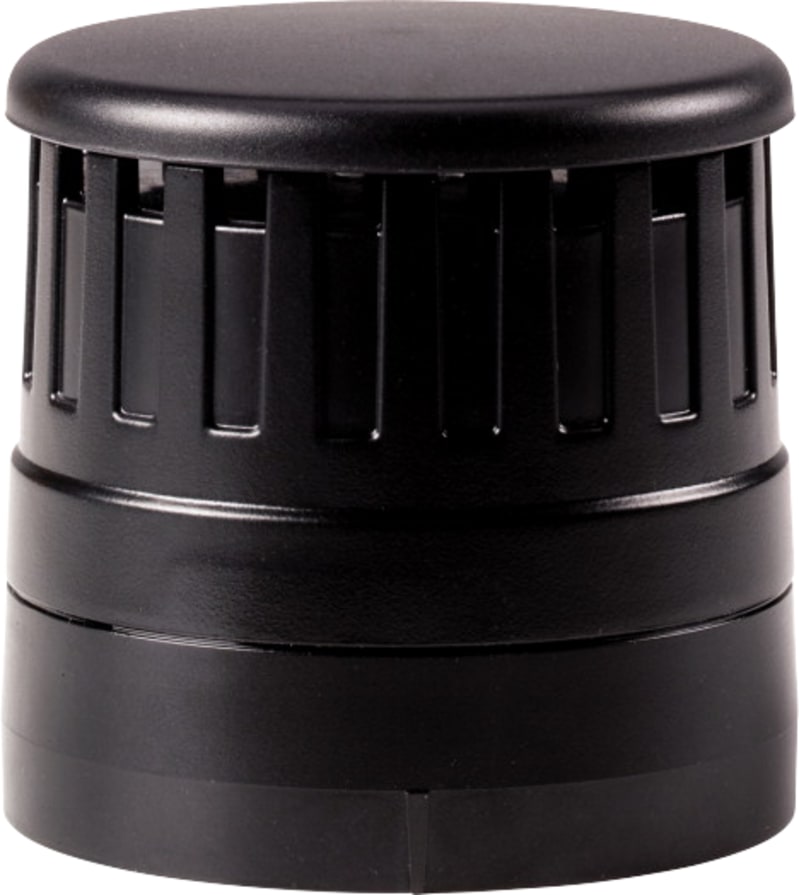

Akuplug, 230V, Constant/Pulse (SL7-AP230)

Eaton Akuplug, 230V, Constant/Pulse (SL7-AP230) is listed in the cBallast industrial catalogue. HS code: 8531.80.

Manufacturer part number (MPN)

SL7-AP230 EAN / GTIN: 4015081678129 Sales unit: pcs Eaton catalogue number: 171283 Depth: 73 mm Height: 71 mm Width: 73 mm Weight: 0.103 kg Compliances: CE Marked Catalog Notes: 0 Ambient operating temperature - max: 60 °C Ambient operating temperature - min: -30 °C Climatic proofing: Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30 Leakage current: 0.003 A Rated insulation voltage (Ui): 250 V Rated operational current (Ie) - max: 43 mA Rated operational voltage (Ue) at AC - max: 240 V Rated operational voltage (Ue) at AC - min: 230 V Color: Black Features: Sound pressure adjustable to a minimum of 88 dB Functions: Continuous tone/pulse tone Accessories: Internal DIP switch, internal potentiometer Alarm type: Pulsed tone; Tone adjustable; 2 types of sound; Continuous tone; Internal sound setting, 1 pole DIP Connection to SmartWire-DT: No Current consumption: 0.043 A, at 230/240 V AC Degree of protection: NEMA 13; IP66 Frequency rating: 2800 Hz Loudness: Can be adjusted with built-in potentiometer; 100 dB material: Enclosure: Polycarbonate (PC); Cap: Polycarbonate (PC) Mounting position: Place only at the highest position on a pole; As required Overvoltage category: III Pollution degree: 3 Product Category: SL signal towers Radiation angle: 360 ° Rated impulse withstand voltage (Uimp): 4000 V AC Shock resistance: 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27 Type: Acoustic module Voltage type: AC Colour: Black Outer diameter: 73 mm Tone adjustable: Yes Operating voltage AC 50 Hz: 230–240 V Operating voltage AC 60 Hz: 230–240 V Country of origin: Austria

HS Code

8531.80

• EAN 4015081678129
• SAP 1000492318
• Code 8605774
