Eaton

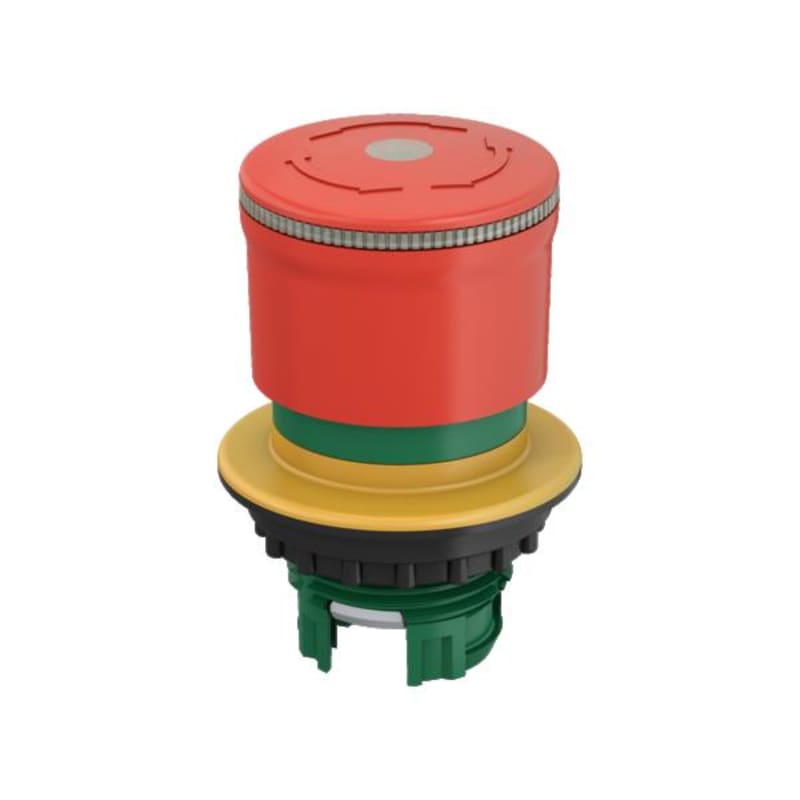

Emergency stop button M22-PVLT30
Part numberM22-PVLT30EAN / GTIN4015081942541HS code8538.90
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-PVLT30 Emergency stop button, RMQ-Titan, Soppform, 30 mm, Belyses with LED element.
Technical Specifications
- Manufacturer part number (MPN)
- M22-PVLT30
- EAN / GTIN
- 4015081942541
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 197538
- Depth
- 30 mm
- Height
- 32 mm
- Width
- 30 mm
- Weight
- 0.03 kg
- Certifications
- CE; CCC; EAC; CSA; EN 50581; EN ISO 13850; EN 60947-5-1; Machines 2006/42/EG
- Actuating force
- 50 N
- Actuator color
- Red
- Actuator diameter
- 30 mm
- Actuator function
- Switching function latching; Turn-to-release
- Color
- Red
- Design
- Mushroom-shaped; Classical
- Illumination
- Illuminated with LED element
- Unlocking method
- Turn-release
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- No
- Base color
- Yellow
- Bezel color
- Other
- Bezel material
- Other
- Features
- Tamper-proof (according to ISO 13850, EN 418)
- RAL-number
- 3000
- Degree of protection
- IP66; NEMA 4X; IP69
- Lifespan, mechanical
- 60,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front dimensions: 35 mm
- Suitable for
- Illumination; Emergency stop
- Type
- Controlled stop pushbutton/emergency-stop button
- Hole diameter
- 22.5 mm
- Colour button
- Red
- Suitable for lighting
- Yes
- Spring-return
- No
- Diameter cap
- 30 mm
- Suitable for emergency stop
- Yes
- Type of button
- High
- With lighting
- No
- With front ring
- No
- Construction type lens
- Round
- Switching function latching
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081942541
- SAP 1200519934
- Code 82667658
Product Documentation
Document preview: Emergency stop button, — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton AZ-2-C80 Miniature Circuit Breaker — 2P, Type C, 80 A, up to 25 kA
Eaton
variable-frequency drive, DM1-32048NB-S20S-EM
3-5008-004A
Eaton
Eaton FAZ-K63/3 Miniature Circuit Breaker — 3P, Type K, 63 A, 15 kA
Eaton
Digital input module; 20 digital inputs (178767)
Eaton
PROG.CABLE XC100/200 (xt-SUB-D/RJ45)
XT-SUB-D/RJ45
Eaton
DS-7-FAN-135-200 Amp (169022)
Eaton
3.5"TFT,Color,res.,QVGA,RS232, (XV102B535TQR10PLC)
Eaton
Unit breaker 1P 80A C
AZ-C80
