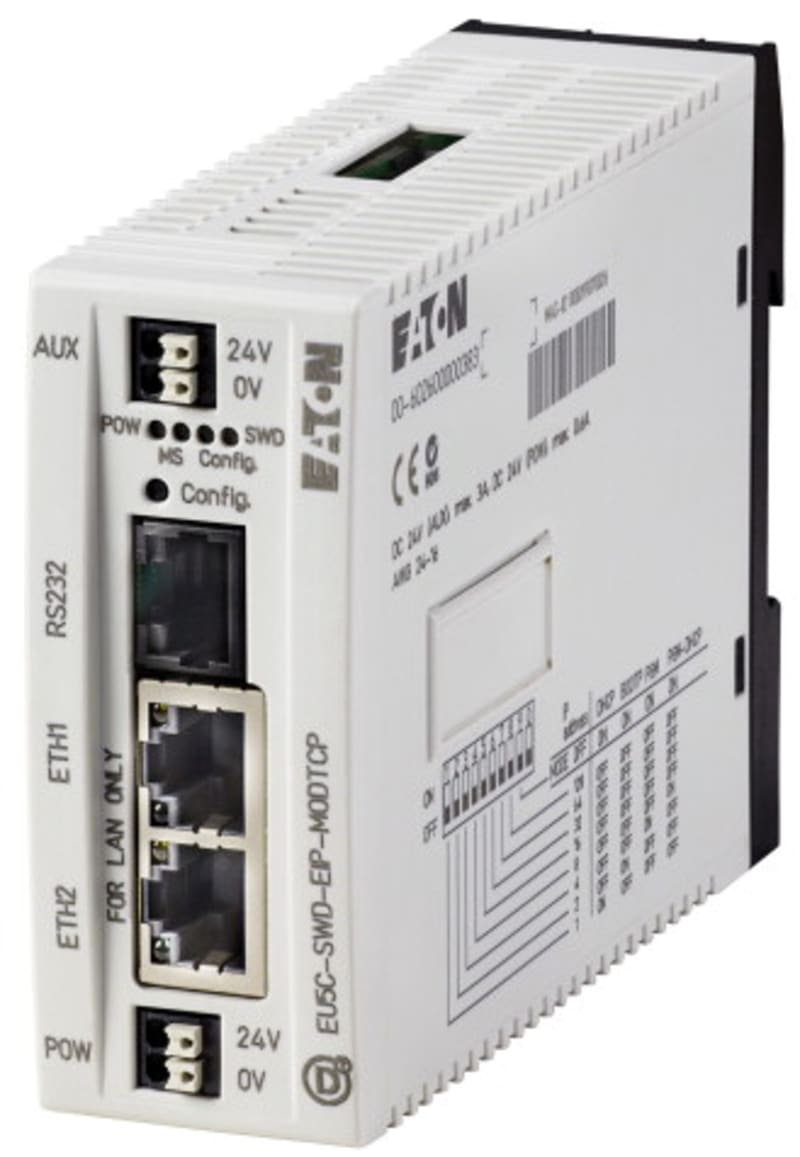

Gw. SWD- Mod TCP and Eth IP

Eaton EU5C-SWD-EIP-MODTCP.

Manufacturer part number (MPN)

EU5C-SWD-EIP-MODTCP

EAN / GTIN

4015081498901

Sales unit

pcs

Eaton catalogue number

153163

Depth

127 mm

Height

90 mm

Width

35 mm

Weight

0.162 kg

Compliances

Eaton supports the product until its end of life

Certifications

CSA File No.: 2324643; UL File No.: E29184; CSA Class No.: 3211-07; IEC/EN 61131-2; UL Category Control No.: NKCR; CSA; EN 50178; UL

Constant acceleration

1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations

Constant amplitude

3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations

Drop and topple

50 mm Drop height, Drop to IEC/EN 60068-2-31

Height of fall (IEC/EN 60068-2-32) - max

0.3 m

Mounting position

As required

Shock resistance

15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts

Air pressure

795 - 1080 hPa (operation)

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

In accordance with IEC 60068-2

Operating temperature - max

55 °C

Operating temperature - min

-25 °C

Relative humidity

5 - 95 % (non-condensing, IEC/EN 60068-2-30)

Addressing

Address set automatically

Connection type

2 x RJ45 (2-channel switch), Field bus interface; Push in terminals

Supply voltage; SWD

Plug, 8-pole

Interfaces

Module type: Ethernet IP/MODBUS-TCP Slave; Status display fieldbus interface for MS, Link status with Multi color LED

LED indicator

Status indication of Supply voltage: LED; Status indication of SmartWire-DT network: Configurable green or red LED; Status indication of SmartWire-DT master: Green and red LEDs

Number of modules

99 (SmartWire-DT)

Protocol

Ethernet IP/MODBUS-TCP; MODBUS

Station

IP, Station address, Fieldbus interface; SmartWire-DT master, SmartWire-DT network

Equipment heat dissipation, current-dependent Pvid

3.8 W

Static heat dissipation, non-current-dependent Pvs

1 W

Inrush current

12.5 A (for 6 ms)

Power loss

Normally 1 W

Rated control supply voltage

24 V DC (UPOW, -15 %/+20 %); 24 V DC (UAUX, -15 %/+20 %)

Rated operational current (Ie)

0.7 A

Rated operational voltage

Typically UAUX -0.2 V (for 24 V DC slaves); 14.5 V (± 3 % - SmartWire-DT)

Short-circuit protection

No, external fuse FAZ Z3, Supply voltage UAux; Yes, Short-circuit rating, SmartWire-DT supply voltage

Supply current - max

0.7 mA

Supply voltage at DC - max

28.8 V

Supply voltage at DC - min

20.4 V

Air discharge

8 kV, according to IEC 61131-2, level 3, ESD

Burst impulse

1 kV; 1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3; 2 kV, Supply cable, according to IEC/EN 61131-2, Level 3

Contact discharge

4 kV, according to IEC/EN 61131-2, Level 2, ESD

Electromagnetic fields

10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008); 3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008); 1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)

Radiated RFI

10 V (IEC/EN 61131-2:2008, Level 3)

Radio interference class

Class A (EN 55011)

Surge rating

0.5 kV, Supply cable, Surge (IEC/EN 61131-2:2008, Level 1), EMC

Voltage dips

≤ 10 ms, Bridging voltage dips

Features

Overload proof; Potential isolation (Fieldbus Interface)

Functions

For connection to the Ethernet-IP/MODBUS-TCP field bus

Operating mode

Address allocation via DIP switch/DHCP/BOOTP

Degree of protection

IP20

Mounting method

Wall mounting/direct mounting; Rail mounting possible; Screw fixing using fixing brackets ZB4-101-GF1 (accessories); Top-hat rail fixing (according to IEC/EN 60715, 35 mm)

Overvoltage category

II

Pollution degree

2

Product category

SmartWire-DT coordinators

Repetition rate

1 s

Residual ripple

≤ 5 % (input voltage)

Suitable for

Safety functions

Terminal capacity

0.2 - 1.5 mm², solid; 24 - 16 AWG, solid or stranded; 0.25 - 1.5 mm², flexible with ferrule

Voltage type

DC

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Between UPow and 15 V SmartWire-DT supply voltage: no; Supply voltage UAUX: no

Protection against polarity reversal

Yes, for supply voltage (Siemens MPI optional); Yes

Number of HW-interfaces industrial Ethernet

2

Number of HW-interfaces RS-232

1

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

20.4–28.8 V

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for SERCOS

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard eGPRS

No

Radio standard GSM

No

Radio standard LTE

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

With potential separation

No

Fieldbus connection over separate bus coupler possible

No

Suitable for rail mounting

Yes

Wall mounting/direct mounting

Yes

Front built-in possible

No

Rack-assembly possible

No

HS Code

8538.90
