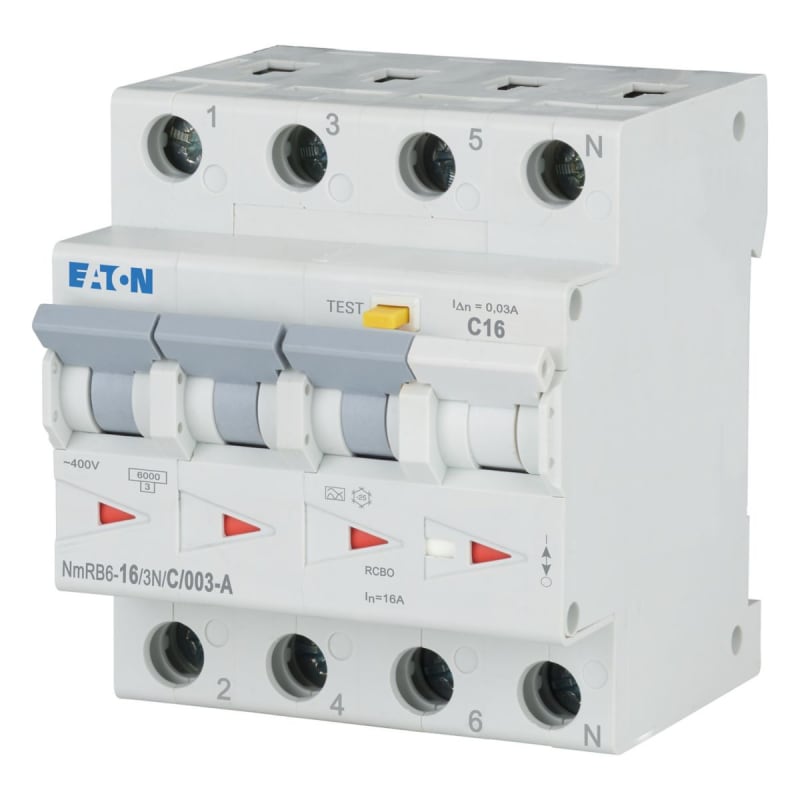

Residual current circuit breaker with overcurrent 16A 3P+N C 30MAA

Eaton 193845 NmRB6-16/3N/C/003-A.

Manufacturer part number (MPN)

193845

EAN / GTIN

9010238039728

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

193845

Depth

80 mm

Height

75 mm

Width

73 mm

Weight

0.445 kg

Certifications

CE

Amperage Rating

16 A

Voltage rating

400 V

Surge current capacity

0.25 kA

Voltage type

AC

Width in number of modular spacings

4

Features

Concurrently switching N-neutral

Operating ambient temperature - max

40 °C

Operating ambient temperature - min

-25 °C

Rated current

16 A

Rated operational current for specified heat dissipation (In)

16 A

Built-in depth

70 mm

Current limiting class

3

Rated short-circuit breaking capacity (EN 60947-2)

6 kA

Ambient operating temperature - max

40 °C

Ambient operating temperature - min

-25 °C

Fault current rating

0.03 A

Number of poles (protected)

3

Number of poles (total)

4

Rated operational voltage (Ue) - max

400 V

Rated short-circuit breaking capacity (IEC 60947-2)

6 kA

Basic function

Combined RCD/MCB devices

Mounting Method

DIN rail

Equipment heat dissipation, current-dependent

11.2 W

Rated impulse withstand voltage (Uimp)

4 kV

Degree of protection

IP20

Overvoltage category

III

Pollution degree

2

Leakage current type

A

Release characteristic

C

Frequency rating

50 Hz

Rated insulation voltage (Ui)

500 V

Connectable conductor cross section (solid-core) - min

1 mm²

Connectable conductor cross section (solid-core) - max

25 mm²

Connectable conductor cross section (multi-wired) - min

1 mm²

Connectable conductor cross section (multi-wired) - max

25 mm²

Rated short-circuit breaking capacity (EN 61009)

6 kA

Rated short-circuit breaking capacity (EN 61009-1)

6 kA

Disconnection characteristic

Undelayed

Type

RCBO

HS Code

8536.90
