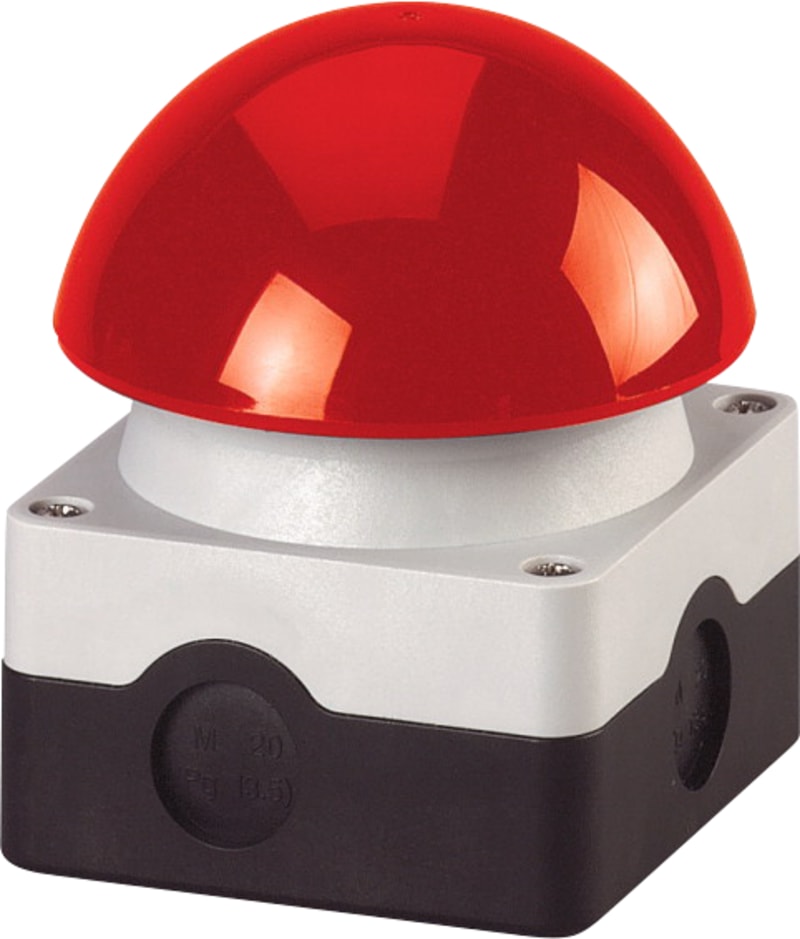

Foot Switch, Red, 1 NO + 1 NC, Enclosed

Eaton FAK-R/KC11/I foot-operated push button switch, red, 1 N/O + 1 N/C contacts, in enclosure.

Manufacturer part number (MPN)

FAK-R/KC11/I

EAN / GTIN

4015082297466

Sales unit

pcs

Eaton catalogue number

229746

Depth

85 mm

Height

85 mm

Width

100 mm

Weight

0.324 kg

Certifications

CSA-C22.2 No. 94-91; CSA; CSA File No.: 012528; UL File No.: E29184; CSA Class No.: 3211-03; IEC/EN 60947-5; IEC/EN 60947-5-1; UL Category Control No.: NKCR; VDE 0660; UL; CE; CSA-C22.2 No. 14-05; UL 508

Catalog Notes

Contacts with safety function, by positive opening to IEC/EN 60947-5-1

Actuating force

40 N

Actuator color

Red

Actuator function

Momentary

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Heat dissipation per pole, current-dependent Pvid

0.11 W

Rated operational current for specified heat dissipation (In)

6 A

Enclosure color

Gray; Black

Unlocking method

None

Connection to SmartWire-DT

No

Degree of protection

IP67/IP69K; NEMA 4X

Lifespan, mechanical

1,000,000 Operations (AC operated)

Mounting position

As required

Operating frequency

3600 Operations/h

Product category

Foot and palm switches

Shock resistance

15 g, Mechanical, According to IEC/EN 60068-2-27, Half-Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27

Type

Complete device

Colour cap

Red

Spring-return

Yes

Switching function latching

No

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Country of origin

China

HS Code

8536.50

• EAN 4015082297466
• SAP 1000081973
• Code 8828343
