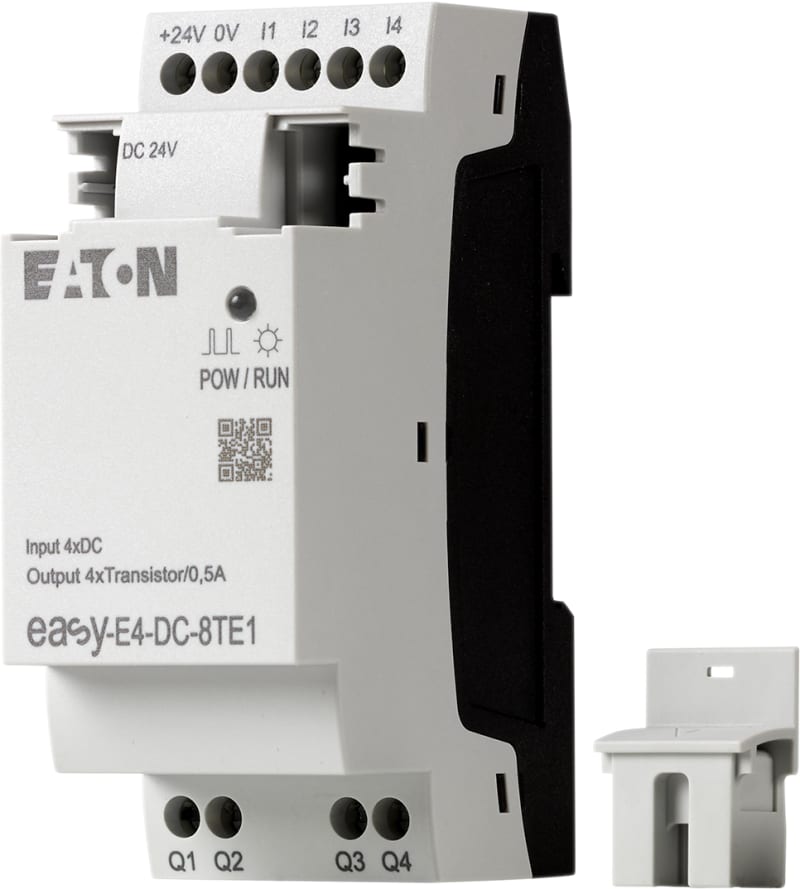

In/O extension for EASYE4 (EASY-E4-DC-8TE1)

Eaton In/O extension for EASYE4 (EASY-E4-DC-8TE1) is listed under Control & Automation / PLCs. Sales unit: pcs; Eaton catalogue number: 197219; Depth: 58 mm; Height: 90 mm; Width: 36 mm; Weight: 0.1 kg.

Manufacturer part number (MPN)

EASY-E4-DC-8TE1

EAN / GTIN

4015080892809

Sales unit

pcs

Eaton catalogue number

197219

Depth

58 mm

Height

90 mm

Width

36 mm

Weight

0.1 kg

Drop and topple

50 mm Drop height, Drop to IEC/EN 60068-2-31

Height of fall (IEC/EN 60068-2-32) - max

0.3 m

Mounting position

Horizontal; Vertical

Shock resistance

15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts

Vibration resistance

57 - 150 Hz, 2 g constant acceleration; According to IEC/EN 60068-2-6; 10 - 57 Hz, 0.15 mm constant amplitude

Cable length

100 m, unscreened, Digital inputs 24 V DC

Air pressure

795 - 1080 hPa (operation)

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Environmental conditions

Clearance in air and creepage distances according to EN 50178, EN 61010-2-201, UL61010-2-201

CSA-C22.2 NO. 61010-2-201; Condensation

prevent with appropriate measures

Relative humidity

5 - 95 % (IEC 60068-2-30, IEC 60068-2-78)

Connection type

Screw terminal

Static heat dissipation, non-current-dependent Pvs

1 W

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

0.5 A

Heat dissipation

3.4 W (at 24 V DC)

Inrush current

12.5 A (for 6 ms)

Power consumption

1 W

Rated operational current (Ie)

Max. 0.5 A at signal „1” DC per channel

Rated operational voltage

20.4 - 28.8 V DC; 20.4 - 28.8 V DC (Transistor outputs); 24 V DC (-15 %/+ 20 % - power supply); 24 V DC (transistor outputs); 24 V DC (digital inputs)

Supply current

18/32 mA, Normally⁄max., On 0 signal, Transistor outputs; 24/44 mA, Normally⁄max., On 1 signal, Transistor outputs

Supply voltage at DC - max

28.8 VDC

Supply voltage at DC - min

20.4 VDC

Air discharge

8 kV

Burst impulse

2 kV, Signal cable; 2 kV, Supply cable; According to IEC/EN 61000-4-4

Contact discharge

6 kV

Electromagnetic fields

10 V/m at 0.8 - 1.0 GHz (according to IEC EN 61000-4-3); 3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3); 1 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3)

Immunity to line-conducted interference

10 V (according to IEC/EN 61000-4-6)

Radio interference class

Class B (EN 61000-6-3)

Surge rating

1 kV, Supply cables, asymmetrical, power pulses (Surge), EMC; 0.5 kV, Supply cables, symmetrical, power pulses (Surge), EMC; According to IEC/EN 61000-4-5, power pulses (Surge), EMC

Voltage dips

20 ms; ≤ 10 ms, Bridging voltage dips

Features

Expandable; Expansion device; Parallel connection of transistor outputs with resistive load, inductive load with external suppressor circuit, combination within a group - Group 1: Q1 to Q4

Functions

Thermal cutout

Indication

LCD-display base unit used as Output status indication of Transistor outputs; LCD-display base unit used as status indication of Digital inputs 24 V DC

Degree of protection

IP20

Insulation resistance

According to EN 50178, EN 61010-2-201, UL61010-2-201, CSA-C22.2 NO. 61010-2-201

Mounting method

Rail mounting possible; Top-hat rail fixing (according to IEC/EN 60715, 35 mm); Wall mounting/direct mounting; Screw fixing using fixing brackets ZB4-101-GF1 (accessories); Front build in possible

Operating frequency

Dependent on the cycle- and transmission-time of the expansion devices; Depending on the suppressor circuit (Inductive load to EN 60947-5-1, with external suppressor circuit, Max. switching frequency, max. duty factor); Dependent on the cycle time of the basic device

Overvoltage category

III

Pollution degree

2

Product category

Control relays easyE4

Protocol

MODBUS; TCP/IP

Residual current

0.1 mA (on signal "1" per channel)

Residual ripple

≤ 5 %; 5 % (transistor outputs)

Software

EASYSOFT-SWLIC/easySoft

Type

easyE4 extension

Voltage type

DC

Input current

40 mA

Input voltage

Signal 0: ≤ 5 V DC (I1 - I4, Digital inputs

24 V DC); Signal 1

≥ 15 V DC (I1 - I4, Digital inputs, 24 V DC)

Lamp load

Max. 3 W (without Rv per channel)

Number of inputs (analog)

0

Number of inputs (digital)

4

Number of outputs (analog)

0

Number of outputs (digital)

4

Output

2 A, Max. total current, Outputs; 4 Transistor Outputs; Parallel connection of max. 4 Transistor outputs; Voltage; Current

Output voltage

U = Uₑ - 1 V (signal 1 at Iₑ = 0.5 A, transistor outputs); Max. 2.5 V (at status 0 per channel, transistor outputs)

Explosion safety category for dust

None

Explosion safety category for gas

None

Protection against polarity reversal

Yes, for supply voltage (Siemens MPI optional); For transistor outputs (Caution: A short circuit will result if 0 V/earth is applied to the outputs in the event that the supply voltage is connected to the wrong poles)

Short-circuit current

6.8 A, Transistor outputs

Short-circuit protection

Yes, electronic (Q1 - Q4), Transistor outputs; ≥ 1A (T), Fuse, Power supply

Short-circuit tripping current

0.7 ≤ Ie ≤ 1.7 per output, For Ra ≤ 10 mΩ, Depending on number of active channels and their load, Transistor outputs

Screwdriver size

3.5 x 0.8 mm, Terminal screw

Terminal capacity

0.2 - 4 mm² (AWG 22 - 12), solid; 0.2 - 2.5 mm² (22 - 12 AWG), flexible with ferrule

Tightening torque

0.6 Nm, Screw terminals

Document Name

Description Action

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

Yes

Certified for UL hazardous location group A (acetylene)

Yes

Certified for UL hazardous location group B (hydrogen)

Yes

Certified for UL hazardous location group C (ethylene)

Yes

Certified for UL hazardous location group D (propane)

Yes

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

Yes

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

20.4–28.8 V

Switching current

0.5 A

Number of digital inputs

4

Number of digital outputs

4

With relay output

No

With optical interface

No

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

HS Code

8537.10
