Eaton

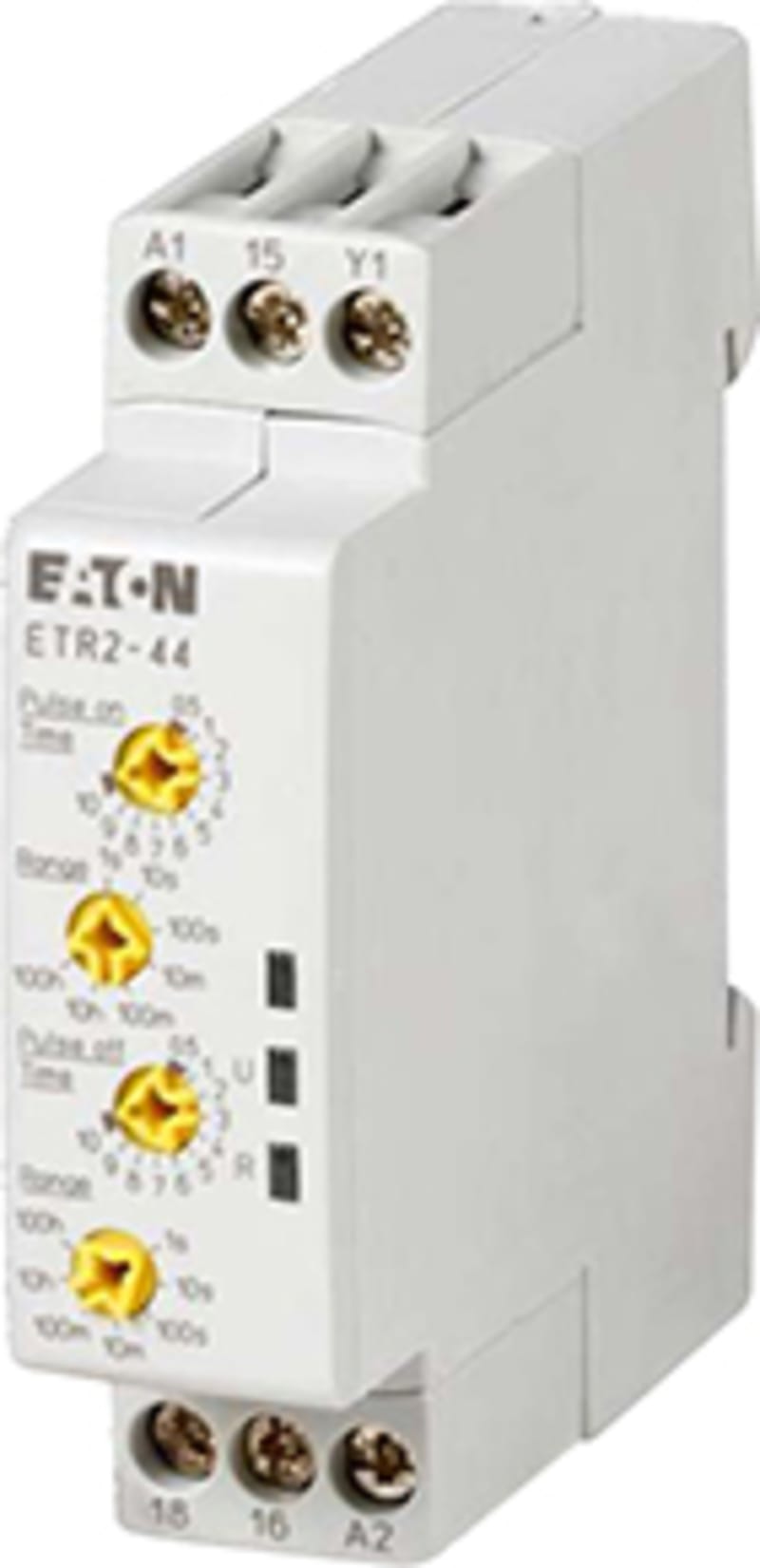

Time relay ETR2-44
Part numberETR2-44EAN / GTIN4015082627300HS code8536.90
Control & Automation
Relays & Timers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton ETR2-44 Time relay, 0.05s-100h, 24-240VAC 50/60Hz, 24-48VDC, 1W, blink, 2 ganger.
Technical Specifications
- Manufacturer part number (MPN)
- ETR2-44
- EAN / GTIN
- 4015082627300
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 262730
- Depth
- 63 mm
- Height
- 70 mm
- Width
- 17.5 mm
- Weight
- 0.053 kg
- Certifications
- CSA File No.: UL report valid; UL; CSA-22.2 No. 14; IEC/EN 61812-1; UL 508; CE; UL Category Control No.: NKCR
- NKCR7; IEC/EN 60947-5-1; UL File No.
- E29184; Certified by UL for use in Canada; CSA Class No.: 3211-03
- Catalog Notes
- Package quantity 1
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -25 °C
- Heat dissipation capacity Pdiss
- 0 W
- Mains voltage tolerance
- 24 - 48 V DC; 24 - 240 V AC (at 50/60 Hz)
- Nominal current
- 3 A
- Rated operational current (Ie)
- 4 A at AC-15, 220 V 230 V 240 V; 3 A at 230 V (NC); 3 A at 230 V (NO)
- Electric connection type
- Screw connection
- Degree of protection
- IP20
- Number of contacts (change-over contacts)
- 1
- Product category
- ETR2 timing relays
- Suitable for
- DIN rail (top hat rail) mounting
- Time range - max
- 360000 s
- Time range - min
- 0.05 s
- Type
- Timer relay
- Used with
- XC100, XC121, XC200
- Voltage type
- AC/DC
- Rated control supply voltage (Us) at AC
- 50 Hz - max
- 240 V
- Rated control supply voltage (Us) at AC
- 50 Hz - min
- 24 V
- Rated control supply voltage (Us) at AC
- 60 Hz - max
- 240 V
- Rated control supply voltage (Us) at AC
- 60 Hz - min
- 24 V
- Rated control supply voltage (Us) at DC - max
- 240 V
- Rated control supply voltage (Us) at DC - min
- 24 V
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015082627300
- SAP 1000289099
- Code 895855
Product Documentation
Document preview: Time relay, — Specification Data Sheet (OEM)
