Eaton

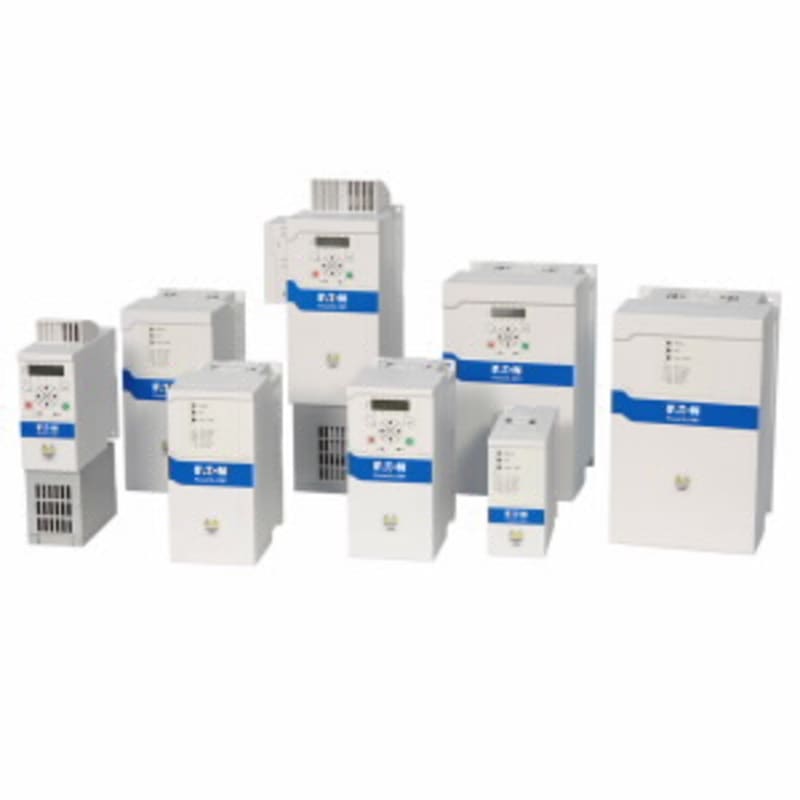

variable-frequency drive DM1-34038NB-S20S-EM
Part numberDM1-34038NB-S20S-EMEAN / GTIN4015081980970HS code8504.40
Drives & Controllers
Variable Frequency Drives
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton DM1-34038NB-S20S-EM variable-frequency drive DM1, 400 V AC, 3-pole, 38 A, 18.5 kW, IP20/NEMA0, Safe Torque Off, SIL2, PLd Cat 3.
Technical Specifications
- Manufacturer part number (MPN)
- DM1-34038NB-S20S-EM
- EAN / GTIN
- 4015081980970
- HS code
- 8504.40
- Sales unit
- pcs
- Width
- 184 mm
- Height
- 300 mm
- Depth
- 195 mm
- Power consumption
- 473.4 W
- With control element
- Yes
- Number of digital inputs
- 4
- Number of analogue inputs
- 1
- Number of analogue outputs
- 1
- Supporting protocol for LON
- No
- Number of HW-interfaces industrial Ethernet
- 1
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- Yes
- Supporting protocol for CAN
- Yes
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- Degree of protection (IP)
- IP20
- With PC connection
- Yes
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 380–480 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- Yes
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- Yes
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- Yes
- Max. output frequency
- 400 Hz
- Max. output at linear load at rated output voltage
- 18.5 kW
- Max. output at quadratic load at rated output voltage
- 22 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 10 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Max. output voltage
- 500 V
- Nominal output current I2N
- 38 A
- Supporting protocol for BACnet
- Yes
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4015081980970
- SAP 1200553466
- Code 82920328
Product Documentation
Document preview: variable-frequency drive DM1-34038NB-S20S-EM — Specification sheet
More from Eaton
Eaton

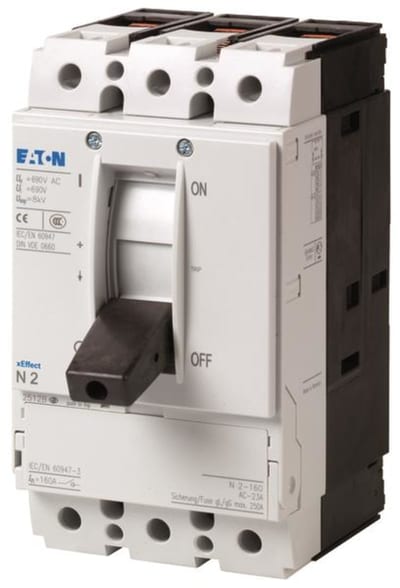

Eaton NS2-250-NA
Eaton

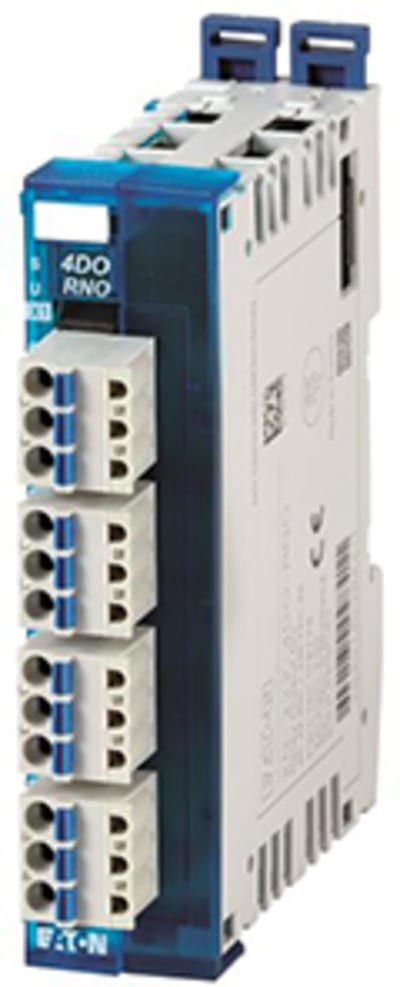

Digital relay module; 4 digital relay
178779
Eaton

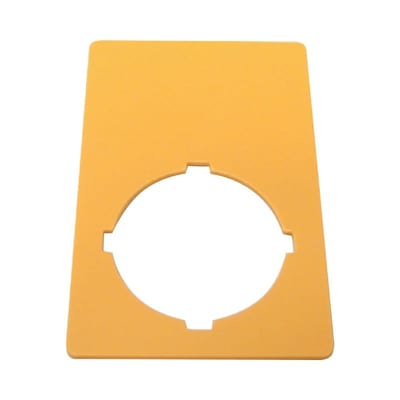

Emergency stop marking tag, RMQ (M22-XZK1-D99)
Eaton
Washer, 10,5 VZN (XNNUS-10)
Eaton
Eaton T0-2-15432/XZ Two-Pole Hand-0-Auto Reversing Switch 20 A
Eaton

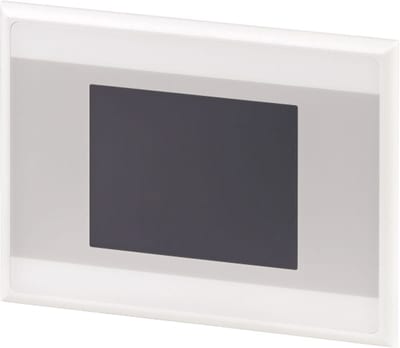

Eaton Touch display
XV-102-B0-35TQR-10-PLC
Eaton
Safety Switch,100A (P3-100/EA/SVB/HI11)
Eaton

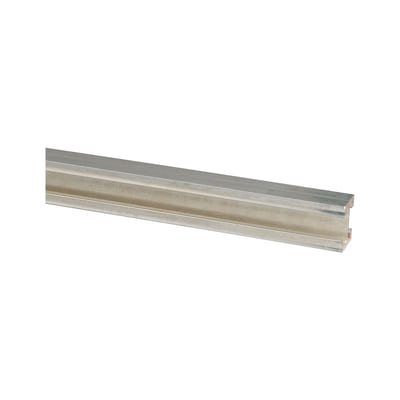

T-Profile Busbar 500mm² Tinned Cl.2
