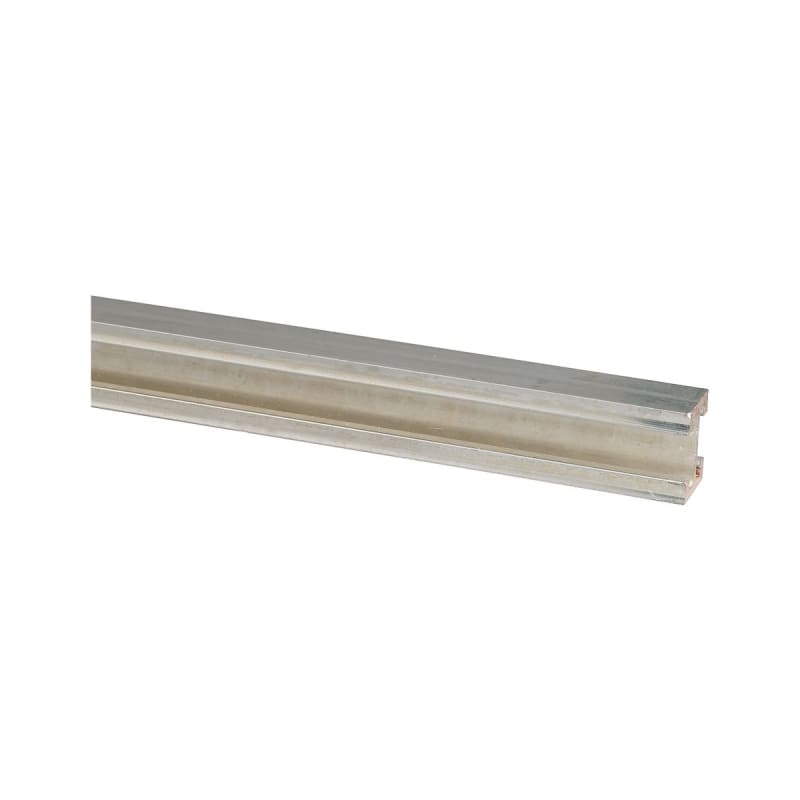

T-Profile Busbar 500mm² Tinned Cl.2

Eaton CU-BAR-500/T is an E-Cu double T-profile busbar with 500 mm² cross section in tinned copper for corrosion resistance. Length 2400 mm, rated 1250 A nominal current for use with 60 mm and 185 mm profile busbar systems. Compatible with BBS-3/PR, BBS-1/PR and BBS-3/FL-185 assemblies.

Manufacturer part number (MPN)

CU-BAR-500/T

EAN / GTIN

4015081069293

Sales unit

pcs

Package quantity

32 pcs

Eaton catalogue number

107166

Depth

2400 mm

Height

40 mm

Width

30 mm

Weight

10.44 kg

Compliances

IEC 60439-1; UL CSA09 (refer to approbation report); CE marking; UL508A; CSA-C22.2 No. 14; RoHS conform

Certifications

North America (UL listed, CSA certified); CSA (File No. 236217); UL 508; UL (Category Control Number NMTR, NMTR7); UL (File No. E300273); EN 13061; CSA (Class No. 3211-37)

Functions

Current limiting circuit breaker, refer to approbation report; Profiled busbar; System for profile busbars; E-CU double T profile busbar

Used with

BBS-3/PR, BBS-1/PR, BBS-3/FL-185; Feeder circuits; 60 mm system; 185 mm system; System for profile busbar

Model

Profile

Nominal current

1250 A

Type

185 mm system 60 mm system System for profile busbar

Rated operation current (Ie)

1250 A

Rated uninterrupted current (Iu) of conductor

1200 A (720 mm², Tu=35 °C and Ts=65 °C); 950 A (500 mm², Tu=35 °C and Ts=65 °C)

Voltage rating (UL CSA 13)

Max. 600 V AC

Cross section

500 mm²

Degree of protection

Feeder circuits

Distance between busbar centers

185 mm; 60 mm

Material

Copper, tinned

Surface protection

Tinned

Flexible

No

Length

2400 mm

Rated current In

1250 A

Country of origin

Germany

HS Code

8536.90
