Eaton Touch display

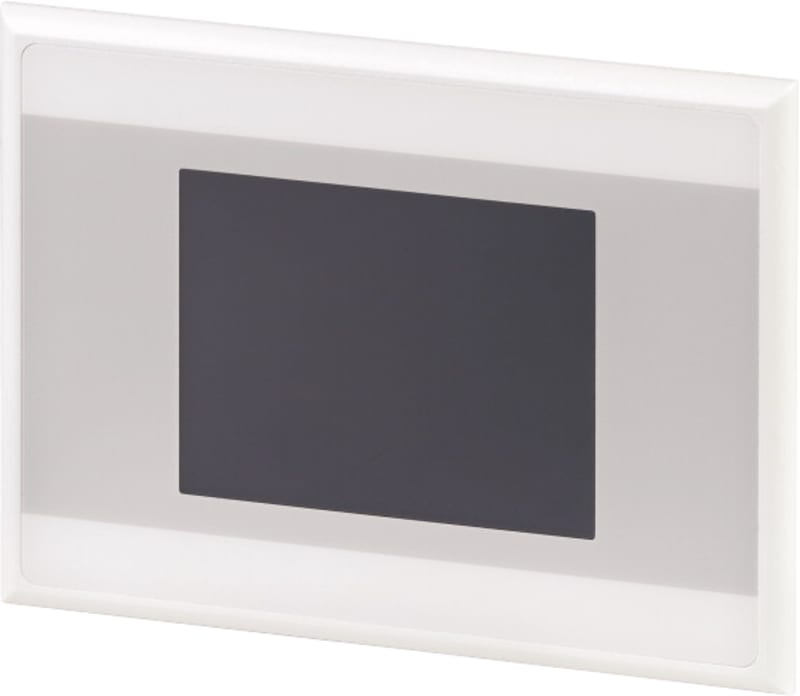

Eaton XV-102-B0-35TQR-10-PLC Touch display.

Manufacturer part number (MPN)

XV-102-B0-35TQR-10-PLC EAN / GTIN: 7640130095656 Sales unit: pcs Eaton catalogue number: 140018 Depth: 136 mm Height: 30 mm Width: 100 mm Weight: 0.245 kg Features: Portrait format; Slot for SD card; UL508, cUL approvals; USB device; Fanless CPU and system cooling, natural convection-based passive cooling; Ethernet interface Fitted with: Message system (incl. buffer and confirmation); SW interfaces; Color display; Printer output; 1 x USB device (built-in interface); Message indication; Recipes; Numeric keyboard; Alpha numeric keyboard; 1 x Ethernet 10/100 Mbps (built-in interfaces) Fuse type: Built-in fuse (not accessible) Enclosure material: Plastic Supply voltage at AC Supply voltage at AC Supply voltage at AC Supply voltage at AC Supply voltage at DC - max: 28.8 VDC Supply voltage at DC - min: 20.4 VDC Width of the front: 136 mm Product category: HMI-PLC (integrated SPS function) Resolution: 320 x 240 px QVGA Air pressure: 795 - 1080 hPa (operation) Explosion safety category for dust: ATEX dust-ex-protection II 3D Ex II T70°C IP5x: Zone 22, Category 3D; ATEX dust-ex-protection, in relation to CE Display size: 70 x 53 mm Backup time: 10 years, typ. (time at zero voltage) Memory capacity: 64,000 kByte Ambient operating temperature - max: 50 °C Ambient operating temperature - min: 0 °C Built-in depth: 25 mm Equipment heat dissipation, current-dependent Pvid: 5 W Front height: 100 mm Number of buttons (programmable function): 0 Number of buttons with LED: 0 Number of grey-scales/blue-scales of display: 0 Number of HW-interfaces (industrial ethernet): 1 Number of HW-interfaces (other): 0 Battery runtime: Back-up of real-time clock: CR 2032 (190 mA/h), zero maintenance (soldered) Voltage type: DC Conditions of acceptability: The unit must be supplied via a SELV source.; The following end-product enclosures are required: Fire; UL/CSA; The investigated Pollution Degree is: 2; The provided Ethernet Connection is only allowed to connect to inhouse networks. Operating system: Windows CE 5.0 (license included) Mounting method: Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18"); Flush mounting; Flush mounting - Inclination from vertical: ±45° (if using natural convection) Display contrast ratio: 300:1 Number of slots: 1 (for SD-Card) Display lighting: LED; Dimmable via software Display type: Standard front with standard membrane (fully enclosed); Color display, TFT; TFT Protection against polarity reversal: Yes; Yes, for supply voltage (Siemens MPI optional) Relative humidity: 10 - 95 % (non-condensing) Lifespan: 40,000 h (Service life of back-lighting) Residual ripple: ≤ 5 % (input voltage) Rated control supply voltage: 24 V DC (UAUX, -20 %/+25 %); 24 V DC (UPOW, -20 %/+25 %) Degree of protection: IP20, rear; IP65 Luminance intensity: 250 cd/m² Degree of protection (front side): NEMA 4X; IP65 Number of colors of the display: 65536 Vibration resistance: According to IEC/EN 60068-2-6 Processor: RISC CPU, 32 Bit, 400 MHz RoHs conformity: Yes Memory: SD Memory Card Slot: SDA Specification 1.00 (External); 32 kByte internal NVRAM (retained data); 64 MByte internal DRAM (OS, Program and data memory); 128 MByte internal NAND-Flash (can be used for data backup) Functions: Additional software components, loadable; Process default value (input) possible; Process value representation (output) possible Touch technology: Resistive touch; Glass with film touch sensor; Touch sensor (glass with foil), Resistive touch protective screen Model: Insulating enclosure and front plate Interfaces: USB 2.0 device (not galvanically isolated); Ethernet (100Base-TX/10Base-T) Voltage dips: ≤ 10 ms from rated voltage (24 V DC); 5 ms from undervoltage (19.2 V DC) Number of HW-interfaces (parallel): 0 Number of HW-interfaces (RS-232): 0 Number of HW-interfaces (RS-422): 0 Number of HW-interfaces (RS-485): 0 Number of HW-interfaces (serial TTY): 0 Number of HW-interfaces (USB): 1 Number of HW-interfaces (wireless): 0 Number of interfaces (PROFINET): 0 Number of online/runtime languages: 100 Number of password levels: 200 Number of pixels (horizontal): 320 Number of pixels (vertical): 240 Number of system buttons: 1 Operating temperature - max: 50 °C Operating temperature - min: 0 °C Screen size (diagonal): 3.5 in Static heat dissipation, non-current-dependent Pvs: 5 W Permissible voltage: 18.0 - 31.2 V DC, absolute with ripple; 35 V DC (for a duration of < 100 ms); 19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %); 18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %) Potential isolation: Supply voltage UAUX: no; Power supply: no Power consumption: Max. 5 W; 5 W Protocol: TCP/IP; MODBUS; Other bus systems; EtherNet/IP Rated operational voltage: 24 V DC (power-supply - safety extra low voltage) Shock resistance: Mechanical, According to IEC/EN 60068-2-27 Certified for UL hazardous location division 1: No Certified for UL hazardous location division 2: No Certified for UL hazardous location group A (acetylene): No Certified for UL hazardous location group B (hydrogen): No Certified for UL hazardous location group C (ethylene): No Certified for UL hazardous location group D (propane): No Certified for UL hazardous location group E (metal dusts): No Certified for UL hazardous location class I: No Certified for UL hazardous location class II: No Certified for UL hazardous location class III: No Supporting protocol for EtherCAT: No Supply voltage DC: 20.4–28.8 V Number of HW-interfaces industrial Ethernet: 1 Number of HW-interfaces USB: 1 With SW interfaces: Yes Supporting protocol for TCP/IP: Yes Supporting protocol for PROFIBUS: No Supporting protocol for CAN: No Supporting protocol for INTERBUS: No Supporting protocol for ASI: No Supporting protocol for KNX: No Supporting protocol for Modbus: Yes Supporting protocol for Data-Highway: No Supporting protocol for DeviceNet: No Supporting protocol for SUCONET: No Supporting protocol for LON: No Supporting protocol for PROFINET IO: No Supporting protocol for PROFINET CBA: No Supporting protocol for SERCOS: No Supporting protocol for Foundation Fieldbus: No Supporting protocol for EtherNet/IP: Yes Supporting protocol for AS-Interface Safety at Work: No Supporting protocol for DeviceNet Safety: No Supporting protocol for INTERBUS-Safety: No Supporting protocol for PROFIsafe: No Supporting protocol for SafetyBUS p: No Supporting protocol for other bus systems: Yes Radio standard Bluetooth: No Radio standard WLAN 802.11: No Radio standard GPRS: No Radio standard GSM: No Mobile communications standard 3G (UMTS): No IO link master: No Type of display: TFT Colour display: Yes Number of colours of the display: 65536 Screen diagonal: 3.5 inch Number of pixels, horizontal: 320 Number of pixels, vertical: 240 Usable project memory/user memory: 64000 kByte With numeric keyboard: Yes With alpha numeric keyboard: Yes With touch screen: Yes With message indication: Yes With message system (incl. buffer and confirmation): Yes Process value representation (output) possible: Yes Process default value (input) possible: Yes With recipes: Yes With printer output: Yes Number of online languages: 100 Additional software components, loadable: Yes Degree of protection (IP), front side: IP65 Operating temperature: 0–50 °C Suitable for rail mounting: No Wall mounting/direct mounting: No Suitable for safety functions: No Height of the front: 100 mm Country of origin: Czechia

HS Code

8537.10

• EAN 7640130095656
• SAP 1000363014
• Code 8131686
