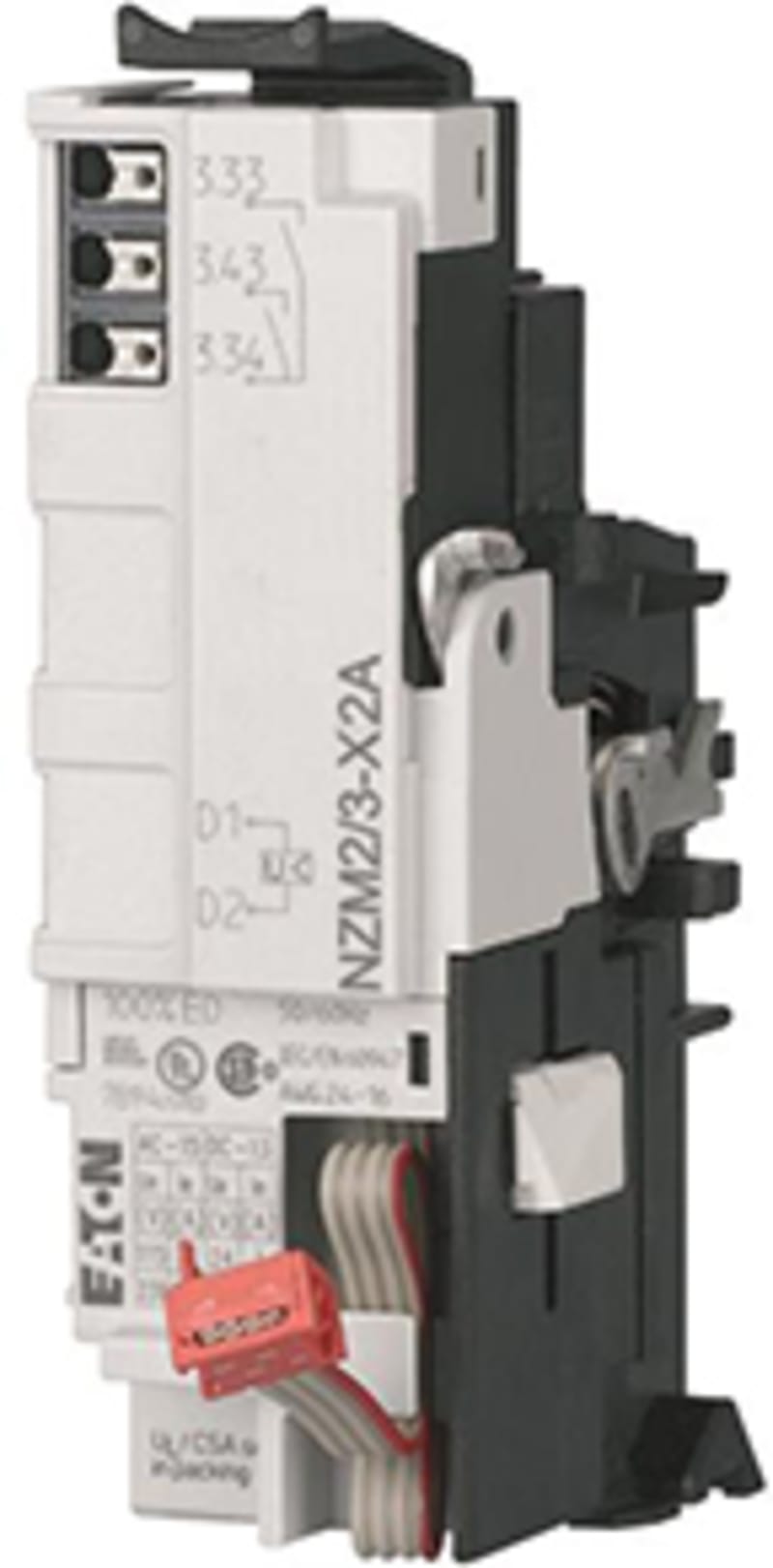

Eaton NZM2/3-X2A

Eaton NZM2/3-X2A is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 189722; Depth: 115 mm; Height: 65 mm; Width: 75 mm; Weight: 0.06 kg.

Manufacturer part number (MPN)

NZM2/3-X2A

EAN / GTIN

4015081877171

Sales unit

pcs

Eaton catalogue number

189722

Depth

115 mm

Height

65 mm

Width

75 mm

Weight

0.06 kg

Compliances

UL/CSA; IEC; RoHS conform

Certifications

UL listed; CSA (Class No. 1437-01); CSA certified; UL (Category Control Number DIHS); CE marking; UL (File No. E140305); IEC60947; UL489; CSA-C22.2 No. 5-09; CSA (File No. 22086)

Accessory/spare part type

Relay module; Other; Accessory

Frame

NZM2/3

Type

Relay module

Overvoltage category

III

Pollution degree

2

Rated control voltage (relay contacts)

24 V AC; 24 V DC; 240 V AC

Rated impulse withstand voltage (Uimp)

4 kV AC

Rated insulation voltage (Ui)

250 V

Rated operational current

1 A (230 V AC-1, relay contacts); 1 A (24 V DC-1, relay outputs); 1 A (24 V AC-1, relay contacts); 1 A (110 V AC-1, relay contacts)

Switching capacity (reference value) - min

0.1 mA / 0.1 VDC

Connection type

With push in terminal

Number of relays

2

Strip length

8 mm (supply connection)

Terminal capacity (solid cable)

0.2 mm² - 1.5 mm² (1x) at supply connection

Terminal capacity (stranded cable)

0.25 mm² - 0.75 mm² (1x) at supply connection (uninsulated ferrule according to DIN46224 / 1); 0.25 mm² - 1.5 mm² (1x) at supply connection (insulated ferrule according to DIN46224 / 4); 0.25 mm² - 1.5 mm² (1x) at supply connection; 24 - 16 AWG (1x) at relay contacts

Accessory

Yes

Spare part

No

Country of origin

Romania

HS Code

8538.90
