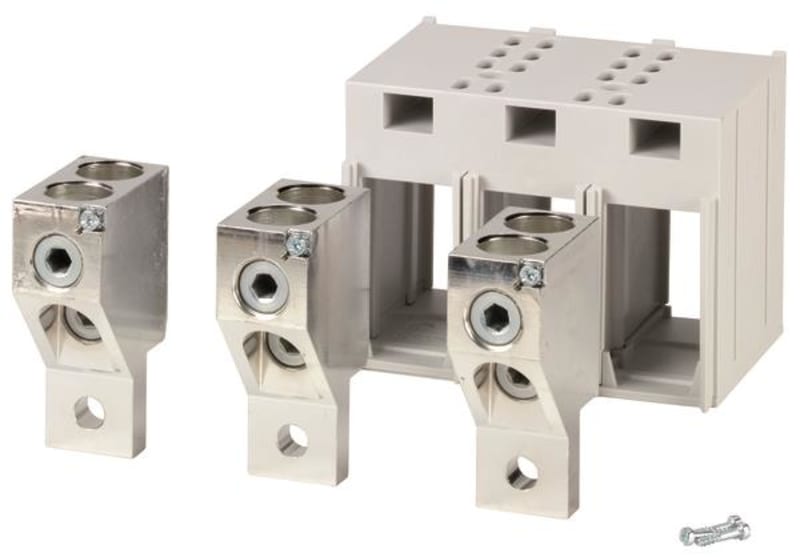

Eaton Al/Cu Terminals 2X 50-240 3 Pcs
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZM3-XKA2 Al/Cu Terminals 2X 50-240 3 Pcs.
Technical Specifications
- Manufacturer part number (MPN)
- NZM3-XKA2
- EAN / GTIN
- 4015082667887
- Sales unit
- pcs
- Eaton catalogue number
- 271461
- Depth
- 92.5 mm
- Height
- 102 mm
- Width
- 137 mm
- Weight
- 1.162 kg
- Compliances
- IEC; UL/CSA; RoHS conform
- Certifications
- CSA (File No. 22086); UL (Category Control Number DIHS); IEC60947; CSA (Class No. 1432-01); CE marking; UL (File No. E31593); CSA-C22.2 No. 5-09; UL489; UL listed; CSA certified
- Model
- Other
- Amperage Rating
- 630 A (IEC), 550 A (UL/CSA)
- Frame
- NZM3
- Number of poles
- Three-pole
- Suitable for
- Copper cable; Three-pole
- Type
- Accessory Tunnel terminal
- Used with
- NZM3, PN3, N(S)3
- Terminal capacity (stranded cable)
- Max. 500 AWG/kcmil (2x); Max. 500 AWG/kcmil (1x); 50 mm² - 240 mm² (1x); 50 mm² - 240 mm² (2x)
- Suitable for number of poles
- 3
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082667887
- SAP 1000014837
- Code 8115646
Product Documentation
