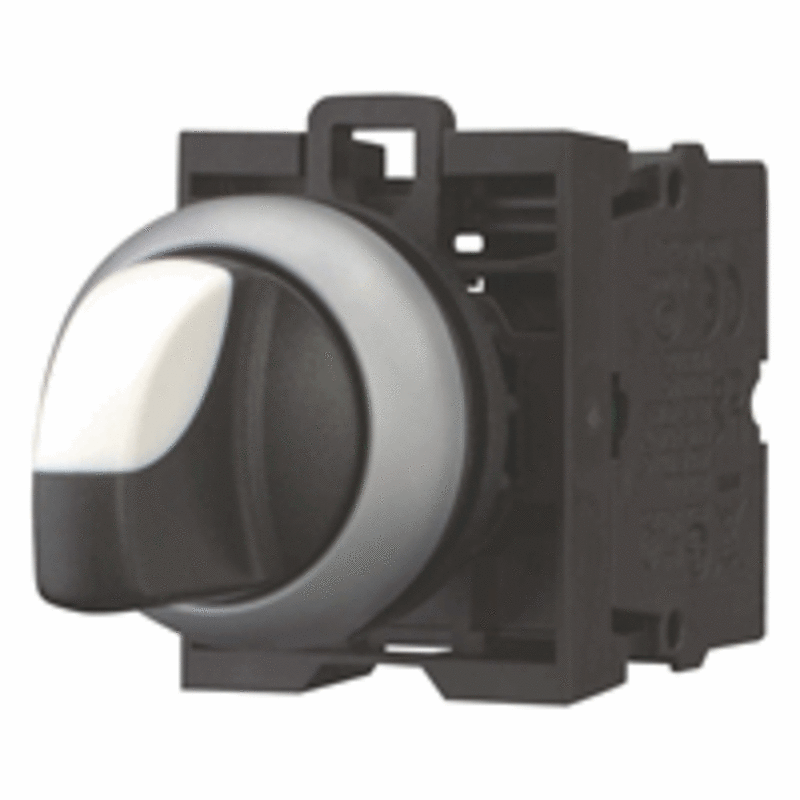

Eaton M22 Complete Rotary Switch 1NO 2-Position Latched
Part numberM22-WRK/K10EAN / GTIN4015082165185HS code8538.90
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-WRK/K10 complete rotary switch, 1NO contact, 2 positions (0-1), latched.
Technical Specifications
- Manufacturer part number (MPN)
- M22-WRK/K10
- EAN / GTIN
- 4015082165185
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216518
- Depth
- 130 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.028 kg
- Certifications
- CSA; CSA Class No.: 3211-03; CSA-C22.2 No. 94-91; UL 508; CE; VDE 0660; CSA File No.: 012528; IEC/EN 60947-5; UL; UL File No.: E29184; UL Category Control No.: NKCR; IEC/EN 60947; CSA-C22.2 No. 14-05; DNV; GL; LR
- Actuator color
- Black
- Actuator function
- Switching function latching; Maintained
- Actuator type
- Toggle
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- With thumb-grip; Classical
- Electric connection type
- Screw connection
- Fitted with
- Front ring
- Functions
- Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
- Number of switch positions
- 2
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- No
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Rated operational current for specified heat dissipation (In)
- 6 A
- Degree of protection
- NEMA 12; IP66
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 2000 Operations/h
- Operating torque
- 0.3 Nm
- Product Category
- RMQ-Titan
- Size
- Front diameter: 29.7 mm
- Switching angle
- 60 °
- Type
- Selector switch actuator
- Hole diameter
- 22 mm
- Colour button
- Black
- Suitable for lighting
- No
- Spring-return
- No
- Colour front ring
- Chrome
- Type of electric connection
- Screw connection
- With light source
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Type of control element
- Wing knob
- Switching function latching
- Yes
- Number of contacts as normally open contact
- 1
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082165185
- SAP 1000014400
- Code 8119734
Product Documentation
Document preview: COMPLETE VRISWITCH 1S 0-1 FAST (M22-WRK/K10) — Specification Data Sheet (OEM)
More from Eaton
Eaton

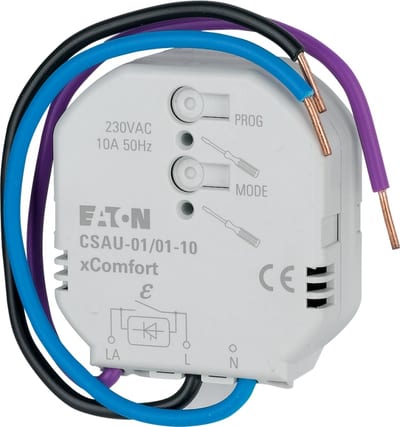

10 A Bryteaktuator (CSAU-01/01-10)
Eaton

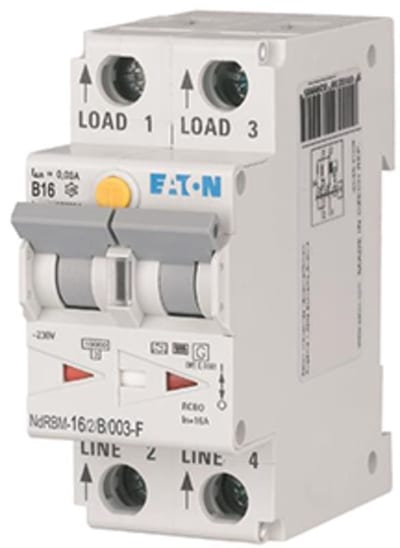

Residual current circuit breaker with overcurrent xDigital 16A B Type-F
300492
Eaton

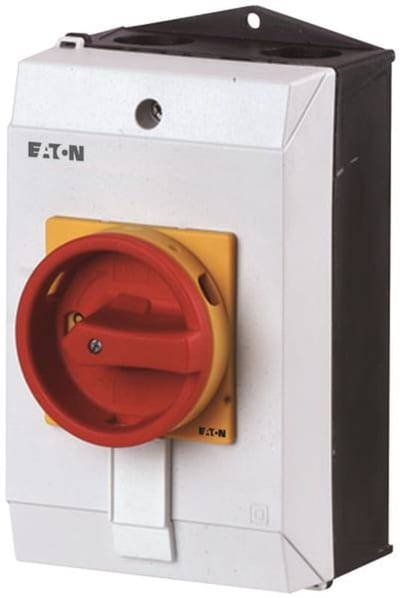

Safety switch 3P 1NO1NC IN25A
P1-32/I2/SVB/HI11
Eaton
Eaton NZMH2-4-VX160/VAR Molded-Case Circuit Breaker 4-Pole 160A 150KA
Eaton
Key Switch, Complete in Enclosure
M22-WRS/KC11/I
Eaton

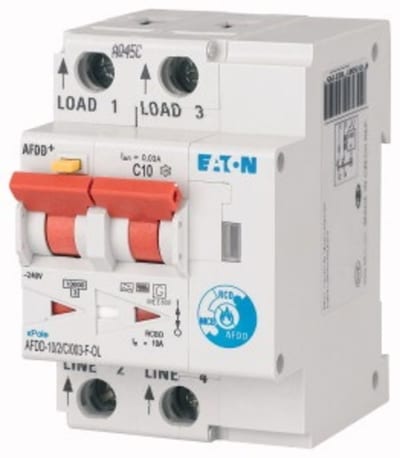

AFDD-15/2/C/003-F-OL (MB-300181)
Eaton

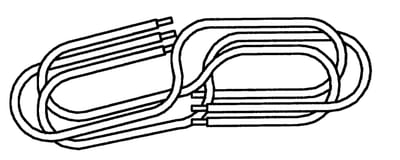

Matte silencer loop 10 MM2 Class 1, 3 poles
