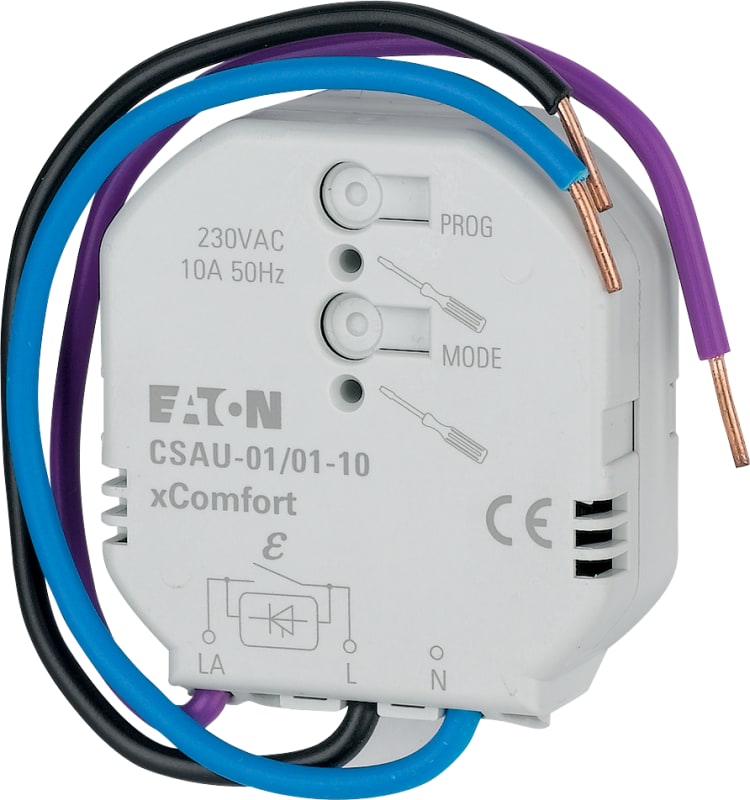

10 A Bryteaktuator (CSAU-01/01-10)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton 10 A Bryteaktuator (CSAU-01/01-10) is listed under Electrical Components / Home Automation. Sales unit: pcs; Package quantity: 60 pcs; Product segment: Smart home; Eaton catalogue number: 172937; Depth: 65 mm; Height: 18 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CSAU-01/01-10
- EAN / GTIN
- 4015081695256
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Product segment
- Smart home
- Eaton catalogue number
- 172937
- Depth
- 65 mm
- Height
- 18 mm
- Width
- 65 mm
- Weight
- 0.038 kg
- Compliances
- RoHS conform
- Features
- Radio frequent bidirectional; Local operation/hand operation
- Bus system operating type
- xComfort; Radio frequent
- Actuation function
- Switching
- Bus system product type
- Actuator
- Built-in installation box depth - min
- 18 mm
- Number of inputs (binary)
- 0
- Number of switching contacts - max
- 1
- Rated operating voltage (Ue) - max
- 230 V
- Rated operating voltage (Ue) - min
- 230 V
- Amperage rating
- 10 A
- Fitted with
- LED indication; Bus connection
- Switching current - max
- 10 A
- Switching power - max
- 2300 W
- Width in number of modular spacings
- 3
- Output power
- 2300 W
- Power supply
- Mains
- Degree of protection
- IP20
- Functions
- Bus module detachable
- Mounting method
- Flush mounted (plaster); Flush mounting
- Suitable for
- C-load
- Power consumption
- 0.23 W
- Number of linkable devices
- 32
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- Yes
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- None
- Radio frequency bidirectional
- Yes
- Local operation/hand operation
- Yes
- With LED indication
- Yes
- Max. switching power
- 2300 W
- Suitable for C-load
- Yes
- Max. number of switching contacts
- 1
- Max. switching current
- 10 A
- Rated current
- 10 A
- Rated operating voltage
- 230 V
- Different phases connectable
- No
- With bus connection
- Yes
- Bus module detachable
- Yes
- Min. depth of built-in installation box
- 18 mm
- Modular expandability
- No
- Country of origin
- Czechia
