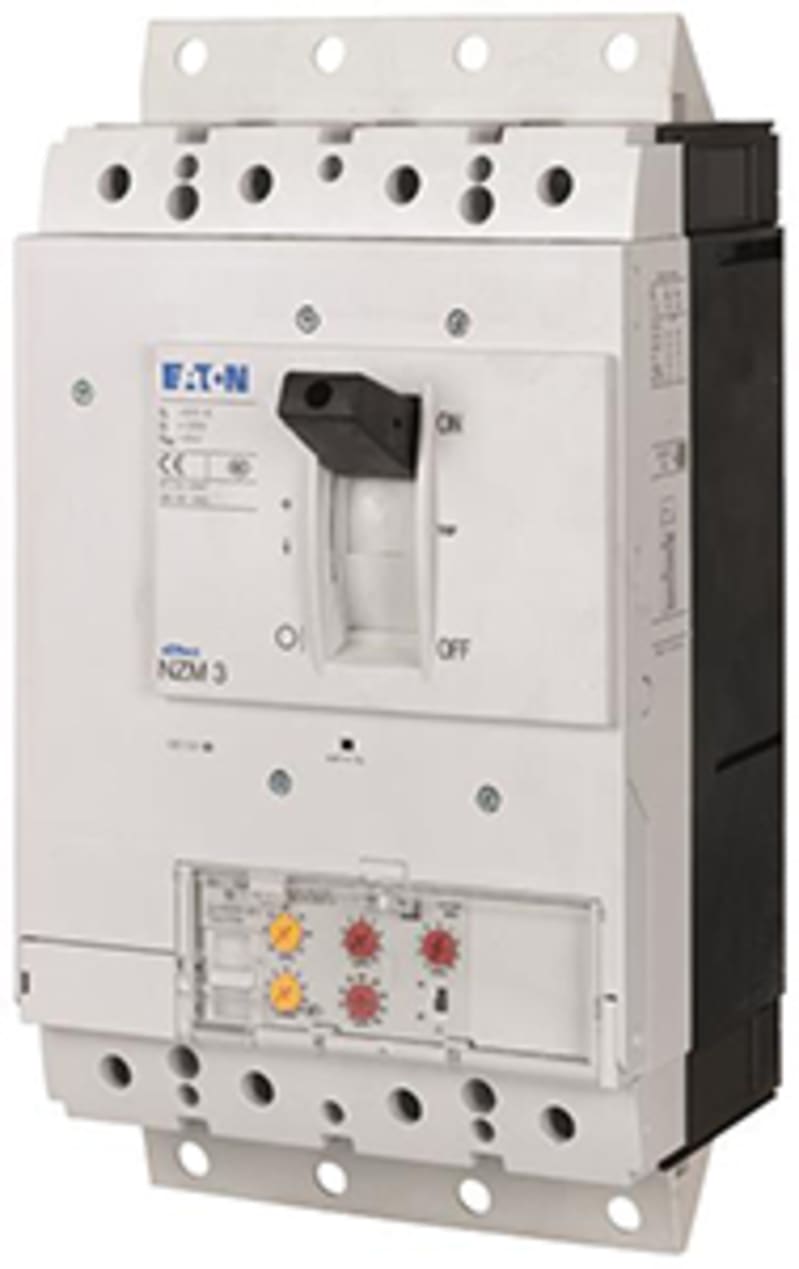

Eaton Pluggable powerbr NZMS3-4-VE400/250-SVE
Part numberNZMS3-4-VE400/250-SVEEAN / GTIN4015081650132HS code8536.20
Electrical Components
Moulded Case Circuit Breakers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZMS3-4-VE400/250-SVE Pluggable effektbr.400/250A/4p.
Technical Specifications
- Manufacturer part number (MPN)
- NZMS3-4-VE400/250-SVE
- EAN / GTIN
- 4015081650132
- Sales unit
- pcs
- Eaton catalogue number
- 168537
- Depth
- 335 mm
- Height
- 215.2 mm
- Width
- 185 mm
- Weight
- 10.04 kg
- Compliances
- RoHS conform
- Amperage Rating
- 400 A
- Features
- Protection unit; Motor drive optional
- Number of poles
- Four-pole
- Equipment heat dissipation, current-dependent
- 72 W
- Electrical connection type of main circuit
- Screw connection
- Handle type
- Rocker lever
- Instantaneous current setting (Ii) - max
- 4400 A
- Instantaneous current setting (Ii) - min
- 800 A
- Overload current setting (Ir) - max
- 400 A
- Overload current setting (Ir) - min
- 200 A
- Short delay current setting (Isd) - max
- 4000 A
- Short delay current setting (Isd) - min
- 400 A
- Voltage rating
- 690 V - 690 V
- Degree of protection
- IP20
- Mounting Method
- Built-in device plug-in technique
- Number of auxiliary contacts (change-over contacts)
- 0
- Number of auxiliary contacts (normally closed contacts)
- 0
- Number of auxiliary contacts (normally open contacts)
- 0
- Position of connection for main current circuit
- Back side
- Document Name
- Description Action
- Rated permanent current Iu
- 400 A
- With integrated under voltage release
- No
- Overload release current setting
- 200–400 A
- Rated voltage
- 690 V
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Rocker lever
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 65 kA
- Adjustment range short-term delayed short-circuit release
- 400–4000 A
- Adjustment range undelayed short-circuit release
- 800–4400 A
- Suitable for DIN rail (top hat rail) mounting
- No
- Integrated earth fault protection
- No
- Motor drive optional
- Yes
- Device construction
- Built-in device plug-in technique
- DIN rail (top hat rail) mounting optional
- No
- Complete device with protection unit
- Yes
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4015081650132
- SAP 1200601019
- Code 82988807
Product Documentation
Document preview: Eaton Pluggable powerbr — Specification Data Sheet (OEM)
More from Eaton
Eaton
Soft starter DS7, 24
171745
Eaton
Opt. sensor, DC, 18mm (13100AQD07)
Eaton
Lock cylinder, square 8 mm xE
NWS-SHE/4K/8
Eaton
DC1 Variable-frequency drive 2,2kW (DC1-12011NB-A20N)
Eaton
Fr.plate HxB=150X600 45mm H
292406
Eaton
Busbaradapter (BBA0C-16)
Eaton
Glassdoor HxB=2060X800 White (BPZ-DT-800/20-P-W)
Eaton
Eff.m.Darw for kont/startere
EU5C-SWD-PF1-1
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
