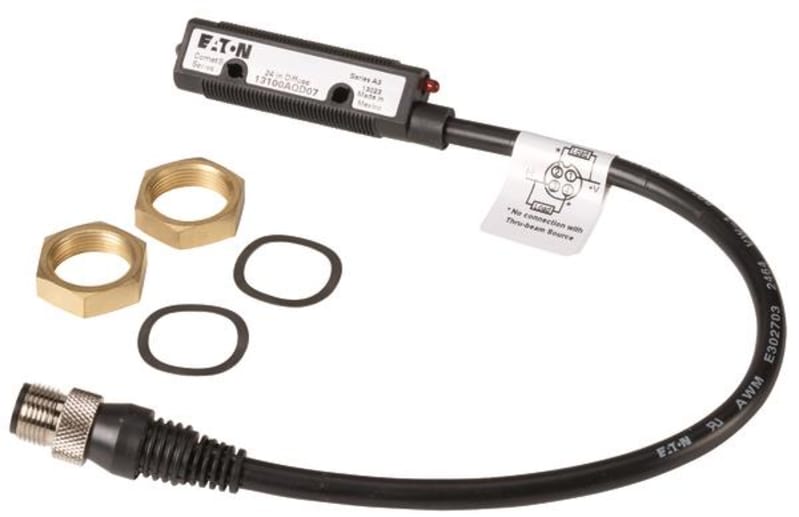

Opt. sensor, DC, 18mm (13100AQD07)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Opt. sensor, DC, 18mm (13100AQD07) is listed under Sensors & Instrumentation / Photoelectric Sensors. HS code: 8536.90; Sales unit: pcs; Voltage type: DC; Max. output current: 250 mA; Housing material: Plastic; Suitable for safety functions: No.
Technical Specifications
- Manufacturer part number (MPN)
- 13100AQD07
- EAN / GTIN
- 4015081323746
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage type
- DC
- Max. output current
- 250 mA
- Housing material
- Plastic
- Suitable for safety functions
- No
- Ambient temperature
- -40–70 °C
- With time function
- No
- With reflector
- No
- Switching frequency
- 500 Hz
- Number of semiconductor outputs with signalling function
- 2
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/NPN
- Type of switch function
- Programmable/configurable
- Rated control supply voltage DC
- 10–30 V
- Operation agent-safety class
- Safety class 2
- Setting procedure
- Manual adjustment
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Laser protection class
- None
- Type of light
- Infrared light
- With monitoring function downstream switching devices
- No
- With restart blockage
- No
- Response time
- 1 ms
- Type of safety according to IEC 61496-1
- 1
- Pre failure notice
- No
- Material of optical surface
- Plastic
- Material of cable sheath
- Polyvinyl chloride (PVC)
- Degree of protection (IP)
- IP67
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- Analogue output 4 mA ... 20 mA
- No
- AWG-number
- 22
- Diameter sensor
- 18 mm
- Min. reflector distance
- 0 mm
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Length of sensor
- 56 mm
- Max. switching distance
- 610 mm
- With other analogue output
- No
- Sensing mode
- Light-/dark switching
- Country of origin
- Mexico
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081323746
- SAP 1200606869
- Code 82994624
Product Documentation
