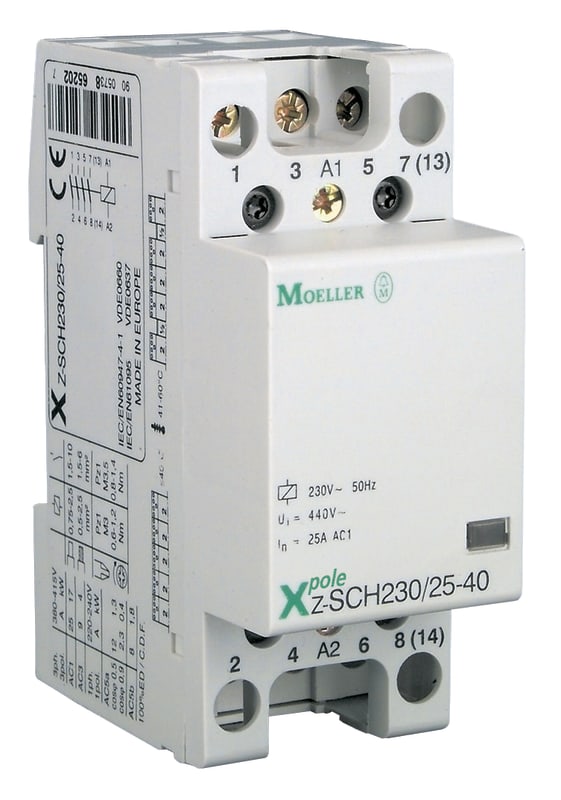

Installationscontactor (Z-SCH230/25-40)
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton Z-SCH230/25-40 Contactor 4S Modular.
Technical Specifications
- Manufacturer part number (MPN)
- Z-SCH230/25-40
- EAN / GTIN
- 9007912220565
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Eaton catalogue number
- 248847
- Depth
- 85 mm
- Height
- 60 mm
- Width
- 35 mm
- Weight
- 0.22 kg
- Compliances
- RoHS conform
- Certifications
- CE
- Features
- Additional equipment possible
- Amperage Rating
- 25 A
- Ambient operating temperature - min
- -40 °C
- Equipment heat dissipation, current-dependent
- 10 W
- Heat dissipation capacity
- 0 W
- Heat dissipation per pole, current-dependent
- 0 W
- Rated operational current for specified heat dissipation (In)
- 25 A
- Static heat dissipation, non-current-dependent
- 0 W
- Frequency rating
- 50 Hz
- Incandescent lamp load - max
- 3000 W
- Load fluorescent lamp - max
- 1160 VA
- Load fluorescent lamp (duo circuit) - max
- 2552 VA
- Load fluorescent lamp (parallel compensated) - max
- 1044 VA
- Rated operating voltage (Ue) - max
- 440 V
- Rated operating voltage (Ue) - min
- 440 V
- Voltage rating (excitation) - max
- 253 V
- Voltage rating (excitation) - min
- 195.5 V
- Voltage type
- AC
- Built-in depth
- 60 mm
- Degree of protection
- IP40
- Number of contacts (normally closed contacts)
- 0
- Number of contacts (normally open contacts)
- 4
- Number of modular spacings
- 2
- Utility category
- 1
- Utilization category (according to EN IEC 60947-4-1)
- AC-1
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 9007912220565
- SAP 1000073182
- Code 8738719
Product Documentation
More from Eaton
Eaton
Residential Distribution Board G2 SideBySide 4-Row 106 mm
EP-501118
Eaton
Connection Cabinet B400 TN, with channel, dark
195382
Eaton
Residual current circuit breaker with overcurrent 40A C Type-F
MB-300070
Eaton
Eaton Connection
NZM2-XKA
Eaton
Eaton xPole PFIM Residual Current Circuit Breaker (RCCB) — Type A, 4-Pole, 40 A, 30 mA, Instantaneous
PFIM-40/4/003-A-MW
Eaton
AUXILIARY CONTACT MCB/RCBO 1
ZP-IHK
Eaton
Residual current circuit breaker with overcurrent 10A 3P C 30MAA (PKPM3-10/3/C/003-A)
Eaton
Residual current circuit breaker with overcurrent 40A 2P B 30MAA
PKP62-40/2/B/003-A
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy Z-SCH230/25-40?
- Z-SCH230/25-40 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is Z-SCH230/25-40.
- What is the HS code for Z-SCH230/25-40?
- The customs tariff (HS) code for Z-SCH230/25-40 is 8536.90.
- Who manufactures Z-SCH230/25-40?
- Z-SCH230/25-40 is a Eaton product in the Electrical Components range.
- Is a datasheet available for Z-SCH230/25-40?
- Yes — the Z-SCH230/25-40 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for Z-SCH230/25-40?
- The minimum order quantity is 1.
- Is Z-SCH230/25-40 available?
- Yes — Z-SCH230/25-40 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
