Residual current circuit breaker with overcurrent 40A C Type-F
Pricing
Request a quote
We reply within 24 hours
Product Description

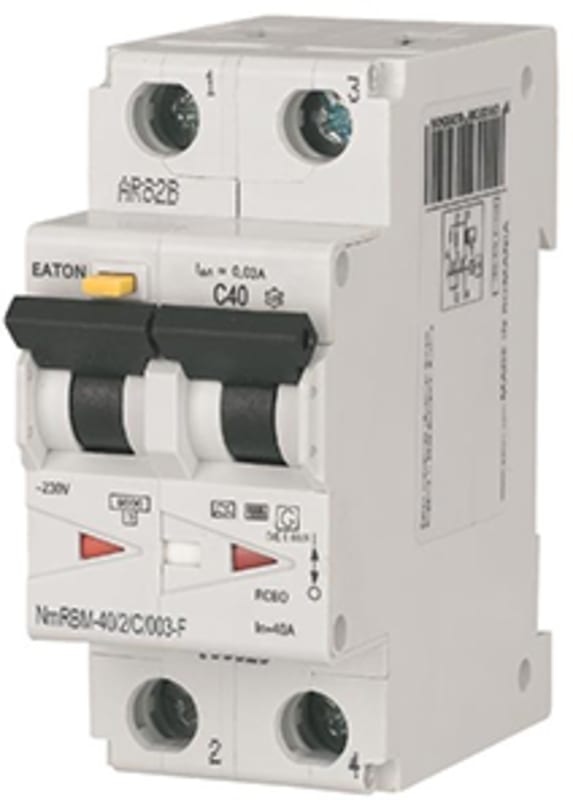

Eaton MB-300070 NmRB6-40/2/C/003-F.
Technical Specifications
- Manufacturer part number (MPN)
- MB-300070
- EAN / GTIN
- 9010238805743
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Rated current
- 40 A
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 250 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated fault current
- 0.03 A
- Leakage current type
- F
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 6 kA
- Disconnection characteristic
- Short-time delayed
- Surge current capacity
- 3 kA
- Voltage type
- AC
- Frequency
- 50 Hz
- Release characteristic
- C
- Concurrently switching neutral conductor
- No
- With interlocking device
- No
- Overvoltage category
- 3
- Pollution degree
- 2
- Ambient temperature during operating
- -25–40 °C
- Width in number of modular spacings
- 2
- Built-in depth
- 70 mm
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1–25 mm²
- Connectable conductor cross section multi-wired
- 1–25 mm²
- Flush-mounted installation
- No
- Mounting method
- DIN rail
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 9010238805743
- SAP 1200402307
- Code 82429397
Product Documentation
