AUXILIARY CONTACT MCB/RCBO 1
Pricing
Request a quote
We reply within 24 hours
Product Description

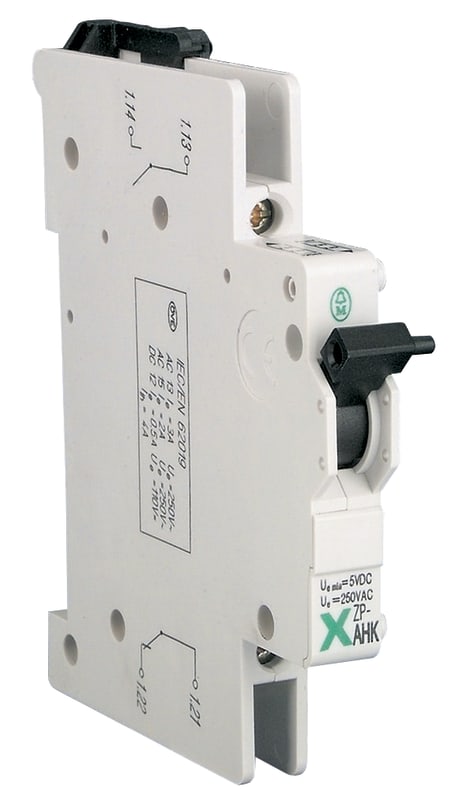

Eaton ZP-IHK Auxiliary Contact for elementaut/Residual current circuit breaker with overcurrent.
Technical Specifications
- Manufacturer part number (MPN)
- ZP-IHK
- EAN / GTIN
- 4015082484361
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Eaton catalogue number
- 286052
- Depth
- 80 mm
- Height
- 75 mm
- Width
- 8.8 mm
- Weight
- 0.043 kg
- Compliances
- RoHS conform
- Certifications
- EN45545-2; IEC 61373
- Used with
- Auxiliary contacts; Accessory for combined residual current/power circuit breaker; Accessory for miniature circuit breaker; Accessory
- Accessory/spare part type
- Auxiliary contacts
- Mounting method
- For fitting on left to: LS, FI/LS
- Additional equipment required
- Auxiliary switch
- Ambient operating temperature - max
- 75 °C
- Ambient operating temperature - min
- -35 °C
- Assembly width
- 0.5
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally closed contacts)
- 1
- Number of contacts (normally open contacts)
- 1
- Number of poles at main contact unit - max
- 2
- Number of switches (fault signal)
- 0
- Voltage type
- AC
- Functions
- Auxiliary switch
- Device fitting
- Universal
- Type
- Accessory Accessory for combined residual current/power circuit breaker Accessory for miniature circuit breaker
- Application
- Switchgear for industrial and advanced commercial applications
- Rated operational voltage (Ue) - max
- 230 V
- Rated switch current
- 3 A
- Suitable for current of main contact unit - max
- 6 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015082484361
- SAP 1000028085
- Code 8503463
Product Documentation
More from Eaton
Eaton

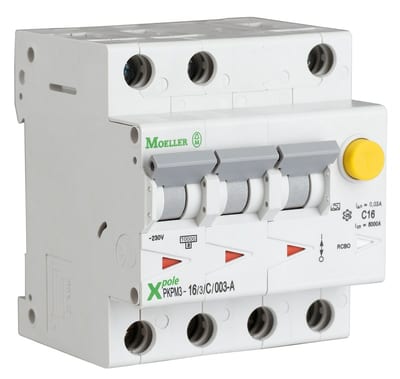

Residual current circuit breaker with overcurrent 10A 3P C 30MAA (PKPM3-10/3/C/003-A)
Eaton

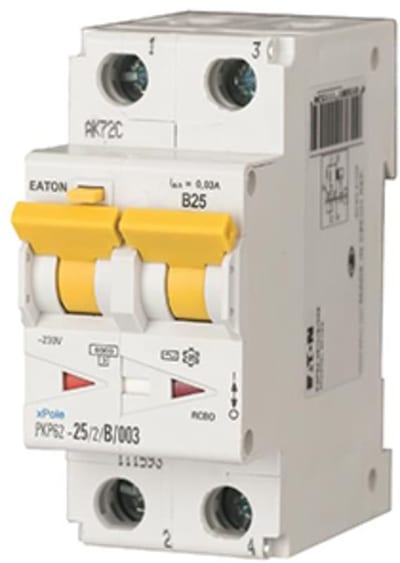

Residual current circuit breaker with overcurrent 40A 2P B 30MAA
PKP62-40/2/B/003-A
Eaton

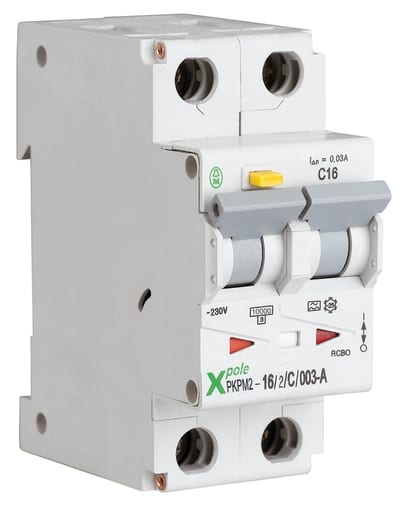

Residual current circuit breaker with overcurrent 16A 2P C 100MAA
PKPM2-16/2/C/01-A
Eaton

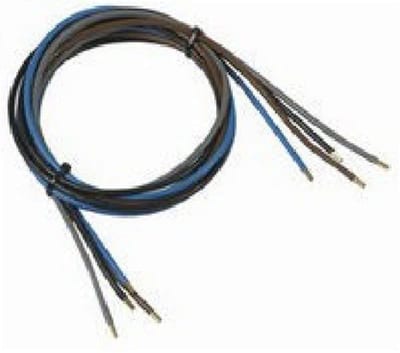

Meter Loop, 4-Pole, 16 mm²
