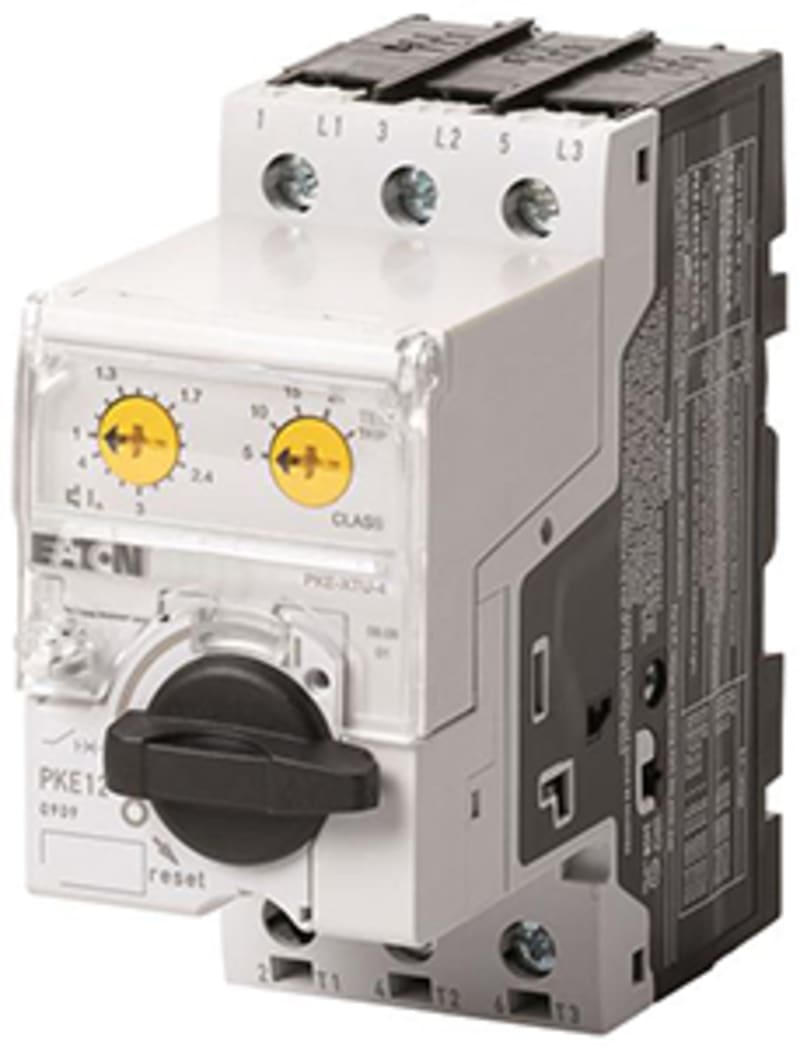

Complete PKE12 ST.TRIP 3-12A

Eaton PKE12/XTU-12 PKE Electronic motornvern.

Manufacturer part number (MPN)

PKE12/XTU-12

EAN / GTIN

4015081195435

Sales unit

pcs

Eaton catalogue number

121733

Depth

101 mm

Height

102.5 mm

Width

45 mm

Weight

0.42 kg

Certifications

IEC/EN 60947; UL; CSA; CSA Class No.: 3211-05; IEC/EN 60947-4-1; CSA-C22.2 No. 60947-4-1-14; UL 60947-4-1; CE; CSA File No.: 165628; VDE 0660; UL Category Control No.: NLRV; UL File No.: E36332

Catalog Notes

This is a product for Environment A (Industrial). In environment B (household) this device may cause undesirable radio interference. In this case the user may be obliged to take appropriate measures.

Shock resistance

25 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Altitude

Max. 2000 m

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection

Screw terminals

Equipment heat dissipation, current-dependent Pvid

3.6 W

Heat dissipation per pole, current-dependent Pvid

1.2 W

Rated operational current for specified heat dissipation (In)

12 A

Rated frequency - max

60 Hz

Rated frequency - min

50 Hz

Rated operational current (Ie)

12 A

Rated operational power at AC-3e, 220/230 V, 50 Hz

3 kW

Rated operational power at AC-3e, 380/400 V, 50 Hz

5.5 kW

Rated operational power at AC-3e, 440 V, 50 Hz

5.5 kW

Rated operational power at AC-3e, 500 V, 50 Hz

5.5 kW

Rated operational power at AC-3e, 690 V, 50 Hz

7.5 kW

Rated operational voltage (Ue) - max

690 V

Rated operational voltage (Ue) - min

690 V

Rated uninterrupted current (Iu)

12 A

Actuator type

Turn button

Features

Phase-failure sensitivity (according to IEC/EN 60947-4-1, VDE 0660 Part 102)

Fitted with

Standard knob

Functions

Motor protection; Phase failure sensitive; Overload release; Motor protection for heavy starting duty

Number of poles

Three-pole

Cut-out periods - min

≤ 500 ms, main conducting paths, AC-4 cycle operation

Degree of protection

Terminals: IP00; IP20

Lifespan, electrical

50,000 operations (at 400V, AC-3)

Lifespan, mechanical

50,000 Operations (Main conducting paths)

Operating frequency

60 Operations/h

Overload release current setting - max

12 A

Overload release current setting - min

3 A

Overvoltage category

III

Pollution degree

3

Product category

Motor protective circuit breaker

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

6000 V AC

Resistance per pole

7.7 mΩ

Suitable for

Also motors with efficiency class IE3

Temperature compensation

-5 - 40 °C to IEC/EN 60947, VDE 0660; -25 - 55 °C, Operating range

Assigned motor power at 115/120 V, 60 Hz, 1-phase

1 HP

Assigned motor power at 200/208 V, 60 Hz, 3-phase

3 HP

Assigned motor power at 230/240 V, 60 Hz, 1-phase

1.5 HP

Assigned motor power at 230/240 V, 60 Hz, 3-phase

3 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

7.5 HP

Assigned motor power at 575/600 V, 60 Hz, 3-phase

10 HP

Short-circuit current rating (group protection)

100 A, Class J, 600 V High Fault, max. Fuse, SCCR (UL/CSA); 100 kA, 600 V High Fault, Fuse, SCCR (UL/CSA)

Short-circuit release

Basic device fixed 15.5 x Iu, Trip Blocks; Delayed approx. 60 ms, Trip blocks; ± 20% tolerance, Trip blocks; Trip block fixed 15.5 x Ir

Switching capacity

12 A, General use UL/CSA; 12 A, AC-3 up to 690 V

Stripping length (main cable)

10 mm

Terminal capacity (flexible with ferrule)

2 x (1 - 6) mm², ferrule to DIN 46228; 1 x (1 - 6) mm², ferrule to DIN 46228

Terminal capacity (solid)

2 x (1 - 6) mm²; 1 x (1 - 6) mm²

Terminal capacity (solid/stranded AWG)

14 - 10

Tightening torque

1.7 Nm, Screw terminals, Main cable; 1 Nm, Screw terminals, Control circuit cables

Rated operation power at AC-3, 400 V

5.5 kW

With integrated auxiliary switch

No

Rated permanent current Iu

12 A

With integrated under voltage release

No

Rated operating voltage

690 V

Overload release current setting

3–12 A

Power loss

3.6 W

With thermal overload protection

Yes

Type of electrical connection of main circuit

Screw connection

Type of control element

Turn button

Switch off technique

Electronic

Rated operation power at AC-3, 230 V

3 kW

Rated short-circuit breaking capacity Icu at 400 V, AC

100 kA

Adjustment range undelayed short-circuit release

186 A

Phase failure sensitive

Yes

Device construction

Built-in device fixed built-in technique

Country of origin

Germany

HS Code

8536.20
