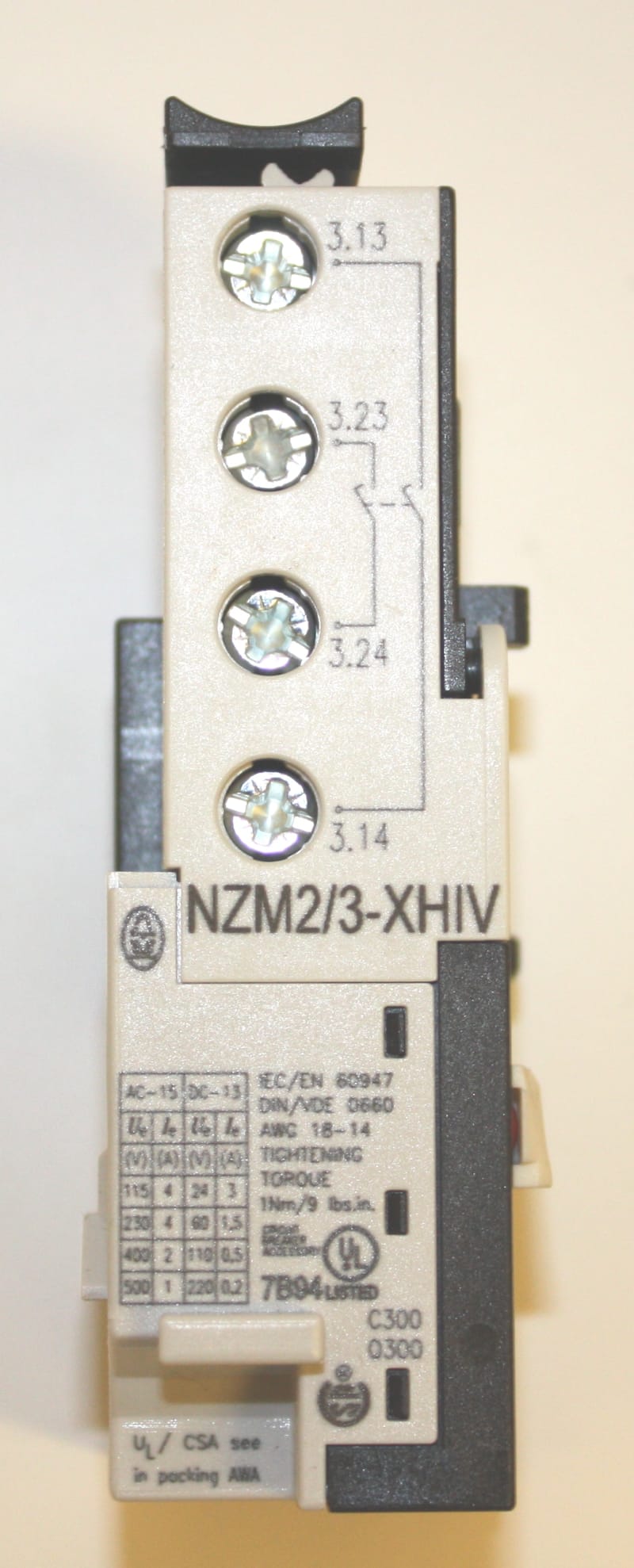

Eaton NZM2/3-XHIV Early-Make Auxiliary Contact for NZM2/3, 2 NO

The NZM2/3-XHIV is an early-make (leading) auxiliary contact block for Eaton NZM2 and NZM3 moulded-case circuit breakers, providing two normally-open contacts that close before the main poles. Rated 4 A at 220-240 V AC (AC-15), it signals imminent breaker closure to control circuits, PLC inputs or interlocks. Screw-terminal connection in a 30 × 90 × 42 mm integrable housing.

Manufacturer part number (MPN)

NZM2/3-XHIV

EAN / GTIN

4015082594305

Sales unit

pcs

Eaton catalogue number

259430

Depth

42 mm

Height

90 mm

Width

30 mm

Weight

0.076 kg

Compliances

RoHS conform

Certifications

UL listed; CSA-C22.2 No. 5-09; CSA certified; IEC60947; UL489; CSA (File No. 22086); CSA (Class No. 1437-01); UL (File No. E140305); UL (Category Control Number DIHS); CE marking

Model

Integrable

Special features

C300/R300 (auxiliary contacts, UL/CSA, pilot duty)

Used with

FAZ-B6 (max. miniature circuit breaker)

Conventional thermal current Ith of auxiliary contacts

4 A

Fuse short-circuit protection - max

10 A gG/gL

Rated operational current

2.5 A at 240 V AC (UL/CSA); 1 A at 250 V DC (UL/CSA)

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

4 A

Voltage rating at AC

500 V AC

Voltage rating at DC

220 VDC

Connection type

Screw connection

Lamp holder

None

Mounting Method

Other

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

2

Terminal capacity (solid/flexible conductor)

0.75 mm² - 2.5 mm² (2x) at auxiliary contacts with ferrule; 18 - 14 AWG (2x) at auxiliary contacts; 0.75 mm² - 2.5 mm² (1x) at auxiliary contacts with ferrule; 18 - 14 AWG (1x) at auxiliary contacts

Country of origin

Romania

HS Code

8538.90
