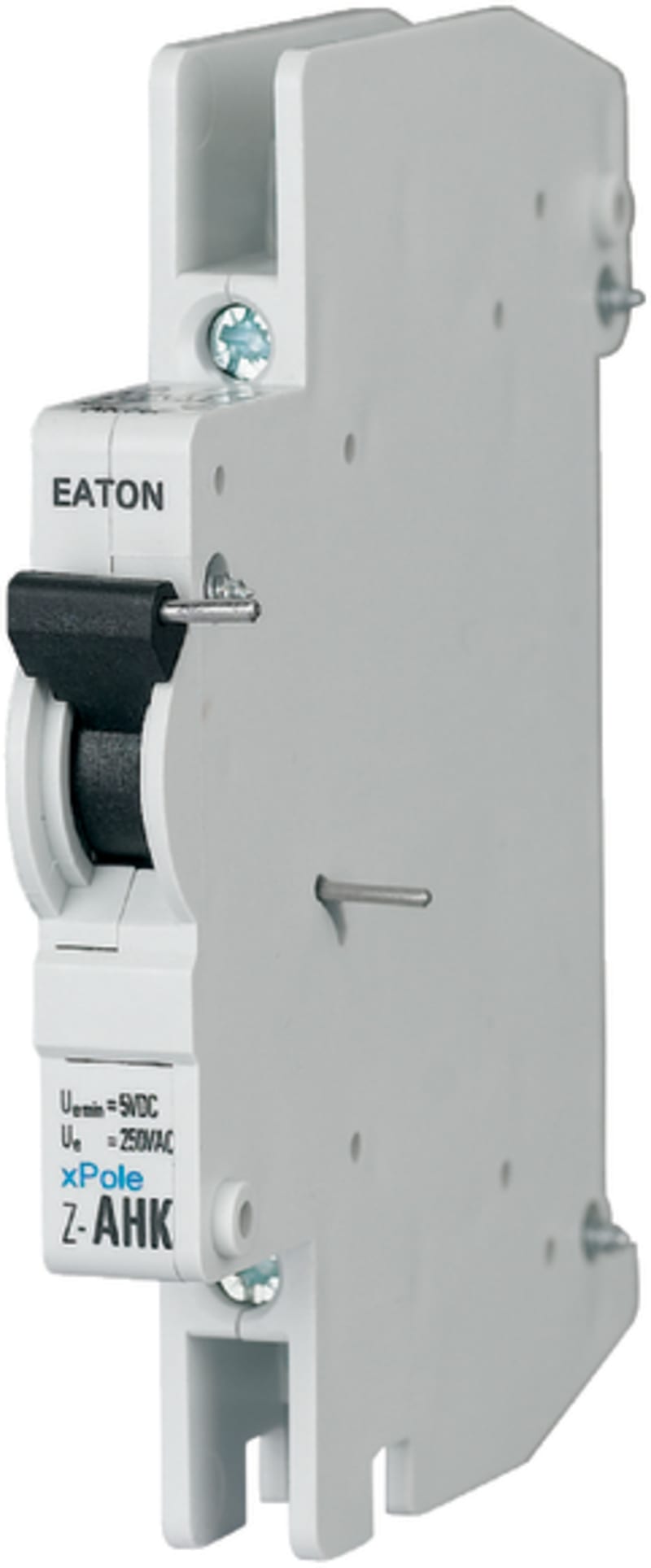

HJ.CONNECTOR ONLY F. Elementaut

Eaton 248433 Hjelpeutstyr for unit breakerer.

Manufacturer part number (MPN)

248433

EAN / GTIN

4015082484330

Sales unit

pcs

Package quantity

4 pcs

Eaton catalogue number

248433

Depth

80 mm

Height

75 mm

Width

8.8 mm

Weight

0.038 kg

Compliances

RoHS conform

Certifications

EN45545-2; IEC 61373

Used with

Auxiliary contacts; Accessory for combined residual current/power circuit breaker; Accessory; Accessory for miniature circuit breaker; Accessory for residual current circuit breaker

Accessory/spare part type

Auxiliary contacts

Mounting method

For fitting on left to: LS, FI/LS

Additional equipment required

Auxiliary switch

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-5 °C

Assembly width

0.5

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Number of poles at main contact unit - max

2

Number of switches (fault signal)

0

Voltage type

AC

Functions

Auxiliary switch

Device fitting

Universal

Type

Accessory Accessory for combined residual current/power circuit breaker Accessory for miniature circuit breaker Accessory for residual current circuit breaker

Application

Switchgear for industrial and advanced commercial applications

Rated operational voltage (Ue) - max

230 V

Rated switch current

3 A

Suitable for current of main contact unit - max

4 A

Rated voltage

230 V

Installed at the factory

No

Width in number of modular spacings

0.5

Additional equipment

Auxiliary switch

Voltage type for actuating

AC

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

2

Suitable for max. current main contact unit

4 A

Country of origin

Serbia

HS Code

8536.50

• EAN 4015082484330
• SAP 1000086551
• Code 8865176
