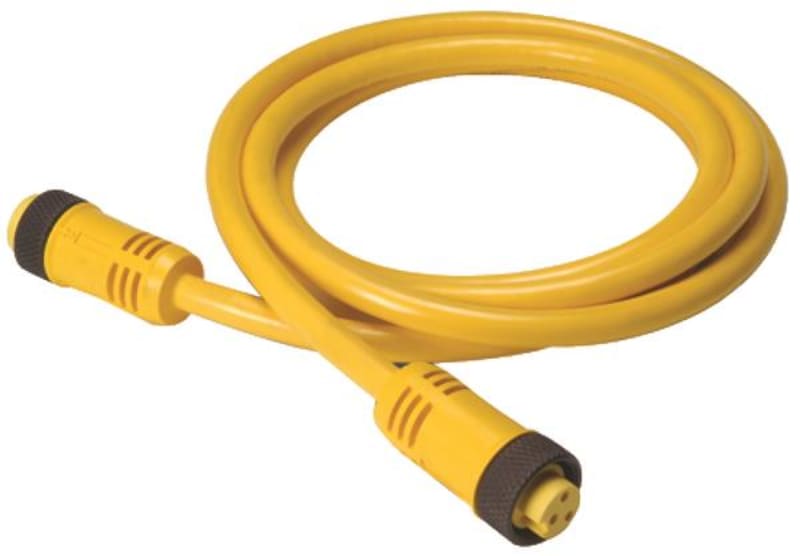

Eaton Connecting Cable, 4-Pole, DC, M12 Straight Coupling to Straight Plug, 3 m
Part numberCSDS4A4CY2203-DEAN / GTIN4015081330812HS code8544.49
Cables & Wiring
Sensor Cables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton CSDS4A4CY2203-D Connection Cable, 4p, DC current, connection M12 flat, plug M12 flat, L=3m.
Technical Specifications
- Manufacturer part number (MPN)
- CSDS4A4CY2203-D
- EAN / GTIN
- 4015081330812
- Sales unit
- pcs
- Eaton catalogue number
- 136293
- Depth
- 177.8 mm
- Height
- 25.4 mm
- Width
- 152.4 mm
- Weight
- 0.27 kg
- Certifications
- CE
- Type
- Connecting cables
- Number of poles
- Four-pole
- Cable type
- Multi-core; Coupling, straight, Input side; Plug, straight, Output side
- Contact surface material
- Other
- Product category
- Accessories
- Voltage type
- DC
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Cable length
- 3 m
- Cable sheath material
- Other
- Degree of protection
- Other
- Color cable sheath
- Yellow
- Electrical connection type (box-sided)
- M12
- Electrical connection type (field-sided)
- M12
- Contact body material
- Other
- Permitted temperature of outer cable (assembling/handling) - max
- 70 °C
- Permitted temperature of outer cable (assembling/handling) - min
- 40 °C
- Plug-in contact type (box-sided)
- Male (plug)
- Plug-in contact type (field-sided)
- Female (bus)
- Positioning cable feed (box-sided)
- Straight
- Positioning cable feed (field-sided)
- Straight
- Type of plug-in contact, box-sided
- Male (plug)
- Halogen free
- No
- Screened
- No
- Permitted cable outer temperature during assembling/handling
- 40–70 °C
- Vulcanized
- No
- Type of electrical connection, box-sided
- M12
- Type of electrical connection, field-sided
- M12
- Positioning cable feed, box-sided
- Straight
- Positioning cable feed, field-sided
- Straight
- With LED indication
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 4015081330812
- SAP 1200303947
- Code 82279963
Product Documentation
Document preview: Tilconnectionscable, — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton EMS2-XBR-T-2 Three-Phase Current Connector with Plug for EMS2
Eaton

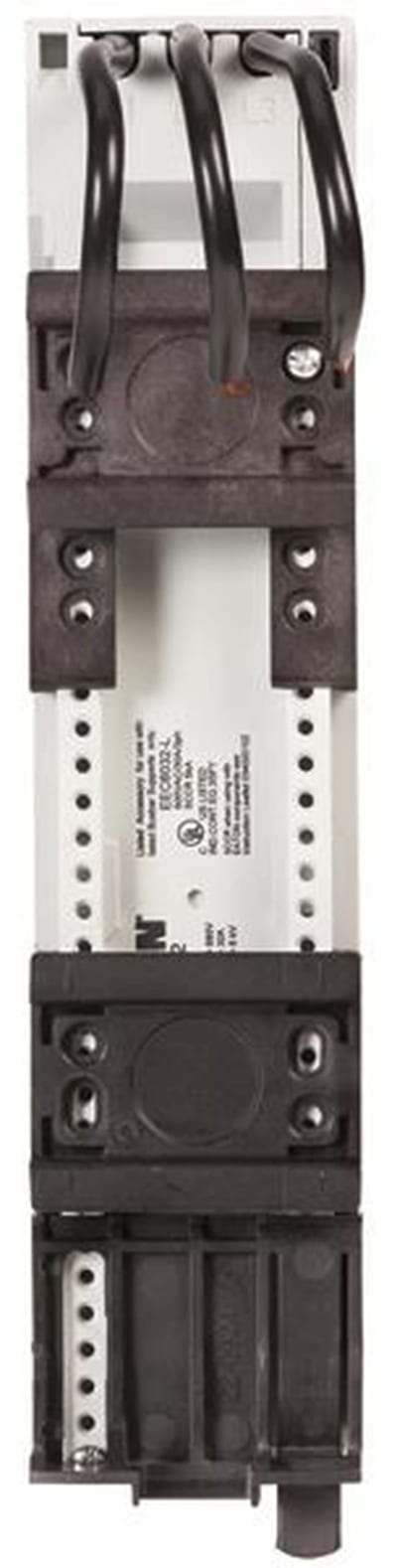

Busbaradapter (BBA0-32)
Eaton

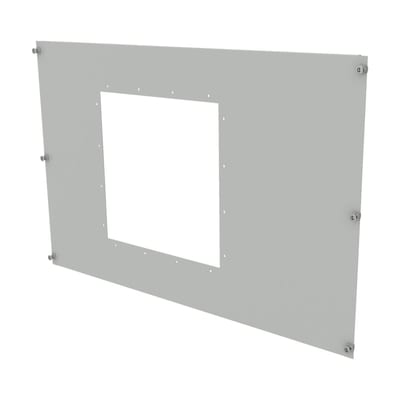

Front plate IZMX40F xVTL H600 B1000 xEB
EP-502510
Eaton

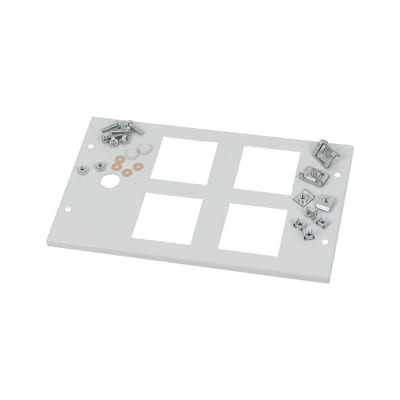

Front plate 4 x 72X72 +1S xE M H200 B425
XME0804CM
Eaton

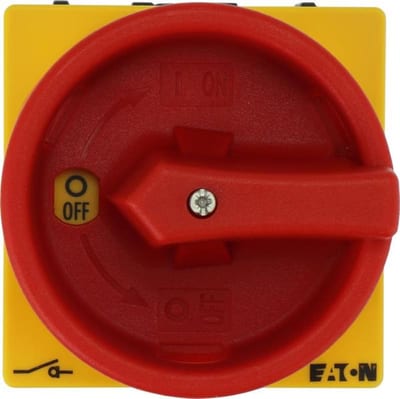

Safety Switch,P1-40/V/SVB
Eaton

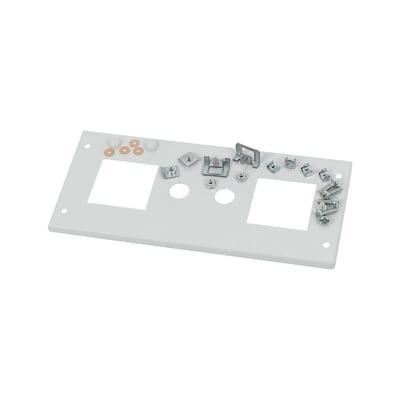

Front plate 2 x 72X72 +2S xE M H150 B425
XME0604CM
Eaton

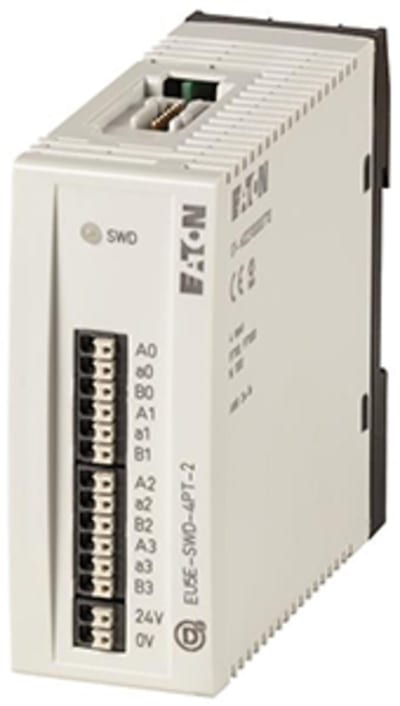

Input module temperature
172560
Eaton

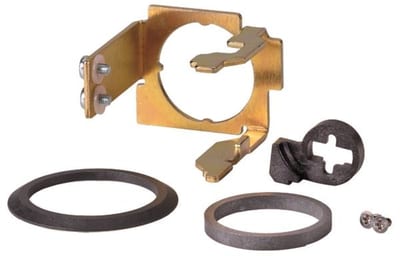

Eaton IZMX-KLP-SO-CASTELL-1
