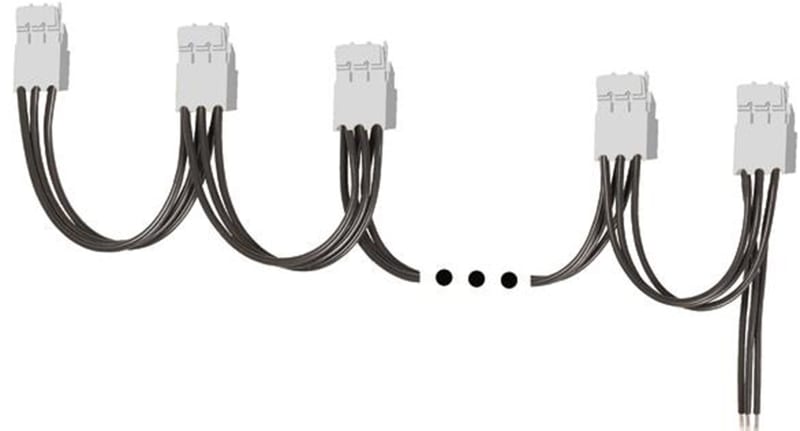

Eaton EMS2-XBR-T-2 Three-Phase Current Connector with Plug for EMS2

Eaton EMS2-XBR-T-2 is a three-phase current connector with plug for EMS2 electronic motor starters, capable of linking two devices via push-in terminals with a 2.5 mm2 conductor cross-section. Rated operational current is 25 A, three-pole, over an ambient range of -25 to 70 degC. Body dimensions are 22.5 mm wide by 114.5 mm high by 114.5 mm deep with a 0.167 kg weight. Certifications include UL 60947-4-1, CSA C22.2 No. 60947-4-1-14 and CE. Country of origin is Germany.

Manufacturer part number (MPN)

EMS2-XBR-T-2

EAN / GTIN

4015080896173

Sales unit

pcs

Eaton catalogue number

197176

Depth

114.5 mm

Height

114.5 mm

Width

22.5 mm

Weight

0.167 kg

Certifications

UL 60947-4-1; CSA-C22.2 No. 60947-4-1-14; CE marking; UL Category Control No.: NLDX

NLDX7; UL File No.

E338590; UL Listed; Certified by UL for use in Canada; UL report applies to both US and Canada

Catalog Notes

Conductor cross-section: 2.5 mm²

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Rated operational current for specified heat dissipation (In)

25 A

Number of poles

Three-pole

Accessory/spare part type

Connecting cable

Connection type

Push in terminals

Product category

Accessories Electronic motor starter

Type

Three-phase current connector with plug

Used with

2 devices can be connected

Type of accessory/spare part

Connecting cable

Accessory

Yes

Spare part

No

Country of origin

Germany

HS Code

8544.49

• EAN 4015080896173
• SAP 1200527031
• Code 82936430
