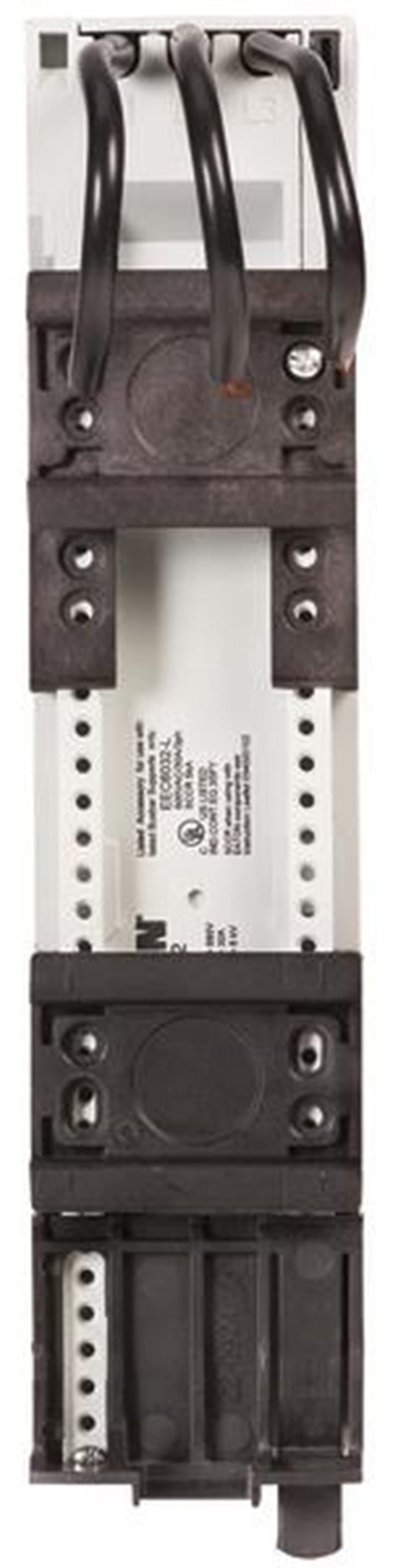

Busbaradapter (BBA0-32)

Eaton Busbaradapter (BBA0-32) is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 4 pcs; Eaton catalogue number: 101452; Depth: 200 mm; Height: 73 mm; Width: 45 mm.

Manufacturer part number (MPN)

BBA0-32

EAN / GTIN

4015081013722

Sales unit

pcs

Package quantity

4 pcs

Eaton catalogue number

101452

Depth

200 mm

Height

73 mm

Width

45 mm

Weight

0.295 kg

Certifications

IEC60439-1; CE; Certified by UL for use in Canada; CSA-C22.2 No. 14; UL 508A; UL; UL Category Control No.: NMTR; NMTR7; UL File No.: E300273

Special features

Terminal capacity: 6 mm² (AWG 10)

Nominal current

32 A

Type

Busbar adapter SASY Busbar system 60 mm

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent Pvid

2.4 W

Electric connection type

3 conductors AWG 10

Rated operation current (Ie)

32 A

Voltage rating (UL CSA 13)

600 V AC, UL/CSA

Voltage rating at AC

690 V

Adapter width

45 mm

Busbar distance

60 mm

Busbar thickness - max

10 mm

Busbar thickness - min

5 mm

Mounting rail armament

2 mounting rails

Number of DIN rails

2

Rail width

35 mm

Type of electric connection

3 conductors AWG 10

Rated current In

32 A

Min. busbar thickness

5 mm

Max. busbar thickness

10 mm

Width of the adaptor

45 mm

Country of origin

Germany

HS Code

8536.90

• EAN 4015081013722
• SAP 1000683426
• Code 8388691
