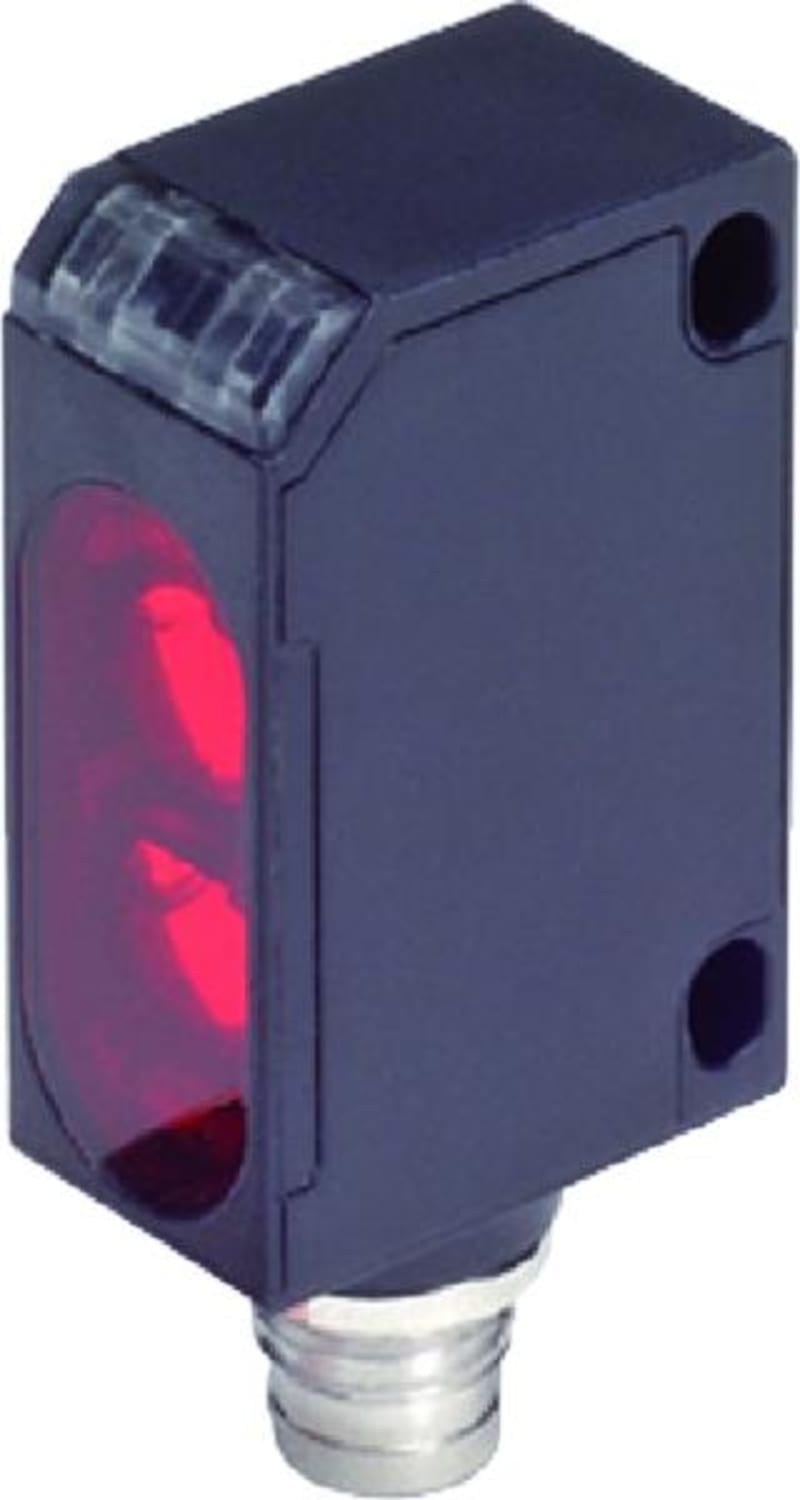

Area switch E71-FFDP-M8

Eaton E71-FFDP-M8 Area switch, optical range 10cm, 4L, 10-30VDC, PNP, M8.

Manufacturer part number (MPN)

E71-FFDP-M8

EAN / GTIN

4015081643271

Sales unit

pcs

Eaton catalogue number

100518

Depth

536.45 mm

Height

9.91 mm

Width

9.91 mm

Weight

0.09 kg

Certifications

UL 508; UL; UL Category Control No.: NRKH

NRKH7; IEC/EN 60947-5-2; CE; CSA-C22.2 No. 14; UL File No.

E166051; Certified by UL for use in Canada; CSA File No.: UL report applies to both US and Canada

Type

Optical sensors

Features

Focused, forward viewing beam

Electric connection type

Connector M8

Enclosure material

Plastic

Enclosure type

Cuboid

Operating mode

Switching principle: Adjustable bright/dark switching

Explosion safety category for dust

None

Explosion safety category for gas

None

Functions

Protection against polarity reversal; Short-circuit protection; Reflected-light beam

Voltage type

DC

Wire size

0

Connection type

Plug-in connection M8 x 1; 4-wire

Cable sheath material

Other

Light type

Polarity free red light; Visible red light

Degree of protection

IP67; NEMA 4

Interface type

Other

LED indicator

Status indication of Switching state: Yellow LED; Status indication of Operating voltage: Green LED

Switch function type

Other

Load current

Max. 100 mA (Ie)

Laser protection class

None

Operation agent-safety class

Safety class 2

Shock resistance

30 g, Mechanical, Shock duration 11 ms

Optical surface material

Plastic

Output current (mA) - max

100 mA

Rated control supply voltage (Us) at DC - max

30 V

Rated control supply voltage (Us) at DC - min

10 V

Rated switching distance (Sn)

100 mm

Sensor height

32 mm

Sensor length

20 mm

Switching distance - max

100 mm

Switching voltage of OSSD at state high

30 V

Voltage rating - max

30 V

Safety type (IEC 61496-1)

1

Switching frequency

500 Hz

Sensing mode

Light-/dark switching

Switching output type

PNP

Sensor material

Insulated material

Vibration resistance

10 - 55 Hz, Amplitude 0.5 mm; According to IEC/EN 60068-2-6

Wavelength of the sensor

660 nm

Width sensor

12 mm

Product category

E71 NanoView Series

Response time

1 ms

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - max

70 °C

Ambient storage temperature - min

-25 °C

Number of contact energized outputs with signalling function

0

Number of outputs (protected contact energized)

0

Number of outputs (protected semiconductor)

0

Number of outputs (semiconductor with signaling function)

1

Operating distance - max

100 mm

Operating temperature - max

55 °C

Operating temperature - min

-25 °C

Adjustment type

Manual adjustment

Max. output current

100 mA

Housing material

Plastic

Suitable for safety functions

No

Ambient temperature

25–55 °C

With time function

No

With reflector

No

Number of semiconductor outputs with signalling function

1

Type of electric connection

Connector M8

Type of switching output

PNP

Rated control supply voltage DC

10–30 V

Construction type housing

Cuboid

Type of light

Polarity free red light

With monitoring function downstream switching devices

No

With restart blockage

No

Type of safety according to IEC 61496-1

1

Operating distance

0–100 mm

Pre failure notice

No

Material of optical surface

Plastic

Analogue output 0 V ... 10 V

No

Analogue output 0 mA ... 20 mA

No

Analogue output -10 V ... +10 V

No

Analogue output 4 mA ... 20 mA

No

Height of sensor

32 mm

With communication interface analogue

No

With communication interface AS-Interface

No

With communication interface CANOpen

No

With communication interface DeviceNet

No

With communication interface Ethernet

No

With communication interface INTERBUS

No

With communication interface PROFIBUS

No

With communication interface RS-232

No

With communication interface RS-422

No

With communication interface RS-485

No

With communication interface SSD

No

Min. reflector distance

0 mm

With communication interface SSI

No

Length of sensor

20 mm

Max. switching distance

100 mm

With other analogue output

No

Country of origin

Italy

HS Code

8536.50
