Eaton

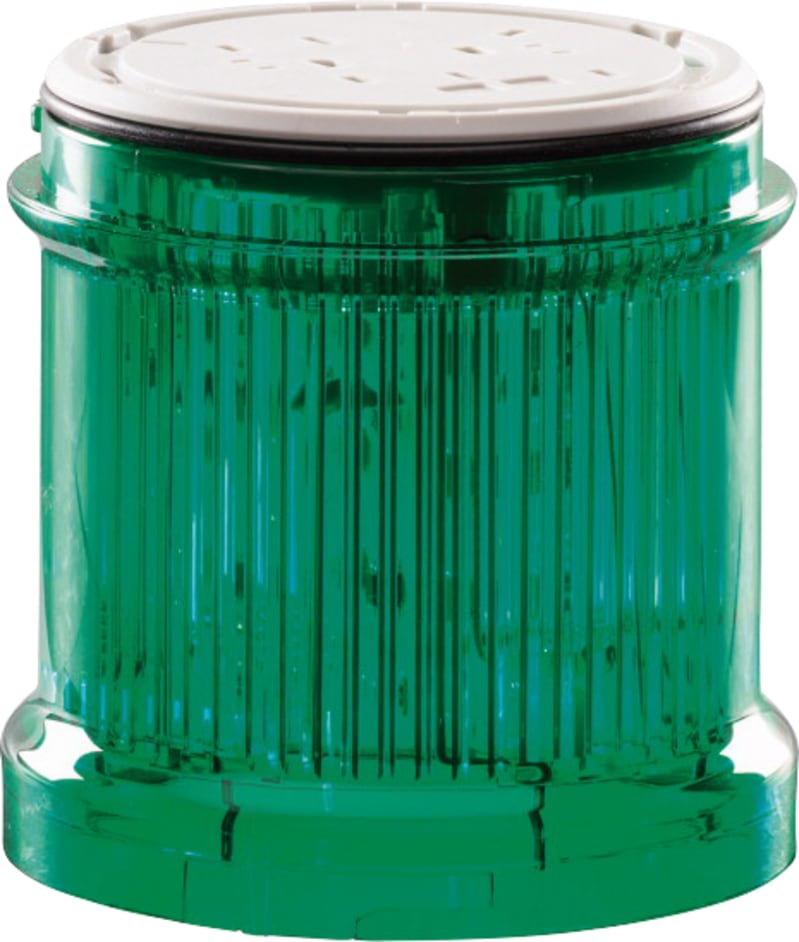

LED Steady light, Green, 24V, HP
Part numberSL7-L24-G-HPEAN / GTIN4015081677603HS code8531.80
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton LED Steady light, Green, 24V, HP (part number SL7-L24-G-HP) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 171428; Depth: 73 mm; Height: 73 mm; Width: 73 mm; Weight: 0.088 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL7-L24-G-HP
- EAN / GTIN
- 4015081677603
- Sales unit
- pcs
- Eaton catalogue number
- 171428
- Depth
- 73 mm
- Height
- 73 mm
- Width
- 73 mm
- Weight
- 0.088 kg
- Certifications
- Certified by UL for use in Canada; CSA-C22.2 No. 94-91; UL; CSA-C22.2 No. 14-10; UL 508; UL report applies to both US and Canada; CSA Class No.: NKCR7; CE; UL File No.: E29184; IEC/EN 60947-5-1; UL Category Control No.: NKCR; IEC/EN 60529
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Leakage current
- 0.003 A
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage (Ue) at AC - max
- 26 V
- Rated operational voltage (Ue) at AC - min
- 18 V
- Rated operational voltage (Ue) at DC - max
- 30 V
- Rated operational voltage (Ue) at DC - min
- 18 V
- Color
- Green
- Enclosure color
- Black
- Functions
- Continuous light
- Light modules
- High Performance LED
- Number of modules
- Max. 5 (with standard base); Max. 10 (with base for mounting on both sides)
- Connection to SmartWire-DT
- No
- Current consumption
- 50 mA at 24 V AC/DC
- Degree of protection
- IP66; NEMA 4X
- Lifespan, electrical
- 50,000 h
- Light type
- Continuous light
- Material
- Cap: Polycarbonate (PC); Enclosure: Polycarbonate (PC)
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Radiation angle
- 360 °
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27
- Type
- Continuous light module High-performance LED for maximum signaling effect
- Voltage type
- AC/DC
- Colour
- Green
- Outer diameter
- 73 mm
- Housing colour
- Black
- Lamp type
- LED
- Operating voltage AC 50 Hz
- 18–26 V
- Operating voltage AC 60 Hz
- 18–26 V
- Operating voltage DC
- 18–30 V
- Repetition frequency settable
- No
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081677603
- SAP 1000492293
- Code 8605745
Product Documentation
Document preview: LED Konst.Lys, Green, 24V, HP (SL7-L24-G-HP) — Specification Data Sheet (OEM)
More from Eaton
Eaton
DIN-sk meter panel 3M MSW H425 B1200 xEB
2457643
Eaton
Potentiometer, Flat Front (M30C-FR22K)
Eaton
Cover 4P (NZM2-XAVPR)
Eaton

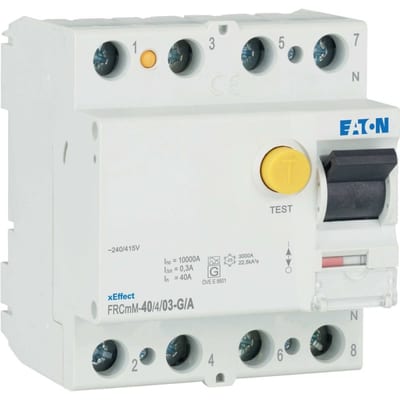

Eaton FRCMM-40/4/03-G/A (170304)
Eaton

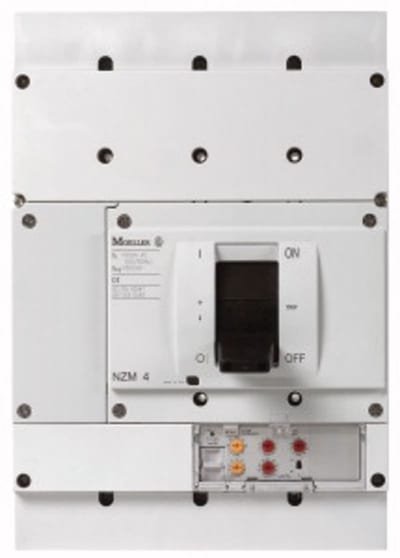

Eaton NZMN4-4-VE1000 Molded-Case Circuit Breaker 4-Pole 1000A 50KA
Eaton
EMC, DA1, FS8, 3 ~ 520 V, 400A (DX-EMC34-400)
Eaton
Optical sensor 13106AQD07
Eaton

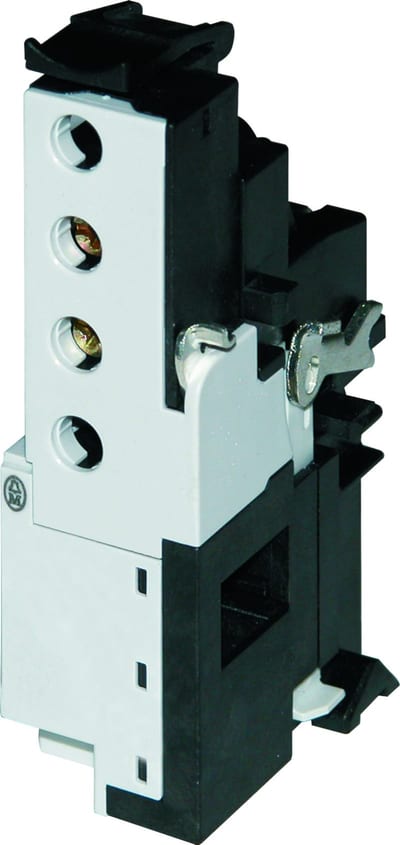

UNDERVOLTAGE.UTL. NZM2/3-XU24DC
