Eaton

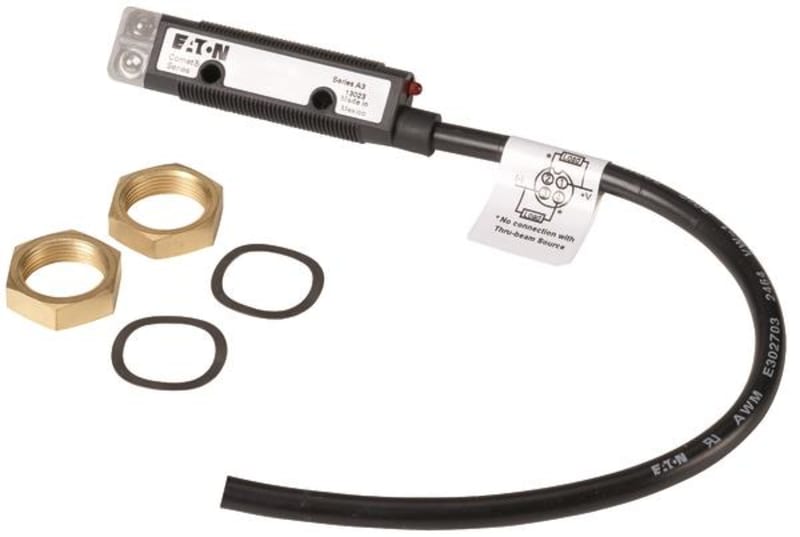

Optical sensor 13106AQD07
Part number13106AQD07EAN / GTIN4015081324149HS code8536.90
Sensors & Instrumentation
Photoelectric Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 13106AQD07 Optical sensor, Sn=200mm, 4L, 10-30VDC, NPN, PNP, M18, M12.
Technical Specifications
- Manufacturer part number (MPN)
- 13106AQD07
- EAN / GTIN
- 4015081324149
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 135621
- Depth
- 158.75 mm
- Height
- 50.8 mm
- Width
- 133.35 mm
- Weight
- 0.32 kg
- Certifications
- CSA Class No.: 3211-07; CSA File No.: 50513; CSA; UL; IEC/EN 60947-5-2; UL File No.: E117028; CE; UL 508; UL Category Control No.: NRKH, NRKH7; CSA-C22.2 No. 14
- Type
- Optical sensors
- Features
- Straight beam
- Electric connection type
- Plug-in connection
- Enclosure material
- Plastic
- Enclosure type
- Cylinder, screw-thread
- Operating mode
- Switching principle: Adjustable bright/dark switching
- Explosion safety category for dust
- None
- Explosion safety category for gas
- None
- Functions
- Short-circuit protection; Reflected-light beam; Protection against polarity reversal
- Voltage type
- DC
- Wire size
- 22
- Connection type
- 4-wire; Plug-in connection M12 x 1
- Cable sheath material
- Polyvinyl chloride (PVC)
- Light type
- Infrared light
- Degree of protection
- IP67; NEMA 6
- Interface type
- Other
- LED indicator
- Status indication of Switching state: Red LED
- Switch function type
- Other
- Load current
- Max. 250 mA (Ie, NPN, 120 > 50°C); Max. 100 mA (Ie, PNP)
- Laser protection class
- None
- Operation agent-safety class
- Safety class 2
- Shock resistance
- 100 g, Mechanical, Shock duration 3 ms
- Optical surface material
- Plastic
- Output current (mA) - max
- 250 mA
- Rated control supply voltage (Us) at DC - max
- 30 V
- Rated control supply voltage (Us) at DC - min
- 10 V
- Rated switching distance (Sn)
- 200 mm
- Sensor length
- 56 mm
- Switching distance - max
- 200 mm
- Voltage rating - max
- 30 V
- Safety type (IEC 61496-1)
- 1
- Switching frequency
- 500 Hz
- Sensing mode
- Light-/dark switching
- Switching output type
- PNP
- Sensor material
- Insulated material
- Accessories
- Can be expanded with fibre optic cable.
- Product category
- Comet Series
- Response time
- 1 ms
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -40 °C
- Diameter sensor
- 18 mm
- Number of contact energized outputs with signalling function
- 0
- Number of outputs (protected contact energized)
- 0
- Number of outputs (protected semiconductor)
- 0
- Number of outputs (semiconductor with signaling function)
- 2
- Operational current (Ib) in the switched state at 24 V DC
- 30 A
- Adjustment type
- Manual adjustment
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081324149
- SAP 1200606836
- Code 82994648
Product Documentation
Document preview: Optisk sensor, — Specification Data Sheet (OEM)
More from Eaton
Eaton
UNDERVOLTAGE.UTL. NZM2/3-XU24DC
Eaton

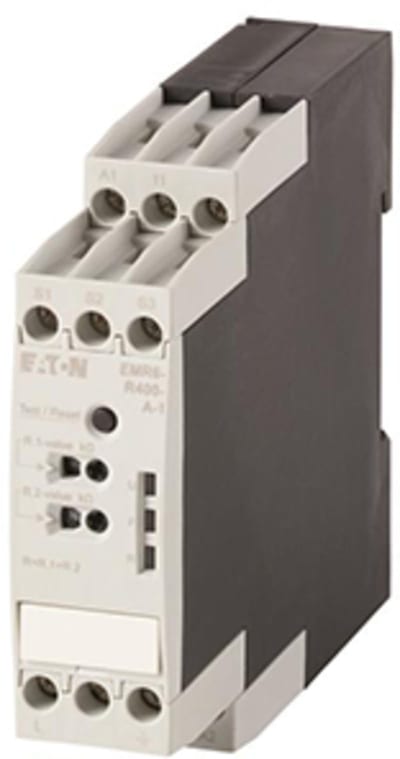

Isolasjons relay (EMR6-R400-A-1)
Eaton

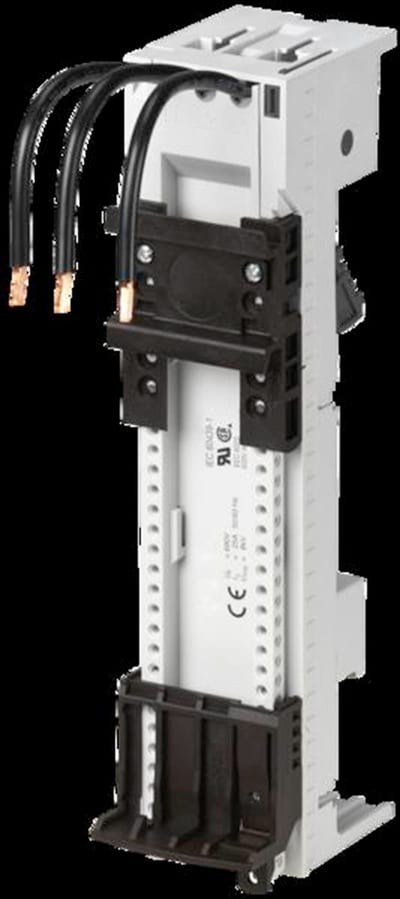

Busbaradapter (BBA0-25)
Eaton

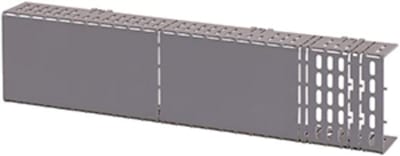

Cover NZM4 3P xE Light
XLPTP43
Eaton
Pressure Switch 0,4-22 BAR 1P 1V
MCS22
Eaton
coverfeste for CI enclosure short
DV125-CI
Eaton

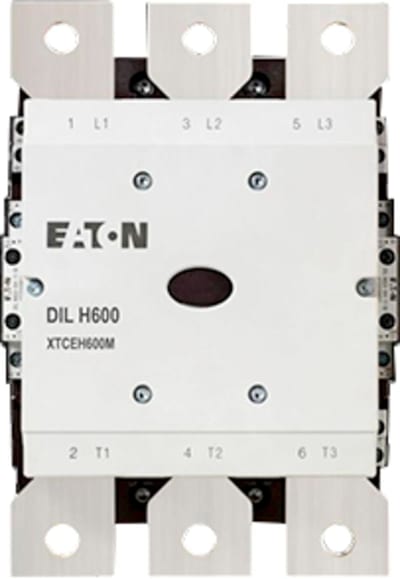

Contactor,DILH600/22(RA250) (197905)
