Eaton

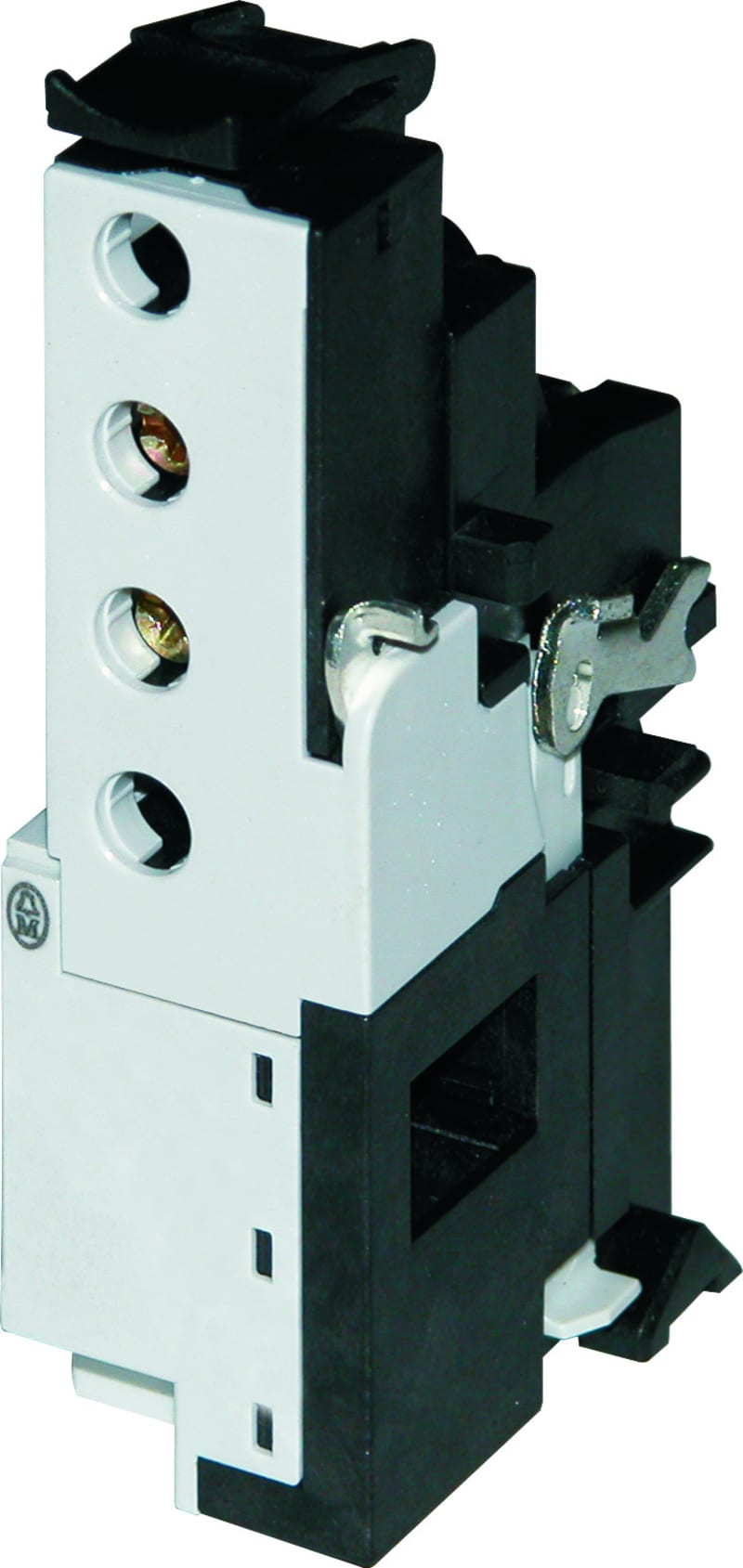

UNDERVOLTAGE.UTL. NZM2/3-XU24DC
Part numberNZM2/3-XU24DCEAN / GTIN4015082595098HS code8538.90
Electrical Components
Circuit Breaker Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZM2/3-XU24DC Nzm2/3-Xu24DC Undervoltage release.
Technical Specifications
- Manufacturer part number (MPN)
- NZM2/3-XU24DC EAN / GTIN: 4015082595098 Sales unit: pcs Eaton catalogue number: 259509 Depth: 42 mm Height: 90 mm Width: 30 mm Weight: 0.093 kg Compliances: IEC; UL/CSA; RoHS conform Certifications: IEC60947; UL listed; CE marking; UL (File No. E140305); UL (Category Control Number DIHS); CSA (Class No. 1437-01); CSA (File No. 22086); CSA certified; UL489; CSA-C22.2 No. 5-09 Frame: NZM2/3 Suitable for: Off-load switch Type: Accessory Undervoltage release Used with: NZM2(-4), N(S)2(-4); NZM3(-4), N(S)3(-4) Drop-out voltage of undervoltage release AC/DC - max: 0.7 x Us Drop-out voltage of undervoltage release AC/DC - min: 0.35 x Us Electric connection type: Screw connection minimum command time - max: 15 ms minimum command time - min: 10 ms Pick-up power consumption at AC (undervoltage release): 1.5 VA Pick-up power consumption at DC (undervoltage release): 0.8 W Power consumption: 1.5 VA (AC); 0.8 W (DC) Rated control supply voltage: 24 V DC Rated control supply voltage (Us) at DC - max: 24 V Rated control supply voltage (Us) at DC - min: 24 V Rated control voltage (relay contacts): 24 V DC Reaction time: 19 ms Voltage tolerance - max: 1.1 Voltage tolerance - min: 0.85 Voltage type: DC Connection type: With bolt connection Number of contacts (change-over contacts): 0 Number of contacts (normally closed contacts): 0 Number of contacts (normally open contacts): 0 Delayed: No Suitable for off-load switch: Yes Suitable for overload relay: No Type of electric connection: Screw connection Rated control supply voltage DC: 24 V Suitable for motor safety switch: No Suitable for power circuit breaker: No Voltage type for actuating: AC Country of origin: Romania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082595098
- SAP 1000077967
- Code 8568990
Product Documentation
Document preview: UNDERSP.UTL. — Specification Data Sheet (OEM)
