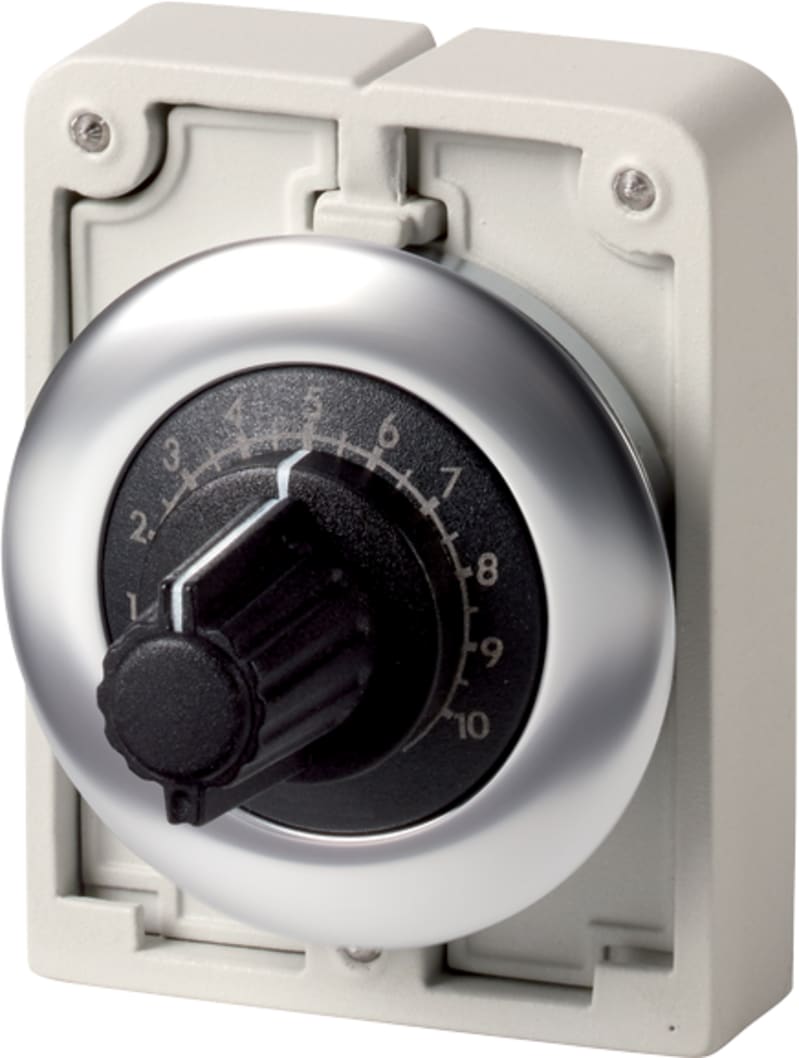

Potentiometer, Flat Front (M30C-FR22K)

Eaton Potentiometer, Flat Front (M30C-FR22K) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 187036; Depth: 36 mm; Height: 63 mm; Width: 46 mm; Weight: 0.055 kg.

Manufacturer part number (MPN)

M30C-FR22K

EAN / GTIN

4015081821020

Sales unit

pcs

Eaton catalogue number

187036

Depth

36 mm

Height

63 mm

Width

46 mm

Weight

0.055 kg

Certifications

IEC/EN 60947; VDE 0660

Bezel color

Titanium

Design

Flat front

Electric connection type

Screw connection

Fitted with

3 individual screw terminals

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

No

Static heat dissipation, non-current-dependent Pvs

0.5 W

Power consumption

0.5 W

Rated insulation voltage (Ui)

250 V

Rated power

0.5 VA

Resistance

22000 Ohm

Degree of protection

IP66; NEMA Other

Lifespan, mechanical

25,000 Operations

Mounting position

As required

Opening diameter

30 mm

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp)

4000 V AC

Type

Potentiometer

Terminal capacity (solid)

0.5 - 1.5 mm²

Terminal capacity (stranded)

0.5 - 1.5 mm²

Tightening torque

0.5 Nm, Screw terminals

Hole diameter

30 mm

Type of electric connection

Screw connection

Number of revolutions

1

Country of origin

Germany

HS Code

8533.40
