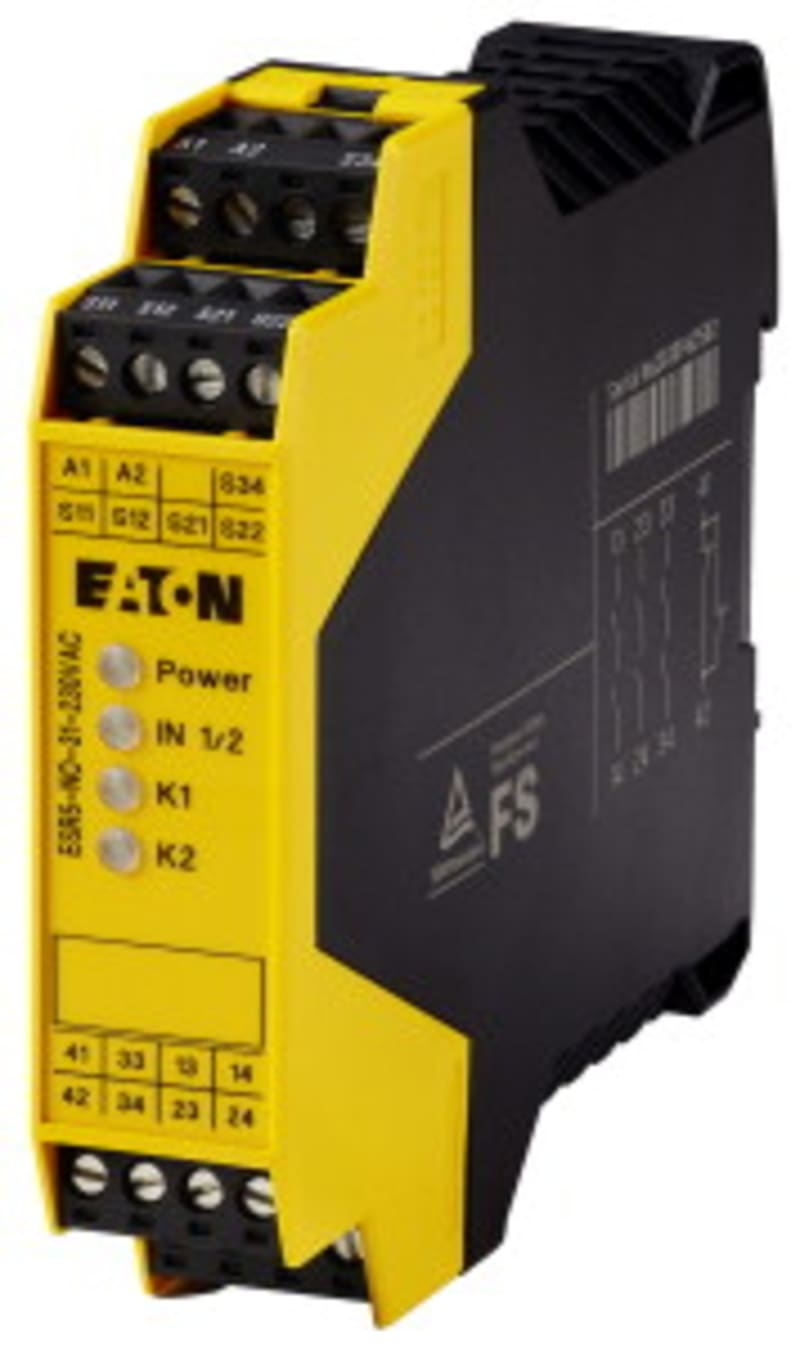

Safety Relay ESR5-NO-31-230VAC

Eaton ESR5-NO-31-230VAC Control voltage 230VAC 50,60 Hz.

Manufacturer part number (MPN)

ESR5-NO-31-230VAC

EAN / GTIN

4015081175062

Sales unit

pcs

Eaton catalogue number

119380

Depth

114.5 mm

Height

99 mm

Width

22.5 mm

Weight

0.181 kg

Mounting position

As required

Prooftest

240 Months (High Demand); 78 Months (Low Demand)

Switching capacity

In accordance with IEC 60947-5-1, Outputs; 0.1 W; 5 A at 360 O/h, AC-15 at 230 V, Outputs; 5 A at 360 O/h, DC-13 at 24 V, Outputs

Vibration resistance

10 - 150 Hz

Amplitude

0.15 mm

Acceleration

2 g, (IEC/EN 60068-2-6)

Air pressure

795 - 1080 hPa (operation)

Altitude

Max. 2000 m

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

-20 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-3; Dry heat to IEC 60068-2-2

Environmental conditions

Clearance in air and creepage distances according to EN 50178, UL 508, CSA C22.2

No. 14-95; Condensation

Non-condensing

Operating temperature - max

55 °C

Operating temperature - min

-20 °C

Relative humidity

< 75 %

Static heat dissipation, non-current-dependent Pvs

5.43 W

Inrush current

0.1 - 6 A

Power supply circuit

2.9 W (DC operated); 5.8 W (AC operated 50/60 Hz)

Rated control supply voltage (Us) at AC

50 Hz - max

26.4 V

Rated control supply voltage (Us) at AC

Rated control supply voltage (Us) at AC

60 Hz - max

230 V

Rated control supply voltage (Us) at AC

60 Hz - min

20.4 V

Rated insulation voltage (Ui)

250 V

Rated operational voltage

230 V AC (power supply); 230 V AC; Approx. 24 V DC at input, starting and feedback circuit

Short-circuit current

0.7 A, Input data

Short-circuit protection

Fuse 4 A gL/gG (Signal current paths), For output circuits, External; Fuse 10 A gL/gG (Enable current paths), For output circuits, External; Short-circuit proof, 115 V/230 V, Fuse for control circuit supply, Control circuit

Short-circuit protection rating

10A gL/gG, NEOZED (N/O), Output fuse, External, Output data; 6A gL/gG, NEOZED (N/C), Output fuse, External, Output data

Electric connection type

Screw connection

Features

3 Non-delayed enable current paths; Reinforced insulation; Safe insulation; Automatically/manually monitored start; 6 kV between A1-A2 / logic / enable and signal current paths; Basic insulation

Fitted with

Feedback circuit; Approval according to UL; Approval for TÜV; Start input; Detachable clamps

Functions

1-channel; 2-channel

Material

Enclosure: Polyamide (PA), not reinforced; Contacts: silver tin oxide, gold plated (AgSnO2, 0.2 µm Au)

Connection type

M3 screw terminals

Current consumption

22 mA, AC

Degree of protection

Installation location: ≥ IP54; Enclosure: IP20; Terminals: IP20; IP20

Duty factor

100 %

Emitted interference

According to EN 61000-6-4

Interference immunity

According to EN 61000-6-2

LED indicator

Status indication of SmartWire-DT network: Green LED

Lifespan, mechanical

10,000,000 Operations

Model

Basic device

Mounting method

Top-hat rail fixing (according to IEC/EN 60715, 35 mm); Rail mounting possible

Mounting width

22.5 mm

Overvoltage category

III

Pollution degree

2

Power loss

Normally 5.43 W

Product category

Electronic safety relays

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

4000 V AC

Recovery time

1000 ms

Safety parameter (EN ISO 13849-1)

PL e, Performance level; 230,000 switching cycles, B10d; Cat. 4, Category

Safety parameter (IEC 62061)

SILCL 3, Safety integrity level claim limit; SIL 3, Safety integrity level; Cat. 4, Category; SIL 3, Safety integrity level, In accordance with IEC 61508; 1.89 x 10-10, PFHd, Probability of failure per hour

Stop category (IEC 60204)

0

Suitable for

Module used to safely interrupt electrical circuits; Monitoring of position switches; Safety relay for monitoring emergency stop and protective door switch; Monitoring of emergency-stop circuits

Switching frequency

Max. 0.5 Hz, Input data

Type

Emergency stop category 0; emergency switching off Feedback circuit Protective door

Voltage type

AC

Input

∞ ms, Simultaneity for inputs 1/2

Nominal current

35 A

Number of inputs

One- and two-channel

Number of outputs (safety related, delayed) with contact

0

Number of outputs (safety related, undelayed) with contact

3

Number of outputs (signaling function, delayed) with contact

0

Number of outputs (signaling function, undelayed) with contact

1

Permissible total cable resistance

50 Ω (input and starting circuits for UN)

Pick-up time

40 ms typ. (at Uₑ in manual mode); 300 ms typ. (at Uₑ in automatic mode); 40 ms typ. (K1, K2 - for UN manual operation); 300 ms typ. (K1, K2 - for UN automatic mode); 330 ms typ. (if actuated via A1)

Quadratic summation current

72 A² (ITH² = I1² + I2² + I3²)

Reset time

20 ms (two-channel); Normally 150 ms (single-channel)

Resistance

11 Ω (impedance)

Switching voltage

250 V

Uninterrupted current

6 A N/O, Limiting continuous current; 5 A N/C, Limiting continuous current

Screwdriver size

2, Terminal screw, Pozidriv screwdriver; 3.5 x 0.6 mm, Terminal screw

Stripping length (main cable)

7 mm

Terminal capacity

1 x (0.25 – 2.5) mm², flexible with ferrule; 2 x (0.25 – 1) mm², flexible with ferrule; 24 - 12 AWG, solid or stranded; 1 x (0.2 – 2.5) mm², solid; 2 x (0.2 – 1) mm², solid

Tightening torque

0.6 Nm, Screw terminals

Operating voltage AC 50 Hz

230 V

Operating voltage AC 60 Hz

230 V

Power consumption

5.43 W

Supply voltage AC 50 Hz

230 V

Supply voltage AC 60 Hz

230 V

Rated switch current

4 A

Control voltage 1

230 V

Control voltage 2

230 V

Type of control voltage 1

AC

Type of control voltage 2

AC

Suitable for monitoring of position switches

Yes

Suitable for monitoring of emergency-stop circuits

Yes

Suitable for monitoring of valves

No

Suitable for monitoring of tactile sensors

No

Suitable for monitoring of magnetic switches

No

Suitable for monitoring of proximity switches

No

Type of electric connection

Screw connection

Suitable for rail mounting

Yes

Rated control supply voltage AC 50 Hz

0–26.4 V

Voltage type for actuating

AC

With detachable clamps

Yes

Evaluation inputs

One- and two-channel

With start input

Yes

With muting function

No

With feedback circuit

Yes

Number of outputs, safety related, undelayed, with contact

3

Type of safety according to IEC 61496-1

None

Stop category according to IEC 60204

0

Performance level according to EN ISO 13849-1

Level e

SIL according to IEC 61508

3

With approval for BG BIA

No

HS Code

8536.49
