Profibus DP Master (xioc-NET-DP-M)

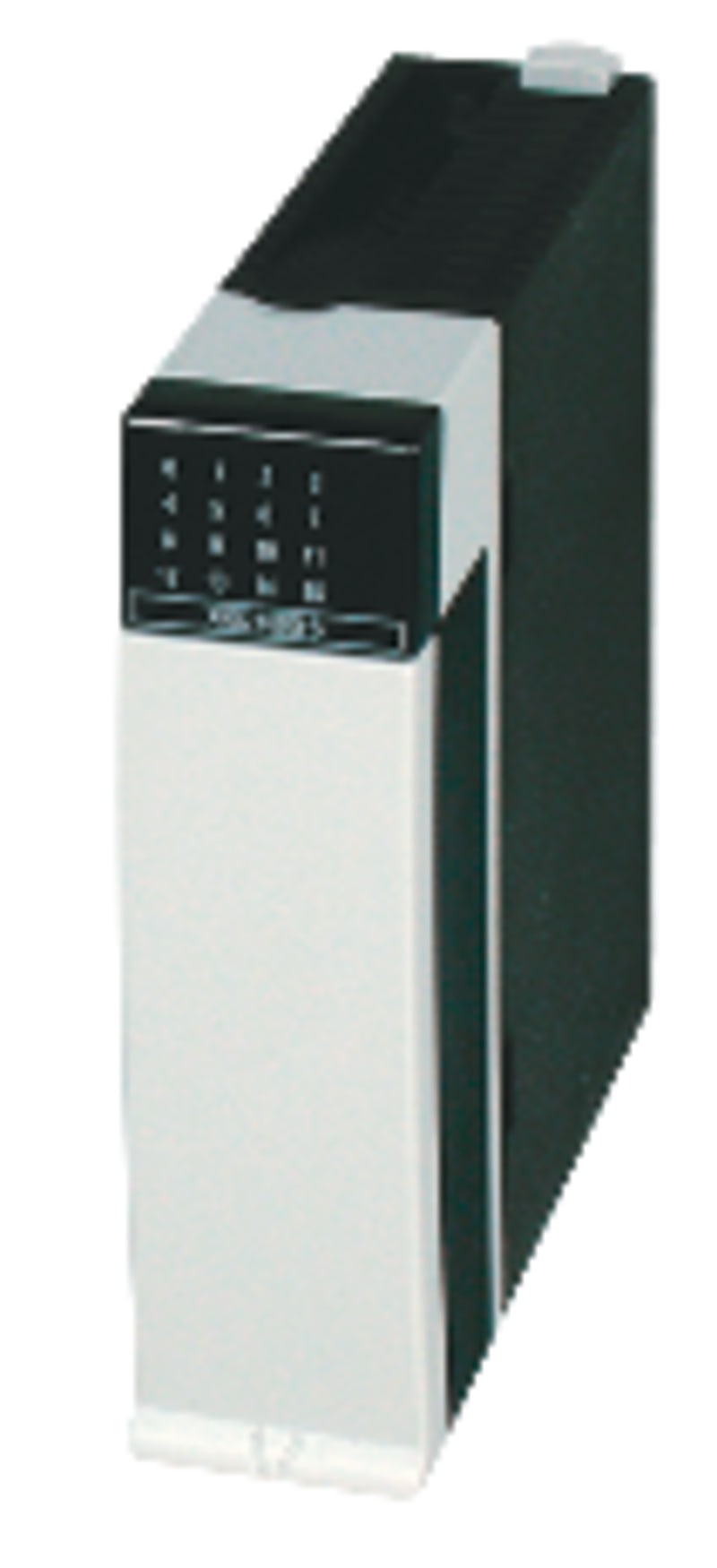

Eaton Profibus DP Master (xioc-NET-DP-M) is listed under Control & Automation / PLCs & Industrial Networking. Sales unit: pcs; Eaton catalogue number: 257908; Depth: 100 mm; Height: 95 mm; Width: 30 mm; Weight: 0.145 kg.

Manufacturer part number (MPN)

XIOC-NET-DP-M

EAN / GTIN

4015082579081

Sales unit

pcs

Eaton catalogue number

257908

Depth

100 mm

Height

95 mm

Width

30 mm

Weight

0.145 kg

Certifications

CSA-C22.2 No. 0-M; CSA-C22.2 No. 142-M; CE; UL; CSA Class No.: 2252-01; IEC/EN 61131-2; UL Category Control No.: NRAQ; EN 50178; CSA; CSA File No.: 012528; UL File No.: E135462; UL508

Shock resistance

15 g, Mechanical, Shock duration 11 ms

Vibration resistance

10 - 57 Hz, ± 0.075 mm; 57 - 150 Hz ± 1.0 mm

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

0 °C

Ambient storage temperature - min

-20 °C

Bus termination

Switchable

Data transfer rate

93.75 kBit/s with 1200 m; 9.6 - 12000 kBit/s; 500 kBit/s with 400 m; 1500 kBit/s with 200 m; Transmit data: 3500 Byte; 9.6 kBit/s with 1200 m; 3000 kBit/s with 100 m; 19.2 kBit/s with 1200 m; 12000 kBit/s with 100 m; 187.5 kBit/s with 1000 m; 6000 kBit/s with 100 m; Receive data: 3500 Bytes

Interfaces

PROFIBUS DP, RS485, EN 50170 (built-in); Max. 244 Bytes per slave (Inputs/outputs)

LED indicator

Status indication of Bus diagnostics: LED

Number of modules

3 (XC200); 124 (slaves); 1 (XC100)

Number of slots

3

Protocol

PROFIBUS

Plug type

9-pole SUB-D socket

Static heat dissipation, non-current-dependent Pvs

7.2 W

Power loss

7.2 W

Rated operational voltage

24 (12) V DC

Supply voltage

20.4 – 28.8 (11.8 – 14.4) V DC, Admissible range, Power supply

Supply voltage at DC - max

5 V

Emitted interference

Class A (according to DIN/EN 55011/22)

Voltage dips

10 ms

Fitted with

Potential separation

Functions

Master (Class 1); PROFIBUS-DP interface

Current consumption

300 mA, Interfaces; 300 mA (Ie), Interfaces

Degree of protection

IP20

Overvoltage category

II

Pollution degree

2

Protection class

1

Repetition rate

1 s

Residual ripple

≤ 5 %

Resistance

500 g/⌀ 50 mm ±25 g (impact resistance)

Type

Communication module PROFIBUS-DP master module

Used with

XC100/200 (expandable with up to 15 XI/OC modules)

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Interfaces: yes

Terminals

Optionally, screw terminals or spring-loaded terminals for digital/analog modules

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Number of HW-interfaces RS-485

1

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

Yes

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Redundancy

No

Type of data transmission

Serial

Transmission rate

12000 kBit/s

With potential separation

Yes

SIL according to IEC 61508

None

Suitable for safety functions

No

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Country of origin

Germany

HS Code

8538.90
